54 AVENTICS | HF03/HF02 | 1987765472–BDL–001–AB
Installation

Mounting on the DIN rail,

DIN EN 60715, 35x15
4.3 Mounting on the DIN rail
The valve system can be mounted on a DIN rail (DIN EN 60715,
35×15). To ensure secure fastening to the DIN rail, a locking
lever is mounted on each end plate (see accessories).
When mounting the locking levers, it is important to
observe the mounting instructions that are included with
the DIN rail kit.
Mount the valve system so that it cannot detach from the
DIN rail when the locking levers are released.
Ensure that enough free space is left for the electrical and
pneumatic connections so that the permissible minimum
bending radii for the cables and tubes are adhered to.
The lever to be mounted on the left is marked by an "L" and the
lever to be mounted on the right is marked by an "R". When
screwing the locking lever on, the O-ring included in delivery
should be used. After placing it on the DIN rail, the two levers are
locked and secured by screws.

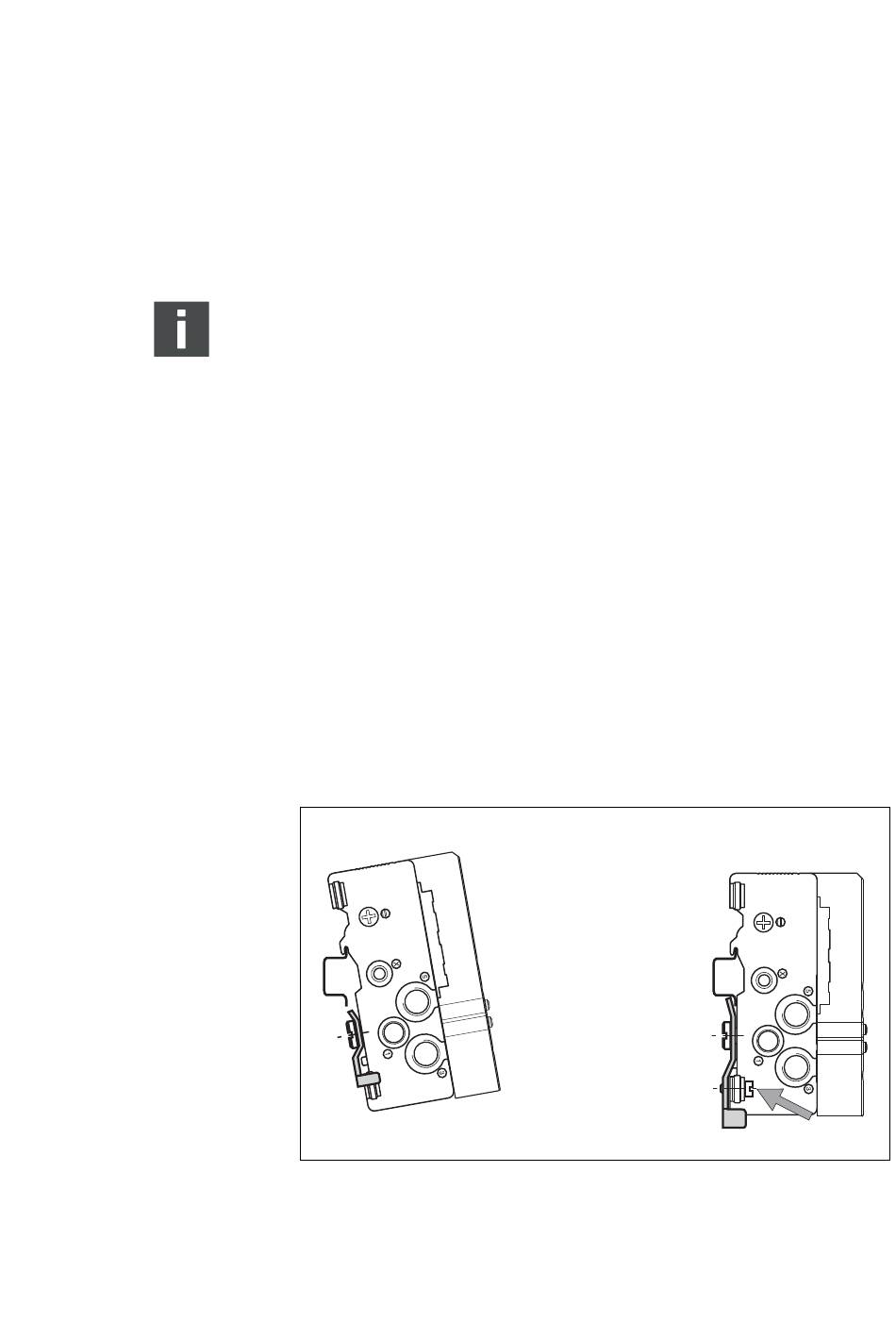

Fig. 5: Hang the valve system into the DIN rail, lock it using locking
levers and secure with screws
