3. After connecting all the modules, close the connection compartment.

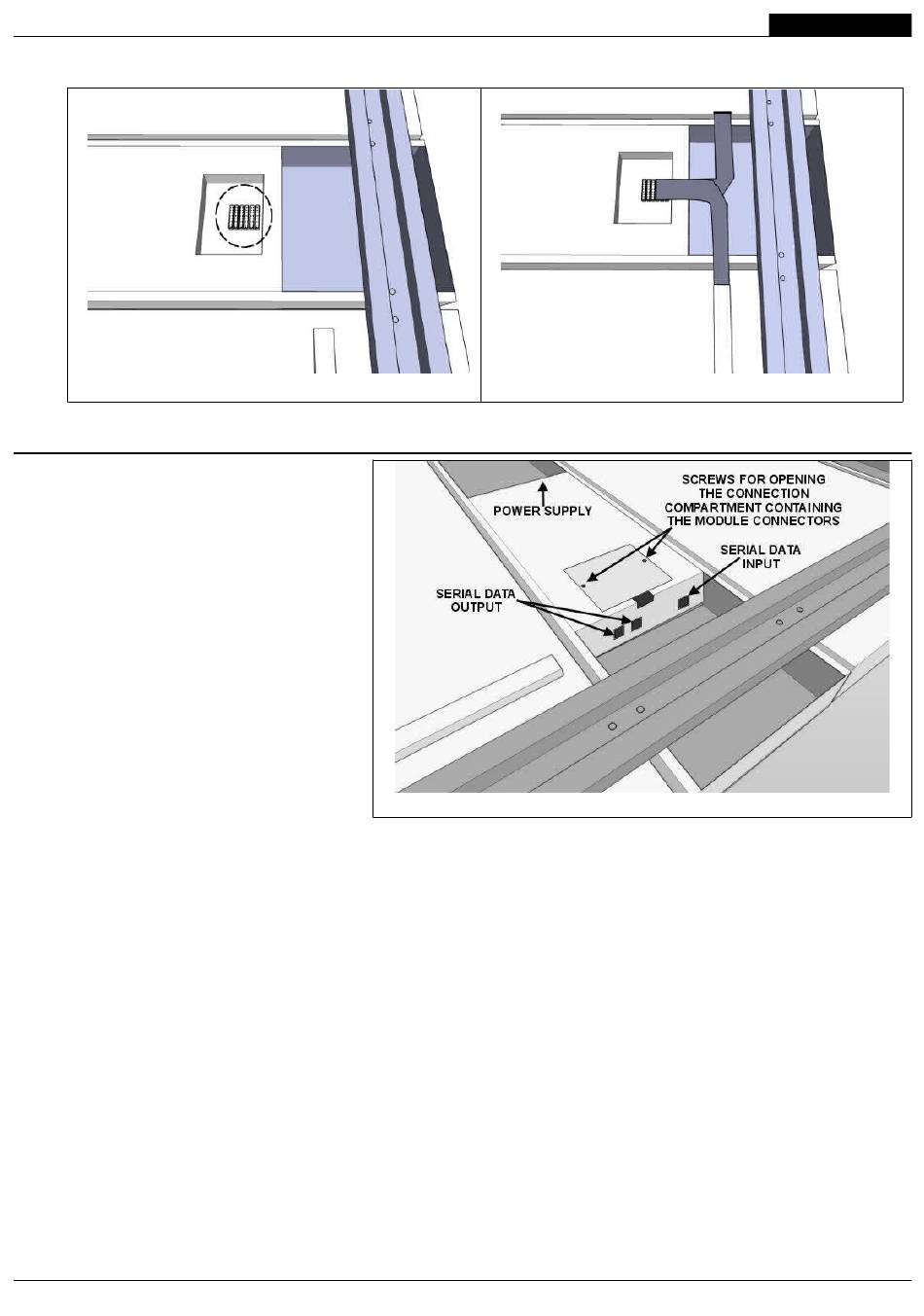

Fig. 3.3: Interior of connection compartment
3.3. Connecting power cords and data cables
The following connectors are found
inside the power supply unit (see Fig.
3.5):
a) "POWER_SUPPLY" socket for the
power cord.
b) "SERIAL_DATA_INPUT"
connecting the serial cable of the
Control Console.
c) Two "SERIAL_DATA_OUTPUT"
ports that redistribute the data
coming from the Console. These
output ports are useful for making
connections to other nearby FS
series boards, as for example, to
sideboards displaying player fouls.
The output ports can also be used
for connecting boards in cascade
which are mounted on an adequate
four-sided support structure and centrally located in a sports facility.
Proceed as follows.
F E S
AVERO LECTRONICS RL
port for
Fig. 3.5:
5 / 56
Fig. 3.4: Connecting cables
Connections for the power cord and serial data cables
00236-M01-03-ML - Series FS-1xx scoreboard installation
