Function
X1.2/K11 Relay output
normally-closed contact
X1.2/K12 Mid position contact
X1.2/K14 Relay output -
normally-open contact
PES HF-screen end by PE connection through screen bracket.
Tip!
l
l
l
L

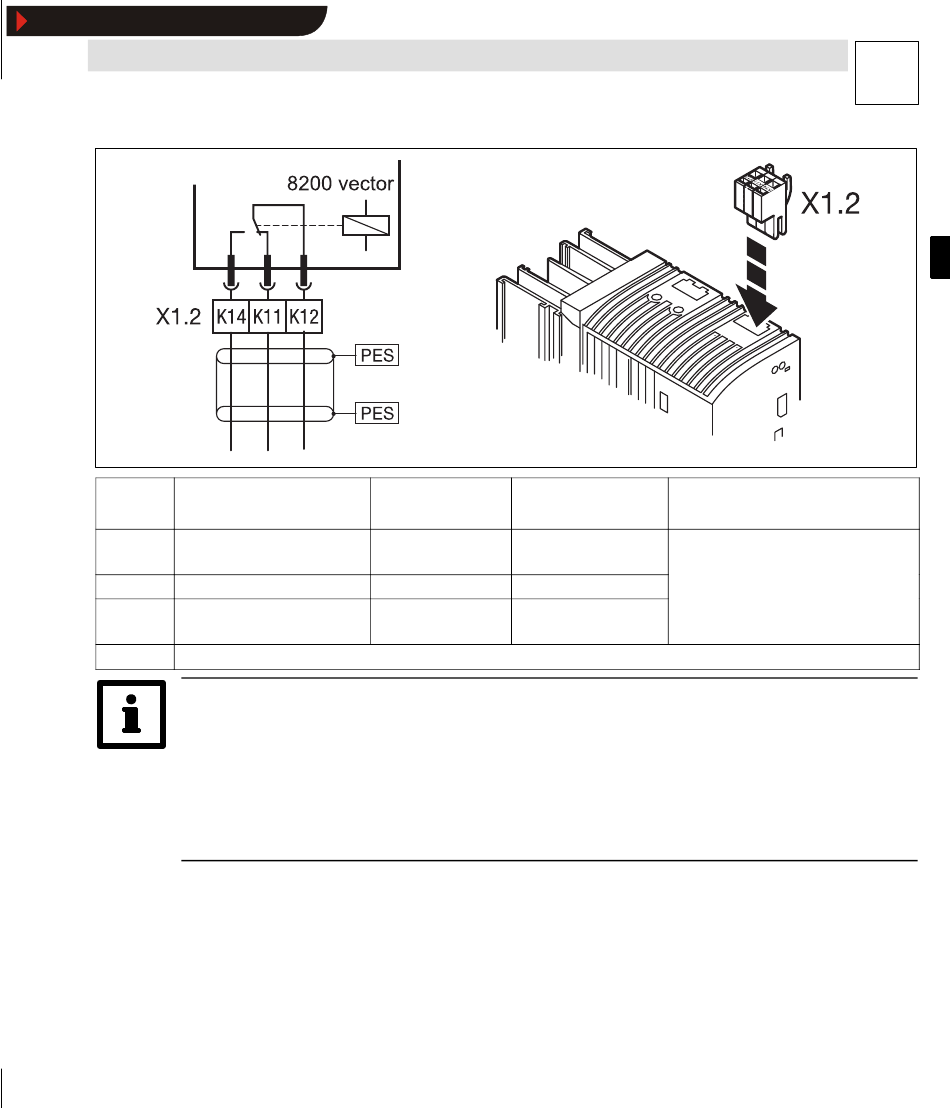

Abb. 1-12
Relay setting
switched
A connection of the relay output is not required for operation!
The output message can be changed under C0008 or C0415/1.
The relay output can also be used to control the holding brake at the motor
(see Operating Instructions).
EDK82EV222 DE/EN/FR 6.0
Electrical installation

Connection of relay output

Message
(Lenze setting)
open TRIP
closed TRIP
8200vec013
Technical data
AC 250 V/3 A AC 250 V/3 A
DC 24 V/2 A ... DC 240 V/0.22 A DC 24 V/2 A DC 240 V/0 22 A
