Key:
1. Handle Lock Lever
2. Handle Assembly
*
3. Lifting Bar
4. Power Cord
5. Control Valve
6. Pendant
7. Electric Motor
8. Reservoir Air Breather
9. Electrical Enclosure,
Single-Phase (with shroud)
10. Circuit Breaker
11. Oil Fill Plug
12. Oil Filter
13. Hydraulic Cylinder
14. Hydraulic Reservoir
15. Oil Drain Plug
*
17. Lifting Eyebolt
18. Wheel Bearing Grease Fitting
19. Tire Air Valve
20. U-Ring Storage Rack
21. Electrical Fuses
*
Not present on all models.

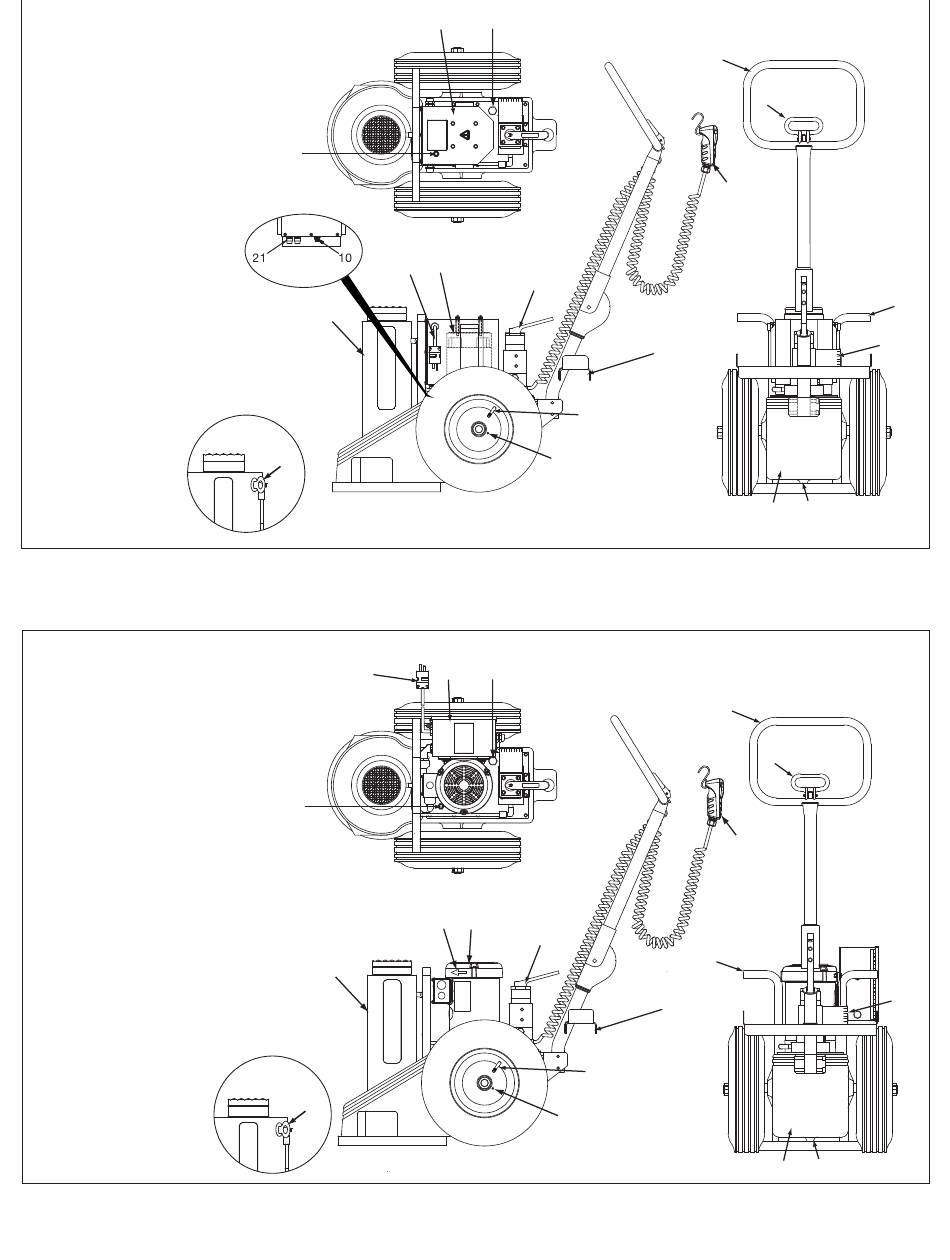

Figure 1, Major Features and Components - PREMB, PREME and PREMI Series (single-phase power)
Key:
1. Handle Lock Lever
2. Handle Assembly
*
3. Lifting Bar
**
4. Power Cord
5. Control Valve
6. Pendant
7. Electric Motor
8. Reservoir Air Breather
10
4
11
11. Oil Fill Plug
9 12
12. Oil Filter
13. Hydraulic Cylinder
14. Hydraulic Reservoir
15. Oil Drain Plug
16. Electrical Enclosure, Three-Phase
RAISE
*
17. Lifting Eyebolt LOWER
18. Wheel Bearing Grease Fitting
19. Tire Air Valve
20. U-Ring Storage Rack
***
21. Electrical Fuses
7
22. Motor Overload Relay
16
23. Motor Direction Arrow 5
*
Not present on all models.
**
Power plug not included
(customer supplied).
***
Located inside item #16.
Figure 2, Major Features and Components - PREMG, PREMJ, PREMR and PREMW Series (three-phase power)
