7. Installation of the control unit in the outdoor cabinet M
7. Installation of the control unit in the outdoor cabinet M
1.

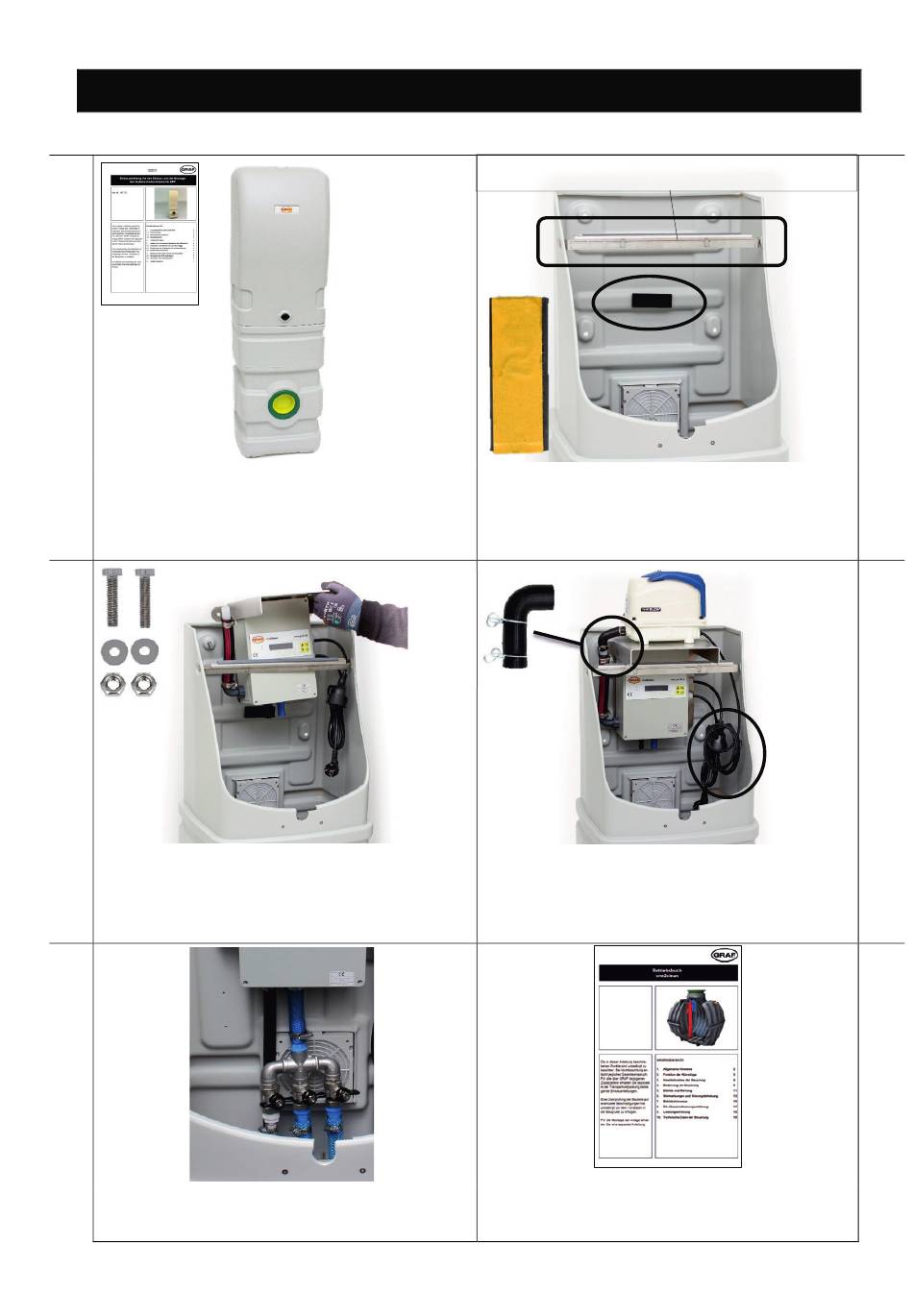

Install the external control cabinet as described in
the installation instructions and establish the elec-
trical connection.
3.
The control unit is attached using the screws,
washers and nuts supplied with the control cabi-
net.
5.
The additional air distributor is fitted as described
in 5.4 and 5.5.
mail@graf.info
www.graf.info
Recommendation, crossbeam not included in scope of supply
Before installing the control unit, the supplied
sponge rubber strip must be glued to the back.
Optional: Installation of the traverse set for outdoor
cabinet M, Art. No. 105190 (to be ordered sepa-
rately).
The compressor is placed on top of the control
unit. Use the rubber bracket for the air connection.
For the power connection, the compressor's con-
nector is plugged into the socket on the control
unit.
For information about starting up the wastewater
treatment system and setting the control unit, refer
to the operating logbook.
