7.

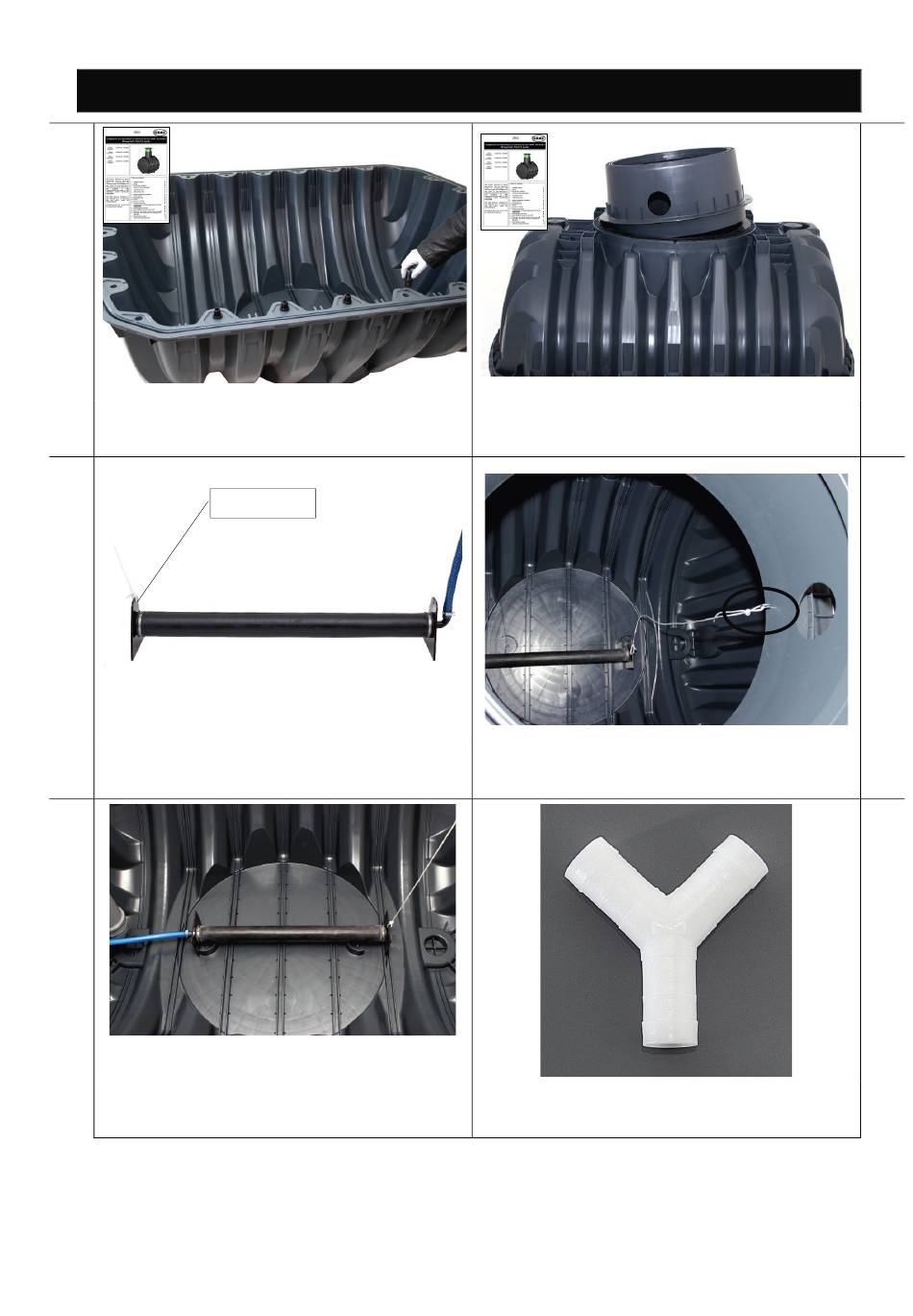

Assemble the Carat S tank as described in the in-
stallation instructions (seal, centring pins, clips,
position upper shell)
9.
A cord must be attached to the pipe aerator (6mm
hole). The air hose (19mm) is connected on the
opposite side.
11.
The pipe aerator(s) are positioned on the tank
base. To attach the cord, the hook is fastened to
the telescopic dome shaft.
4. Fitting the installation kit
6 mm hole
mail@graf.info
www.graf.info
Fit the tank dome as described in the installation
instructions (seal!).
To attach the cord, a hook is fitted inside the tank
dome. The hole for the hook should be pre-drilled
with a 4mm bit.
In systems with four pipe aerators, the hoses are
joined in pairs with a Y-piece.
20 / 80
