Graf one2clean Instructions De Montage page 23

25.

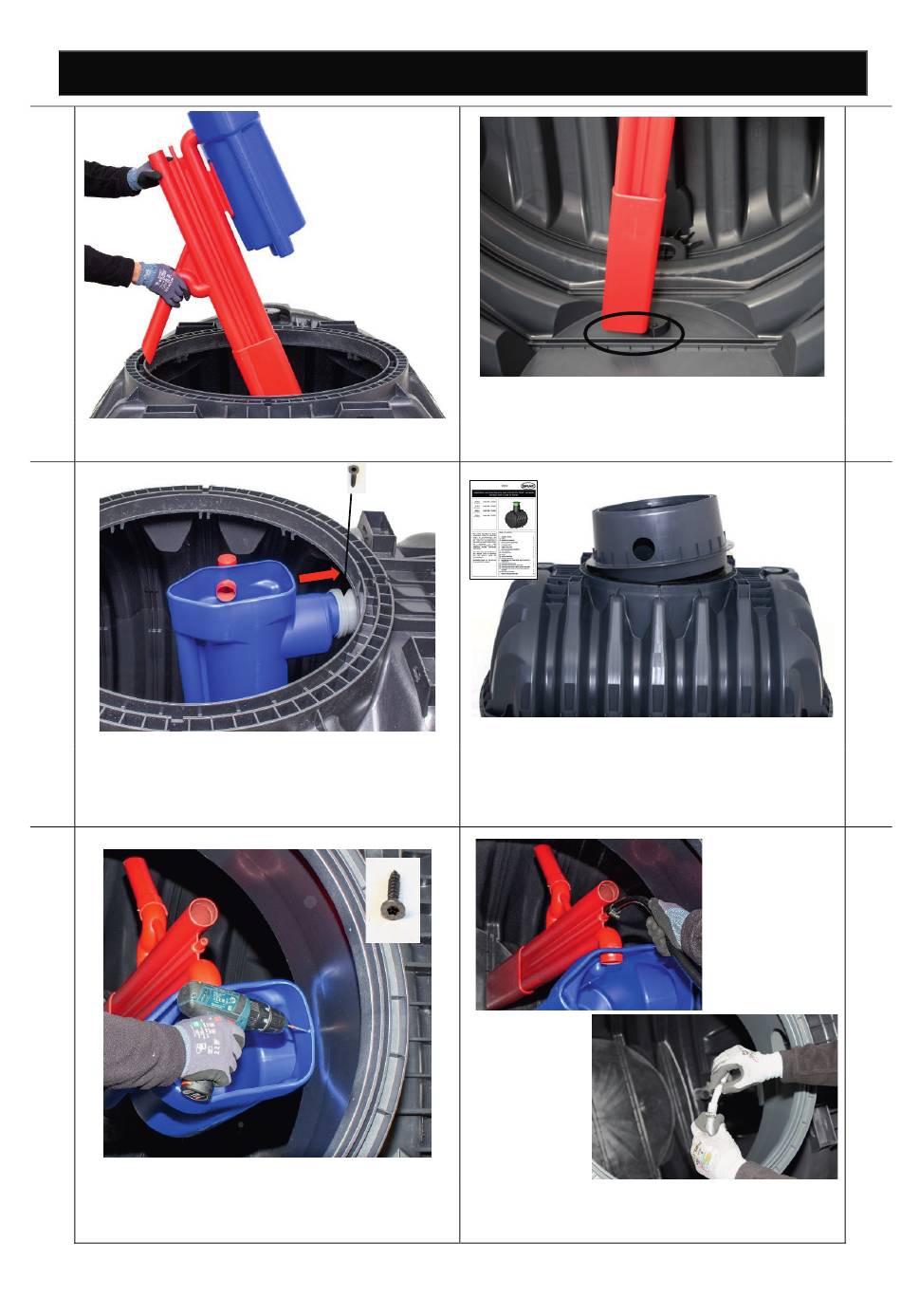

Insert lifter with sampling unit in tank.
27.
The sampling unit's outlet connector is placed
into the outlet pipe's socket (use lubricant!). The
socket connection should be secured with a
Spax screw.
29.
Secure sampler to tank dome with Spax screw.
mail@graf.info
www.graf.info
4. Fitting the installation kit
The lifter is placed from above to hold the divid-
ing wall.
The tank dome is fitted as described in the instal-
lation instructions (seal!).
Connect air hose (13mm) to lifter for discharging.
Connect air hose (13mm) to lifter for sludge re-
turn.
23 / 80
