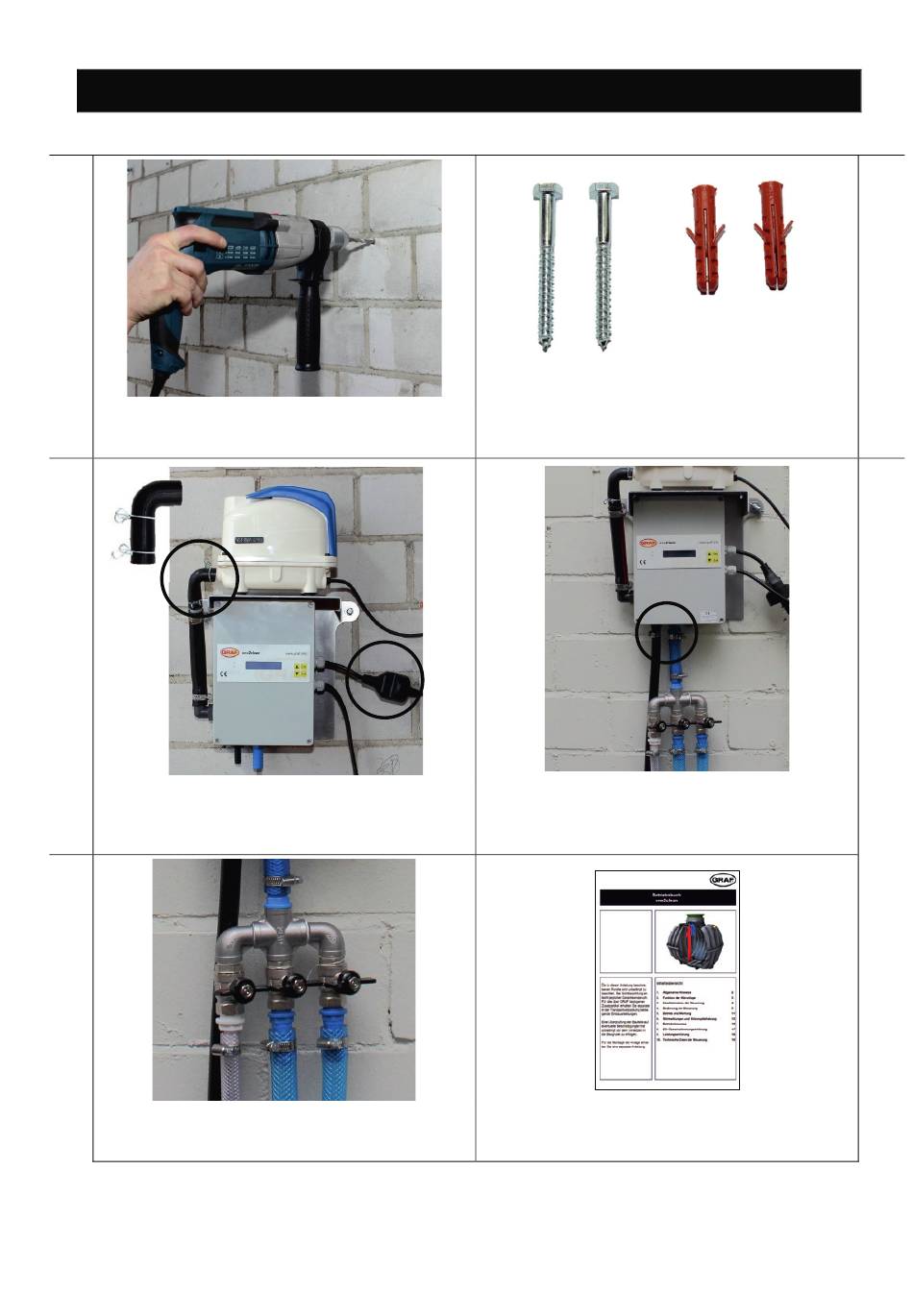

5. Installing the control one2clean unit indoors
1.
The control unit should be installed in a dry, dust-
free indoor location. To install, drill two 8mm holes
in the wall.
3.
The compressor is placed on top of the control
unit. Use the rubber bracket for the air connection.
The compressor's connector is plugged into the
socket on the control unit.
5.
The aeration hoses are connected to the two 3/4"
hose connectors. The sludge return hose is con-
nected to the 1/2" connection.
5. Installing the control one2clean unit indoors
mail@graf.info
www.graf.info
The control unit is secured to the wall with the
dowels and screws supplied.
The hose for the discharging (1/2") is directly con-
nected to the black hose connector on the control
unit. The additional air distributor is connected to
the control unit's blue hose connector (3/4").
For information about starting up the wastewater
treatment system and setting the control unit, refer
to the operating logbook.
