PROGRAMS MENU: To select the programs that will be broadcast in the previously created MUX and
monitor the transmission band.
MUX 1, MUX 2 , MUX 3, MUX 4, MUX5, MUX6, MUX7 and MUX8: allows to select the output MUX
programs configuration;
• ALL PIDS: allows you trasmit to the output multiplex all PIDs associated to the inputs multiplex or to CAMs.
• ORDER LIST: to set the order criteria for the program list. The list can be ordered by:
INPUT: ordered by classification to the input number;
LCN: sorting is carried out for LCN depending on the number associated to the program. the sorting is
done independently from which comes the input program;
PRIORITY: sorting in carried out by program priority, i.e. according to the priority assigned to the pro-
gram;
• PROGRAM LIST: to set the list of output programs:
ADD: to add the selected program to the list of output programs. When it has been added the program
is marked with an (A) in front of its name in the channel list;
REMOVE: to remove the selected program from the list of output programs;
POSITION: to set the priority and, therefore, the program position in the list of output programs;
LCN: to set the program LCN value. The available values are between 0 and 999. the value 1000 means
a deactivated LCN.
BAND: to monitor the program bitrate through of the following parameters;
MONITORING: to enable/deactivate the bitrate monitoring of the selected program. Through
this function is possibile to check whether the program has been included in the output mux or not,
according to the program bitrate;
MEDIUM VALUE: to check the program average bitrate value
PEAK VALUE: to check the program peak bitrate value;
PROGRAM PROP.: to display useful data about the programs;
PROGRAM NAME: to display the program name;
PROVIDER NAME: to display the provider name;
INPUT: to display the program input origin;
PROGRAM TYPE: to display the program type (TV, RADIO...);
SERVICE ID: to display the program service ID;

• ADVANCED CONFIGURATION

COUNTRY SELECT: to select the installation country;
TSID: to display and change the Transport Stream ID associated to the transport stream by the bro-
adcaster.

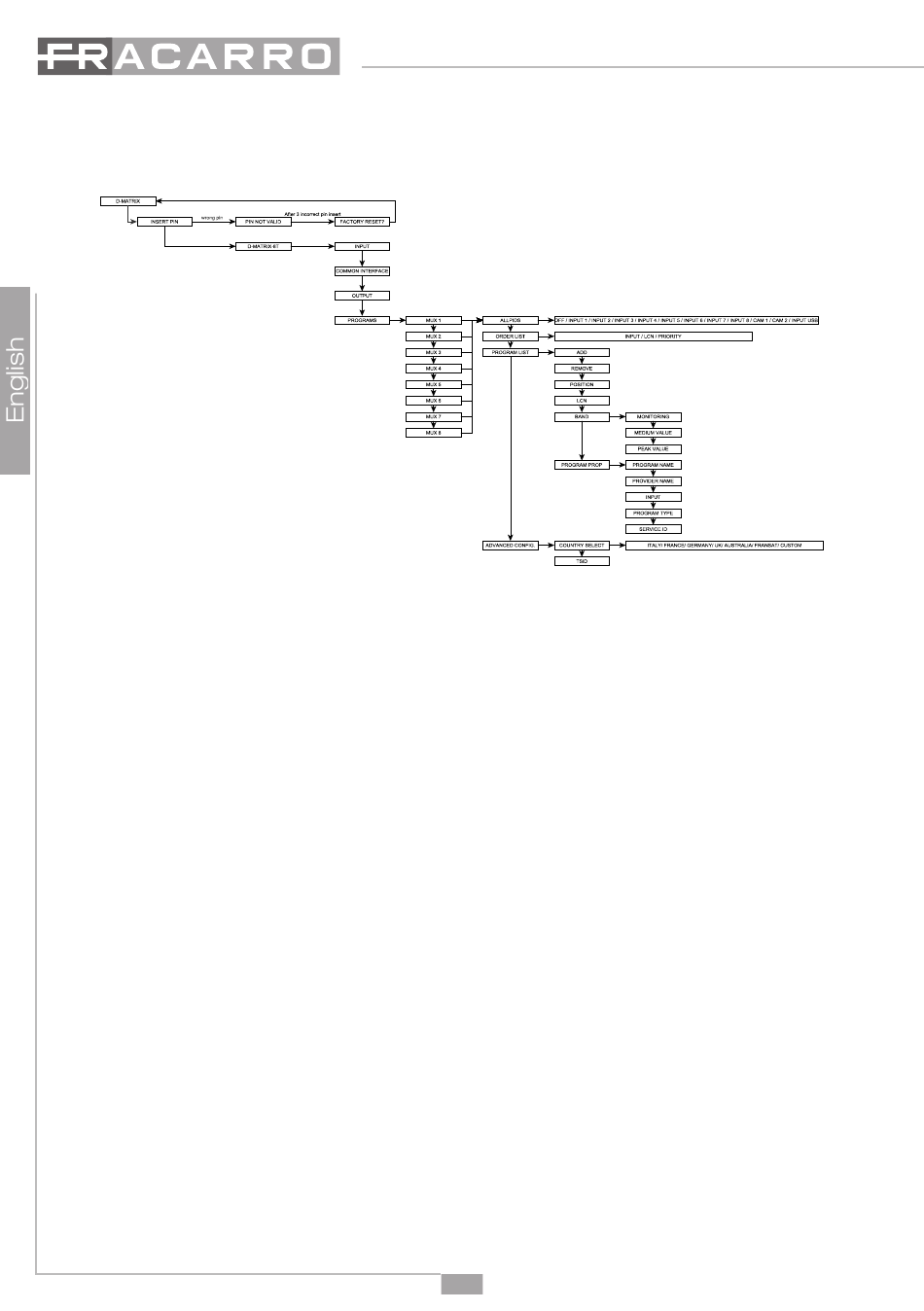

PROGRAM FLOW CHART
