Therefore, the installer must ensure that the peak bandwidth of the selected programs does not exceed the set or
theoretical maximum limit

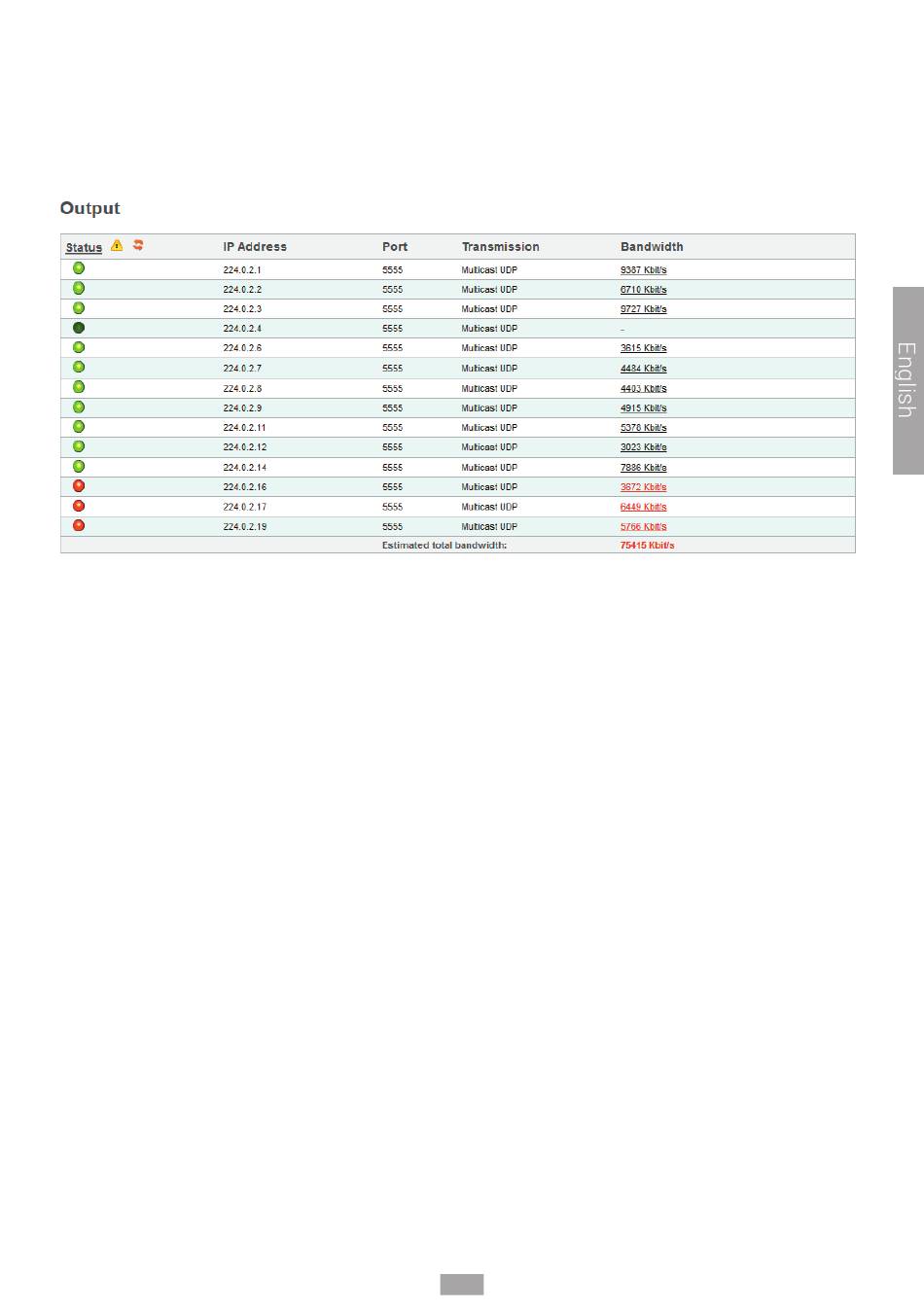

To facilitate this task, the system displays a graphical indicator of the total transmitted bandwidth, which is
automatically updated every second, as shown in Figure 19.
If the maximum or configured bandwidth limit is exceeded (overflow), the system will signal this by:
y Displaying the estimated total bandwidth in red
y Highlighting in red the network groups that exceed the available maximum bandwidth
As a result, these programs may become partially or completely unavailable.
The installer should carefully configure the output program list by:
y Researching the maximum bandwidth required by each program (using sources from the web or industry
publications)
y Monitoring bandwidth usage over a sufficient period to ensure that the peak bandwidth never reaches the
maximum limit
y Maintaining a safety margin to prevent potential issues
Operating instructions
Fig. 19
47
