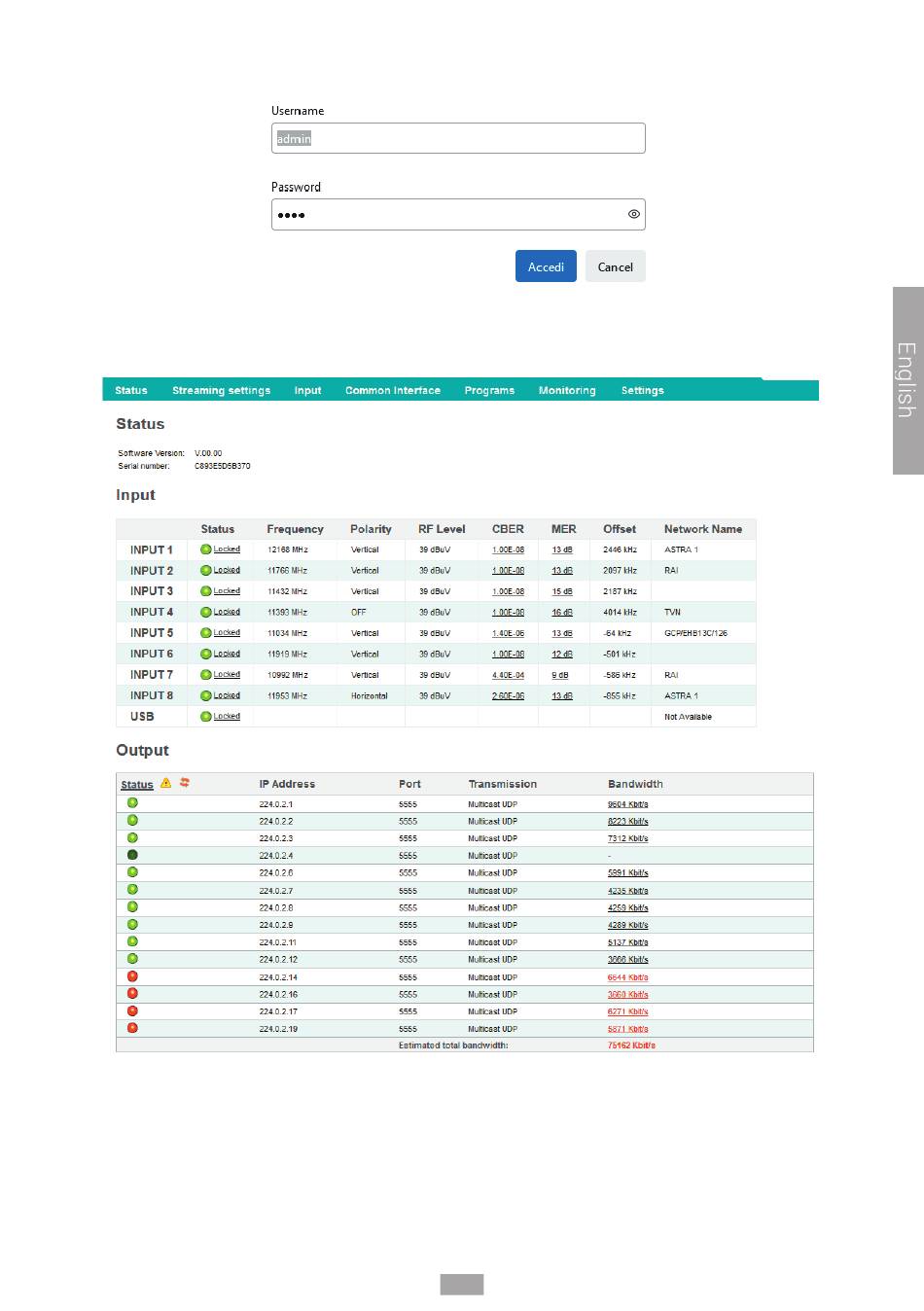

Clicking on LOGIN will display the following screen (Fig. 2).
Select the language by clicking on the corresponding flag in the top right corner (available options: English, Italian,
French, and German).
IMPORTANT: To access the programming via the web interface, the front panel menu must not be in use. The web
interface layout may vary depending on the software version installed on the device.
The STATUS section allows users to check the currently installed software version and the corresponding serial
number at any time.
The INPUT section displays the status of the inputs, showing key data related to signal level and reception quality
parameters (CBER and MER), as well as the name of the received transponder.
Operating instructions
Fig. 1
Fig. 2
33
