Operation

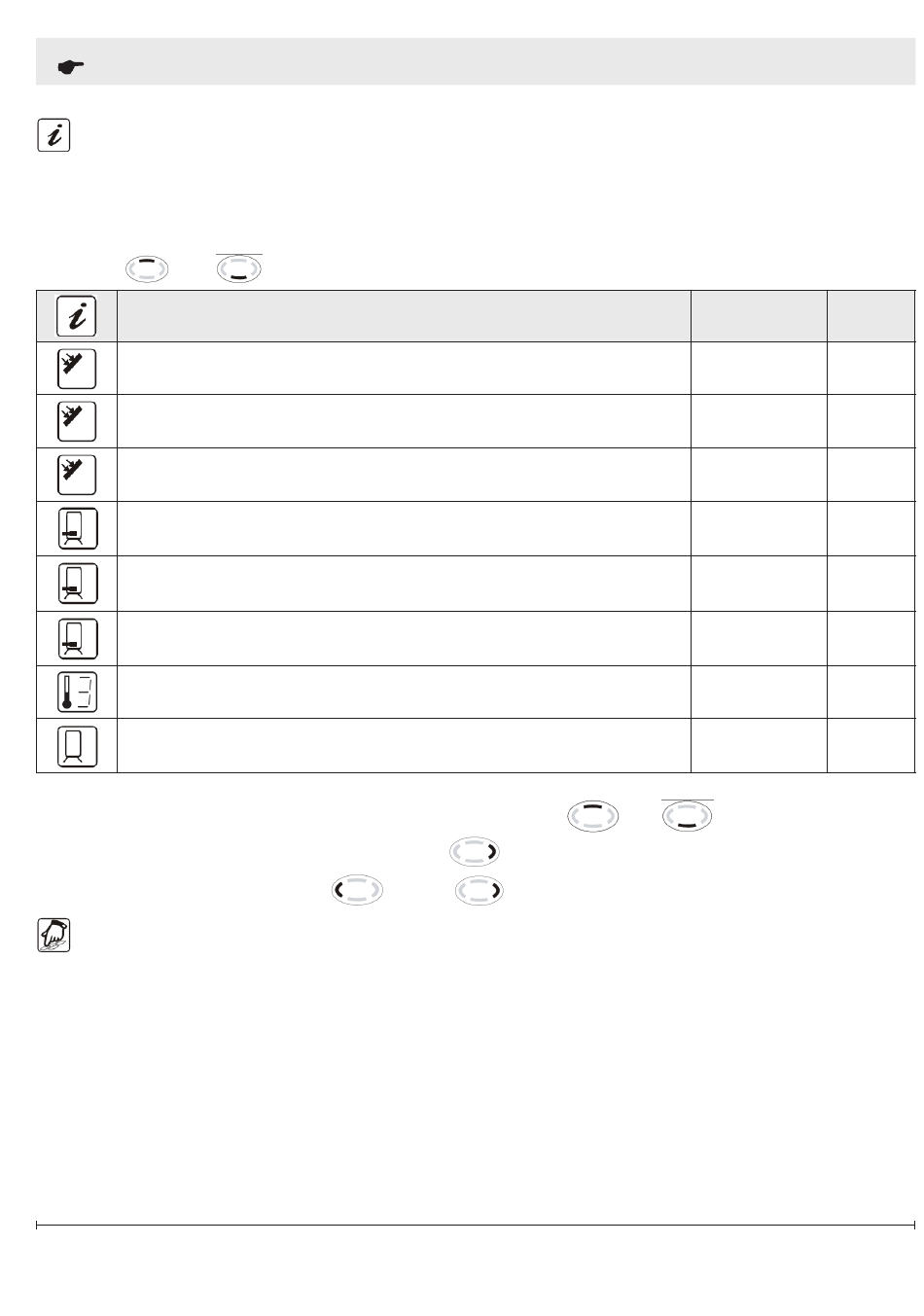

information Menu
The Information Menu is the main menu for automatic regulation of Solar Hot Water System. It indicates
current system values, the current system condition, any error messages and the number of operating
hours. The table below indicates the readings in the Information Menu and whether they can be reset to
assist in monitoring the system.
using the
and
Indication of current Solar Collector temperature (S1)
Indication of minimum Solar Collector temperature (S1)- since
startup or the last reset. Resets to current temperature
Indication of maximum Solar Collector temperature (S1) - since
startup or the last reset. Resets to current temperature
Indication of current temperature of the Solar Storage Tank (S2)
Indication of minimum temperature of the Solar Storage Tank (S2)-
since startup or the last reset. Resets to current temperature
Indication of maximum temperature of the Solar Storage Tank (S2)-
since startup or the last reset. Reset to current temperature
Indication of the current temperature of the optional Temperature
Sensor (S3)
operating hours for charging the Solar Storage Tank - since startup
or the last reset. Resets to 0 h
If the values are marked as "reset-able", they may be reset in the following way:
•
Toggle through to the value to be reset. press both buttons
•
Resetting of the value by pressing the button
•
"oK?" will appear, confirm with
Programming Menu
All adjustable parameters can be checked in this menu and, if necessary, changed. The unit is set up
with factory default values, which as a rule guarantee a problem-free operation of the system. The table
below indicates the parameters which are adjustable in your system.
!
nOTE: Any changes can affect how the system functions and should only be changed by a techni-
cian.
30
All manuals and user guides at all-guides.com
buttons will allow the user to toggle through the displayed values.
Description
= no or
and
= yes
indication
reset
E.g.
Possible
150 °F
no
min. 50 °F
Yes
max. 170 °F
Yes
122 °F
no
min. 104 °F
Yes
max. 150 °F
Yes
130 °F
no
1234 h
Yes
