gala gar SMART 200 MP SYNER Manuel D'instruction page 23

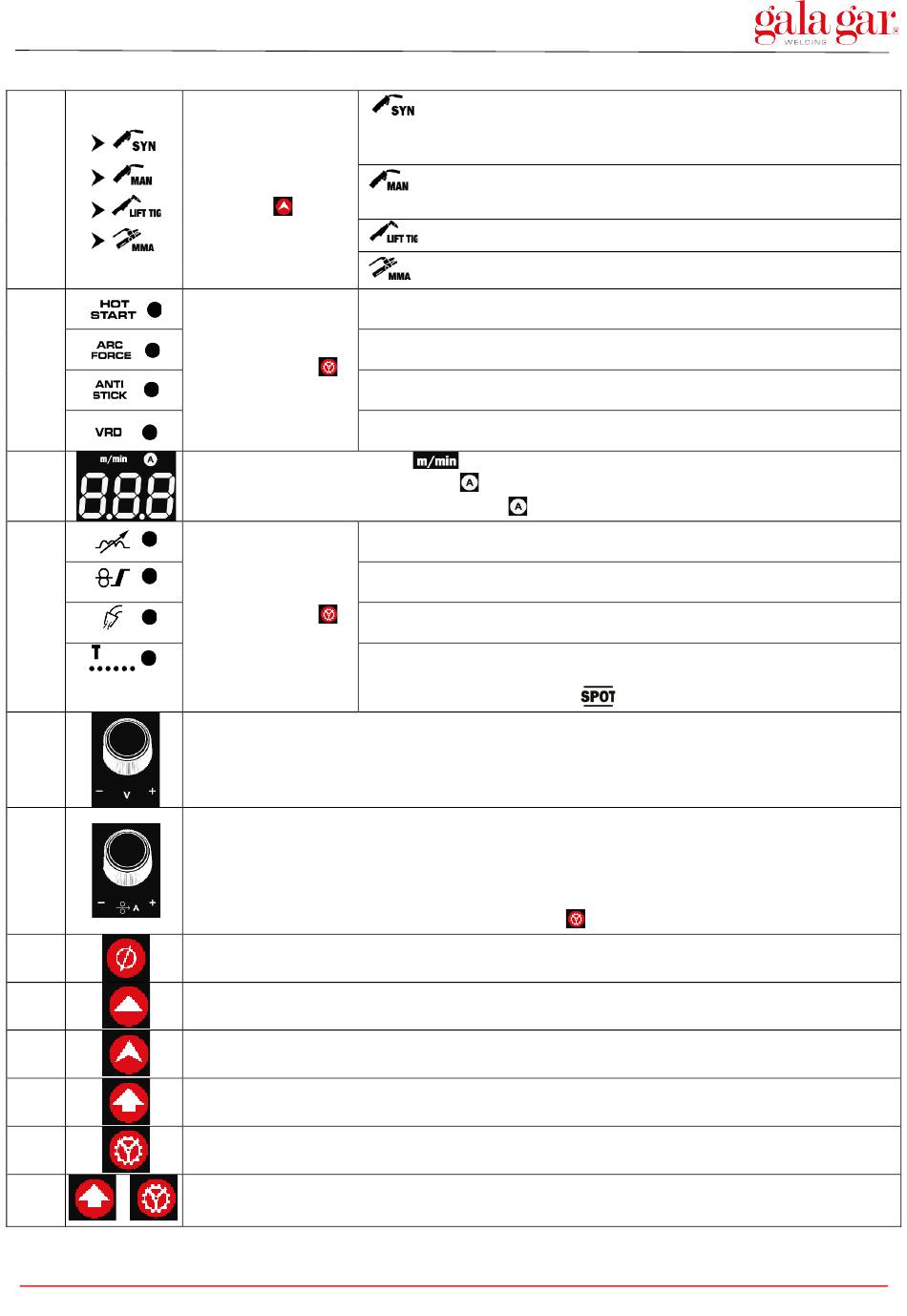

SMART 200 MP SYNER
A6
A7
A8
A9
E1
E2
P1
P2
P3
P4
P5
P4+P5
+
Gala Gar, S.L. c/ Jaime Ferrán, 19 (Políg. Cogullada) | Tel.: (+34) 976 47 34 10 - 50014 ZARAGOZA |
Welding mode
selected. Set by
pressing P3 .
MMA functions.
Accessed with P5
and adjusted with E2
• Wire speed display in m/min
• Display welding current in amperes
• Display actual welding current in amperes
MIG functions.
Accessed with P5
and adjusted with E2
Encoder control for welding voltage adjustment (arc length):
• Welding voltage in manual MIG mode. 10,0-27,5 V.
•
Synergic welding voltage correction in synergic MIG mode. ±3.0 V
Encoder control for power adjustment and welding functions:
•
Wire speed in manual MIG mode. 2.5-15.0 m/min.
•
Welding current in synergic MIG mode. 30-200 A.
•
Welding current in TIG DC Lift Arc mode. 15-200 A.
• Welding current in MMA mode. 25-180 A.
MMA and MIG welding functions. Accessed with P5
Wire diameter selection button (mm) for MIG welding. The options vary according to the material
and gas selected. The current selection is shown in A1.
Material and gas selection button for MIG welding.
The current selection is displayed in A4.
Welding mode selection button.
The current selection is displayed in A6.
MIG cycle control selection button, torch pulse mode for MIG welding.
The current selection is displayed in A5
Welding function selection button. The value is set with E2.
The current selection is displayed in A7 in MMA mode and A9 in MIG modes.
Wire purge: keep P4 and P5 pressed simultaneously. Only in MIG modes.
Synergic MIG. The welding voltage value (arc length) is
automatically adjusted according to the wire speed (E2) and the selected
material. With E1 the synergic voltage can be corrected ±3.0 V.
Manual MIG. The welding voltage (arc length) is set manually
with E1 and the wire speed with E2.
TIG DC Lift Arc. The welding current is adjusted with E2.
MMA. The welding current is set with E2.
HOT START. Facilitates arc starting by preheating the electrode.
0-10 (0-100%)
ARC FORCE. Improves arc stability and prevents the electrode from
sticking. 0-10 (0-100%)
ANTI-STICK. Prevents the electrode from sticking to the workpiece.
ON-OFF
VRD (Voltage Reduction Device). Allows to reduce the vacuum voltage.
ON-OFF
, in synergic and manual MIG modes.
, in TIG and MMA modes.
, in all modes.
INDUCTANCE. Allows adjustment of the response of the arc, softening
or hardening it. ±10%.
APPROACH SPEED. Allows adjustment of the wire speed prior to
ignition.
POST-GAS. Allows adjustment of the gas flow time at the end of the
welding process, after the arc has been switched off.
SPOT WELDING TIME. Allows the duration of each spot weld to be
adjusted. 0.0-3.0s.
Only for torch pulsing mode
23/64
.
.
