6. Installation conditions
6.1
The model described in this manual is a component of a system and must be installed by authorised personnel only.
6.2
The model is fitted with axial fans that are not suitable to withstand additional static pressures and therefore it cannot be
channelled, air intake filters cannot be installed and in the area dedicated to installation there must be no strong currents
of air which are contrary to the flow of the motor fans.
6.3
Installation must be carried out preferably outside. In the event that the model is to be installed inside, it is essential to
provide an air intake that excludes any additional static pressure.
6.4
The base must be appropriate to the weight of the model when operational. Check that the support base is perfectly
horizontal.
6.5
The equipment must be securely anchored to the support base, use all the fixing points.
6.6

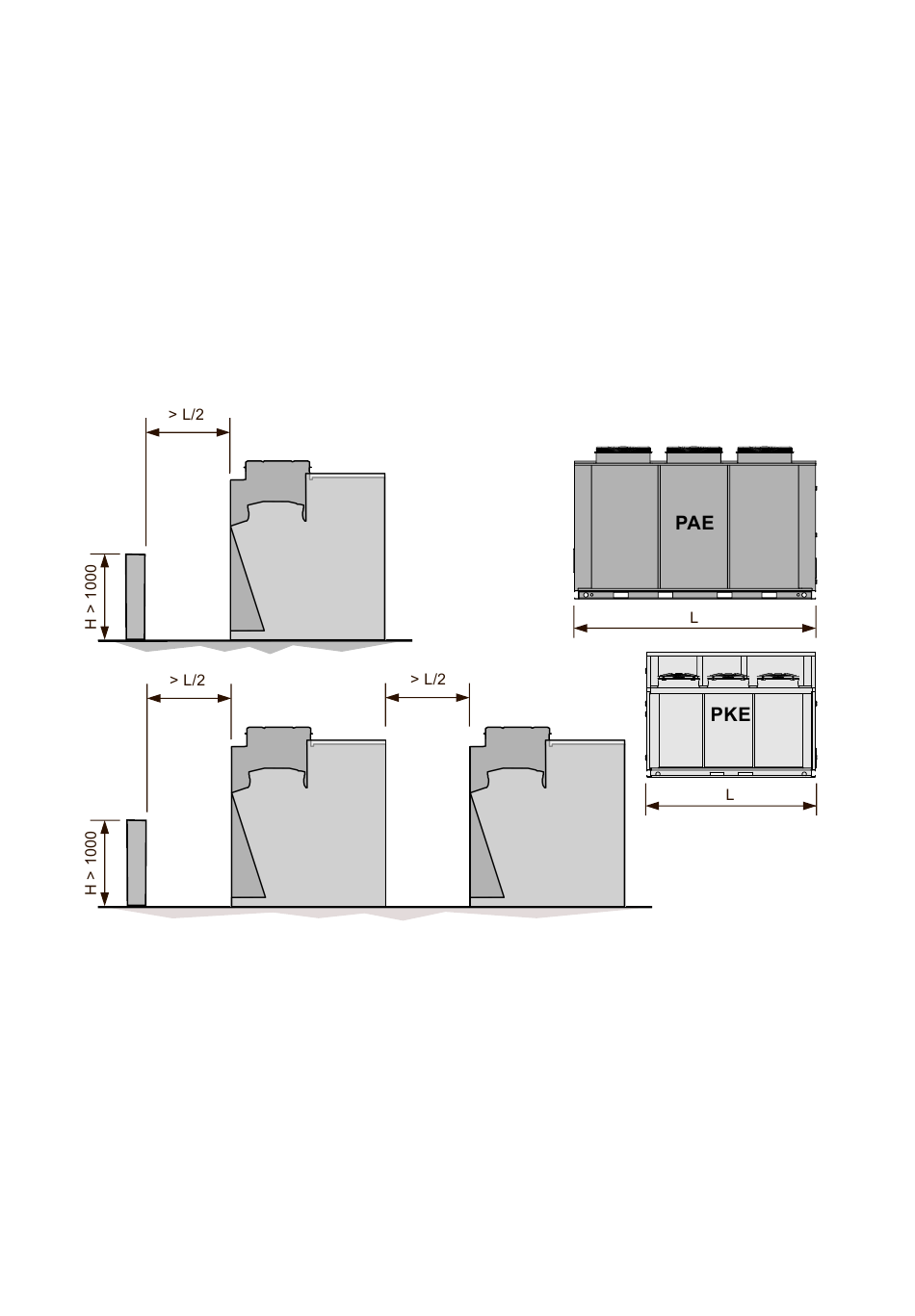

Provide space adequate to the circulation of air and for maintenance. Avoid directing the air flow against surfaces that
are reflective or that otherwise increase the noise level. For installations that are different from what is indicated, contact
Modine.
34
www.modine.com
Figure 5
