8. Open the rear service door.
9. Slowly open the tank oil filler cap to check that there
is no pressure in the station, and then carefully
remove it.
10. Remove the oil drain fitting cap and drain the oil into
a suitable container for disposal. Put back the cap
and close it securely.
11. Slowly add appropriate oil to the vacuum pump from
the filler cap until the oil level is at the center of the
level indicator.
12. Insert the oil filler cap on the pump connection and
close it securely.
13. Close the rear service door.
14. Turn on the station.
15. Select
to continue.
« A message appears on the display that indicates
to the operator to check that the oil level is at the
center of the pump level indicator.
i
If it is necessary to add more oil, repeat operations
7, 8, 9, 11, 12, 13 and 14 for oil insertion.
16. Select
to return to the Maintenance Menu.
2

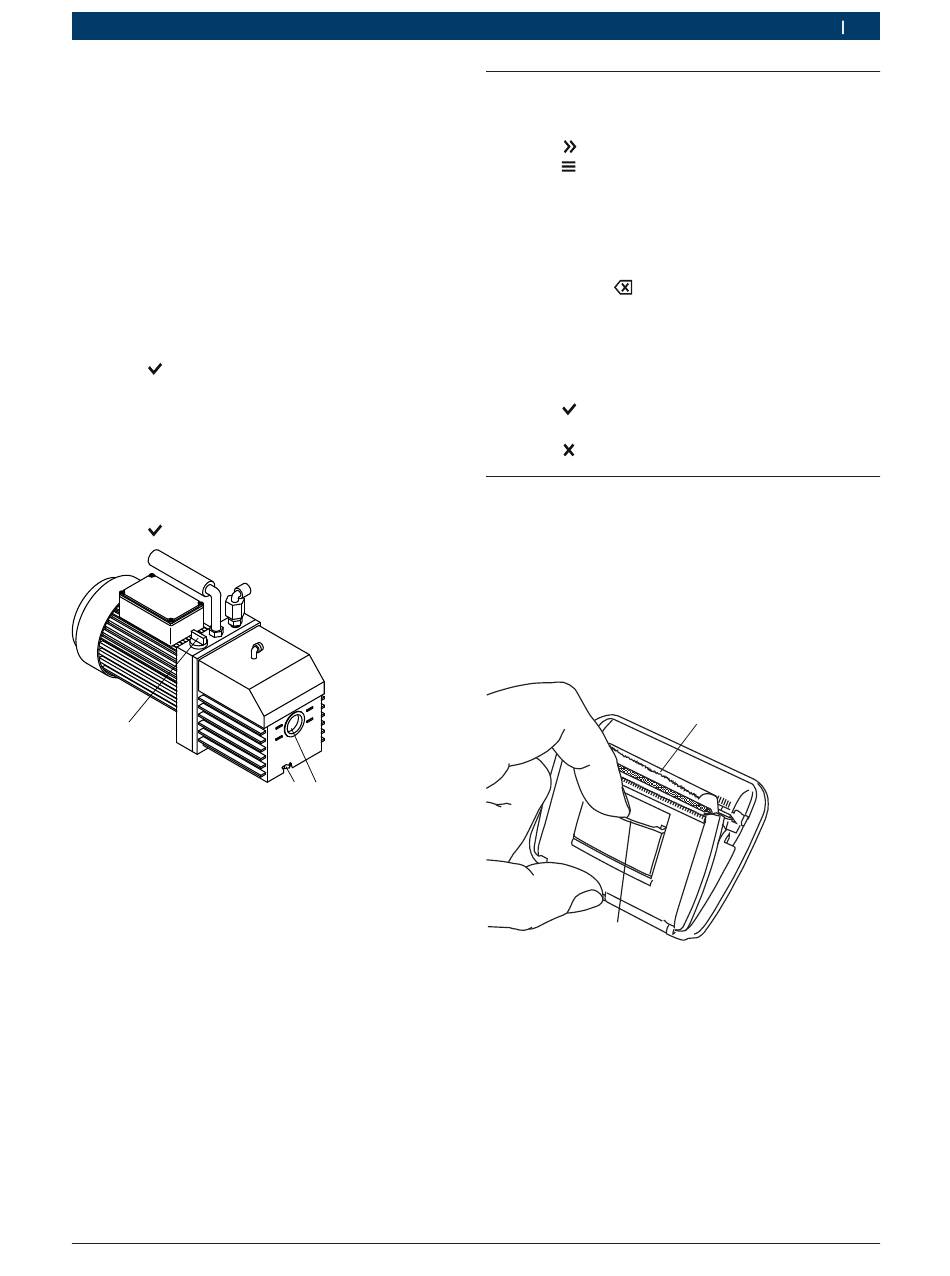

Fig. 22: Vacuum pump
1 Inspection port
2 Oil filler cap
3 Oil drain plug
Robert Bosch GmbH
3
1
Maintenance | ACS 653 | 67
7.10 Print header change
To change the text that appears on this screen:
1. Call up the Main Menu.
2. Select
.
3. Select
.
4. Select Settings.
5. Select Edit Print Header.
« The cursor is in the first field.
6. Update the text using the arrow buttons and the
multi-touch interface on the numeric keypad:
+
The button acts as a backspace key.
+
The Right or Left arrows button moves the cursor
to the right or left.
+
The Zero (0) key also acts as a space bar.
+
To navigate within the rows, use the Up and
Down arrow keys.
7. Select
to save the changes and return to the
Settings Menu.
8. Select
to exit and return to the Settings Menu.
7.11 Replacing the printer paper
(only for variants with printer)
To install a new roll of paper in the printer:
1. Remove the printer cover pulling out the tab.
2. Remove the paper support.
3. Install the new roll of paper with the roll end at the
top.
4. Close the cover so that the upper edge of the paper
comes out.
2
Fig. 23: Replacing the printer paper
1 Upper edge of paper above the roll
2 Tab
en
1
|
SP00D00621 2019-11-08
