R:3 SER S:3SER
CONFIRM(ENTER)
to go back to previous screen. Then carefully check the number of cells of the battery pack to charge again.
Li3S 2.0A 12.59V
CHG 022:43 00682
cHarging LitHiUM BattEry at BaLancE MoDE
This is for balancing the voltages of Lithium batteries of the battery pack to be charged. To do this, the
battery pack being charged should have the individual cell connector. And connect it to the individual port
at the right side of charger with a suitable connection cable that fits with your battery pack. And also, you
need to connect the battery output plug to the output of charger.
In this mode, the charging process will be different from ordinary charging mode. The internal processor
of the charger will monitor the voltages of each cell of the battery pack and controls the charging current
that is feeding to each cell to normalize the voltage.
LiPo Balance
2.0A 11.1V(3S)
seconds to start the process.
R:3SER S:3SER
CONFIRM (ENTER)
not, press Batt type/Stop button to go back to previous screen. Then carefully check the number of cells of
the battery pack to charge again.
Li3S 2.0A 12.59V
CHG 022:43 00682

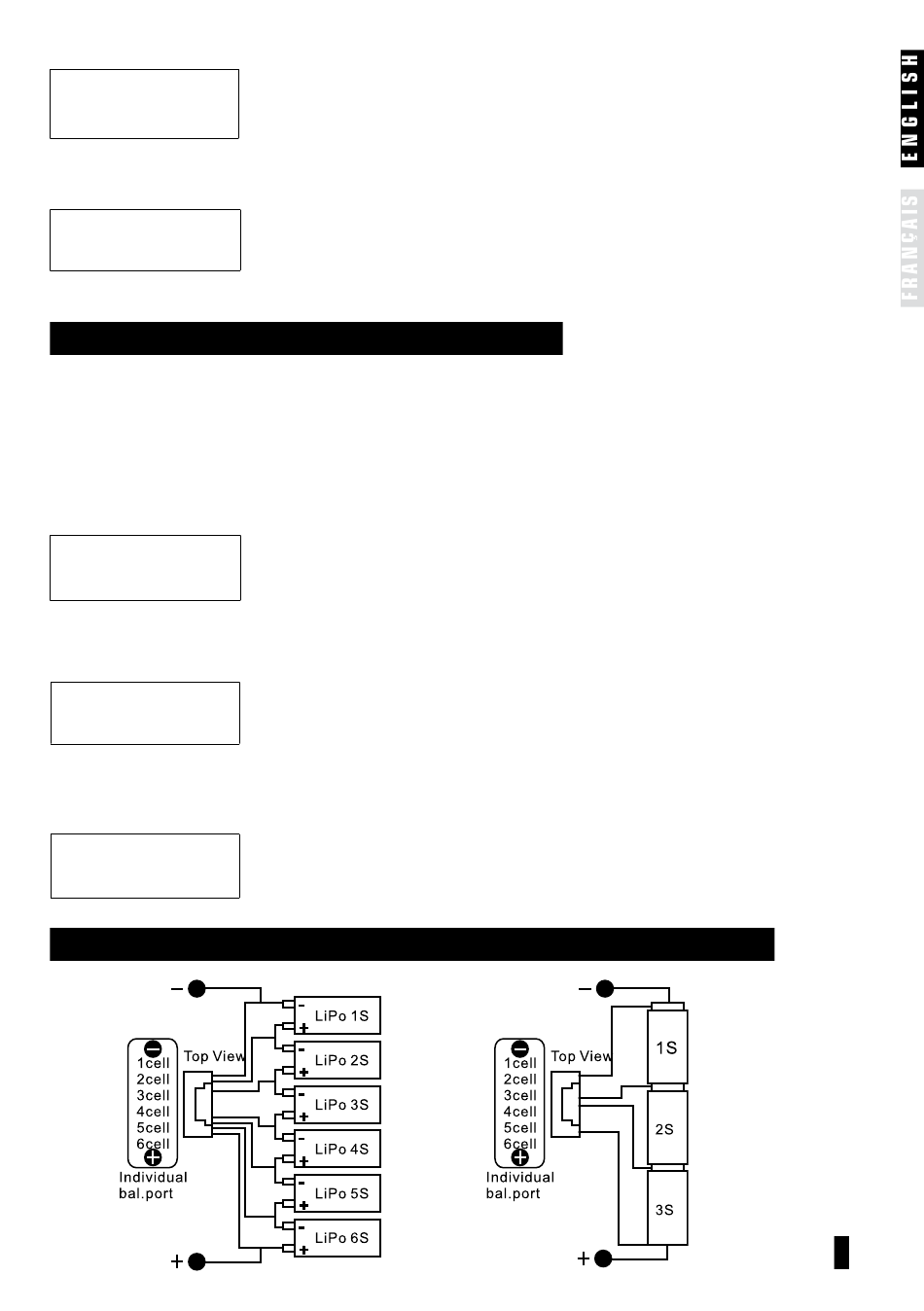

inDiviDUaL cELL connEction DiagraM [pin-aSSignMEnt of 8-pin]
This shows the number of cells you set up and the processor detects. "R:"
shows the number of cells found by the charger and "S:" is the number of cells
selected by you at the previous screen. If both numbers are identical you can
start charging by press Start/ Enter button. If not, press Batt type/Stop button
The screen shows the present situation during charge process. To stop
charging press Batt type/Stop key once.
The value on the left side of second line sets a charge current and the value on the right
side of second line sets the voltage of the battery pack.
After setting the current and voltage press Start/ Enter key for more than 3
This shows the number of cells you set up and the processor detects. "R:"
shows the number of cells found by the charger and "S:" is the number of
cells "S:" is the number of cells selected by you at the previous screen. If both
numbers are identical you can start charging by press Start/Enter button. If
The screen shows the present situation during charge process. To stop
charging press Batt type/Stop key once.
