Technical data
Fuses behind the right-hand trim
F1
F3
F2

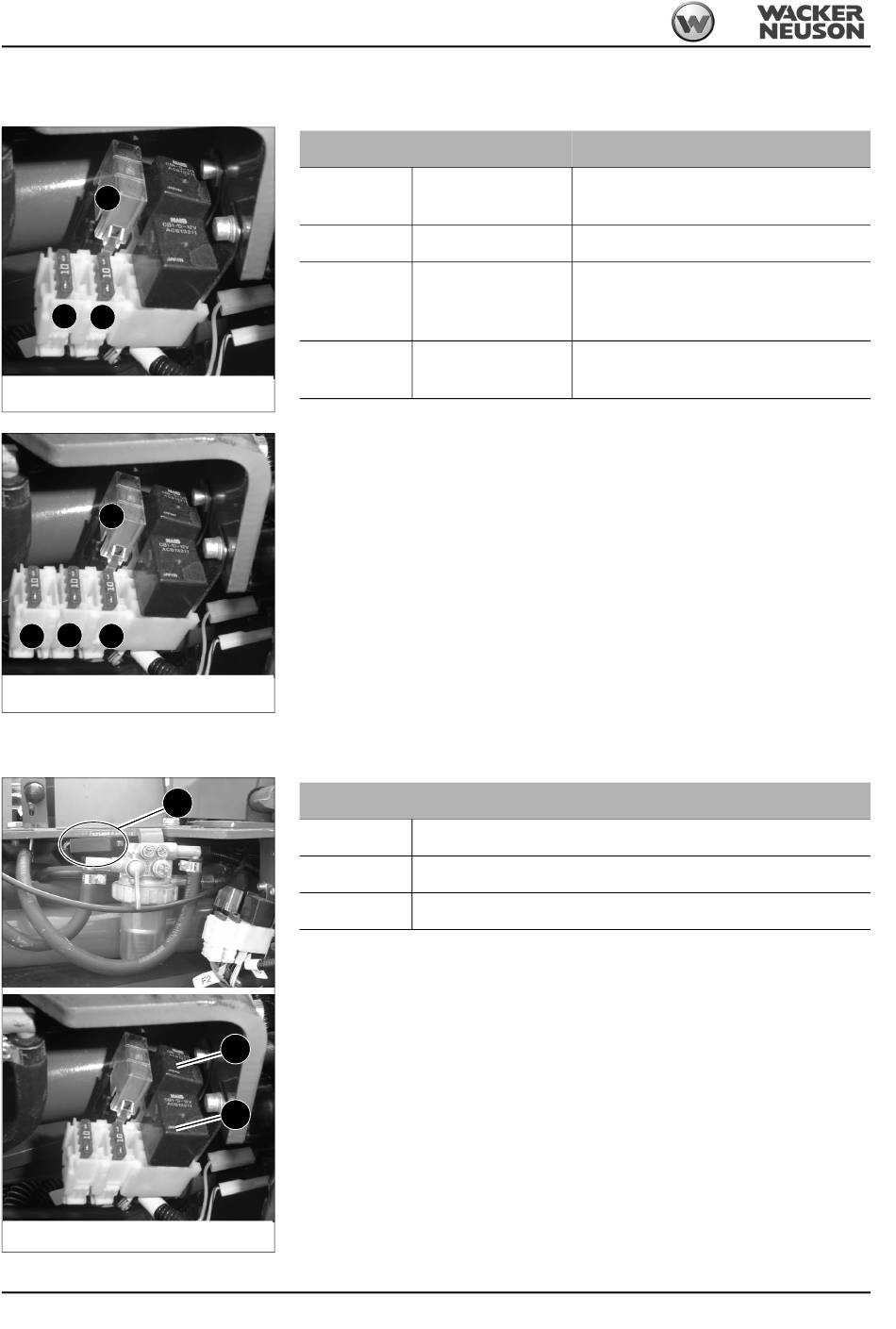

Fig. 222: Fuses (up to serial number
WNCE0801CPAL0050)
F1
F3
F4 F2
Fig. 223: Fuses (from serial number WNCE0801TPAL0051)
Relays behind the right-hand trim
K8
Fig. 224: Relays
6-4
Fuse no.
F1
F2
F3
F4
Relay no.
K 7
K 8
K 9
K9
K7
Rated current (A) Protected circuit
Main fuse: air-pressure sensor/output adap-
40 A
tation (Yanmar 3TNV74F-SNNS)
10 A Fuse: relay, indicator, cutoff solenoid
Fuse: horn, working light 12 V power outlet
10 A (up to serial number WNCE0801CPAL0050),
travel signal (option)
12 V power outlet (from serial number
10 A
WNCE0801TPAL0051)
Protected circuit
Starting relay
Cutoff solenoid time lag relay 1s
Cutoff solenoid switching relay
OM 803 us – Edition 3.7 * * 803b610.fm
