Operation

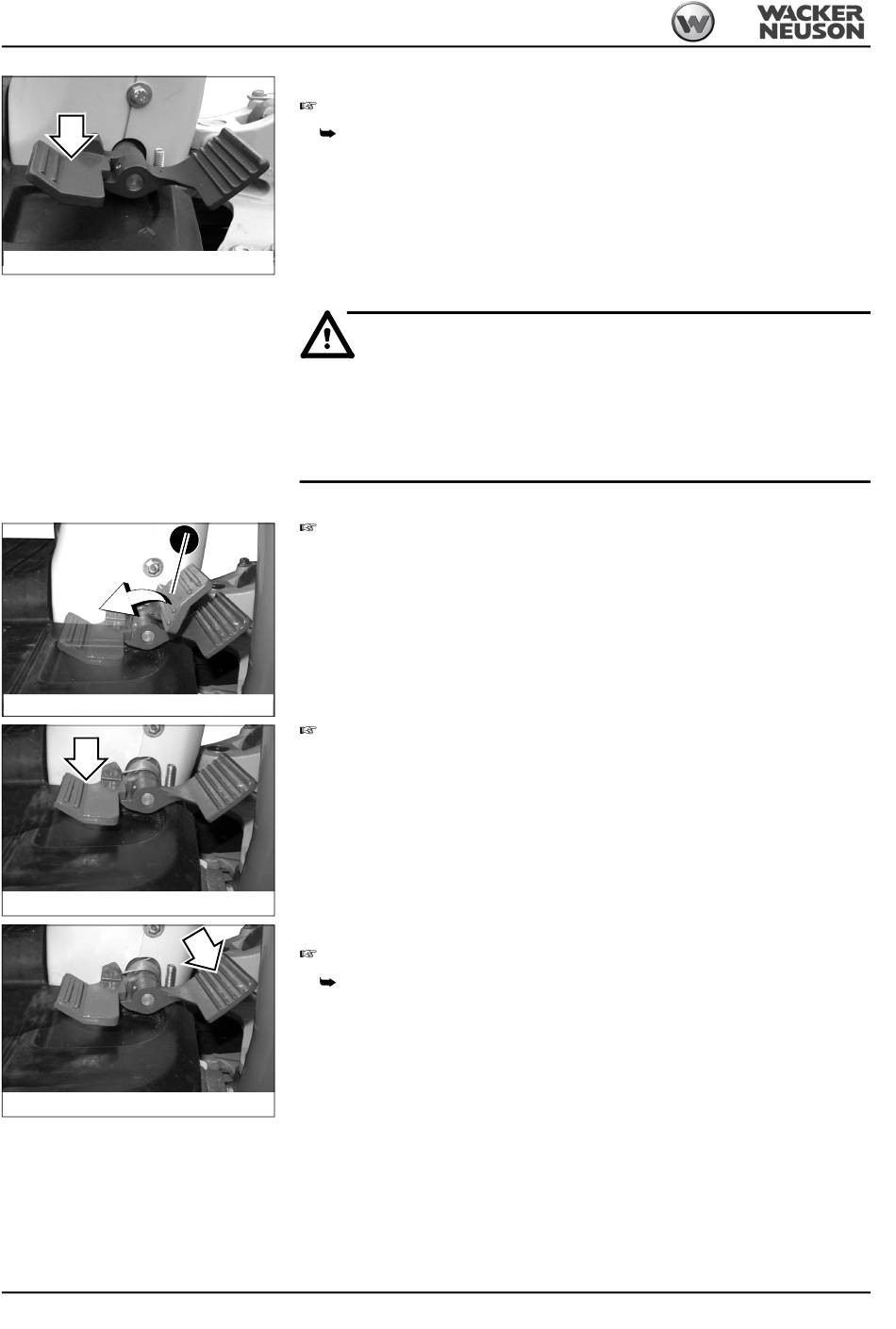

Fig. 115: Actuating the swiveling mechanism
Boom swivel controls (from serial no. AI00976)
Fig. 116: Swivel controls
Fig. 117: Keeping the swiveling mechanism in position
Fig. 118: Actuating the swiveling mechanism
3-54
Swiveling the boom to the right:
Press the rear half of the right-hand pedal
Boom swivels to the right
Unfold the right-hand pedal 7
7
Keep the right-hand pedal in position but do not press it
Swiveling the boom to the left:
Press the front half of the right-hand pedal
Boom swivels to the left
WARNING Warning!
Injury hazard when operating the boom swivel mechanism!
Can cause serious injury or death.
• The pedal is secured with a torsion spring. The pedal flips forward when it is
released, but is not locked.
