Wacker Neuson 803 Notice D'utilisation page 21

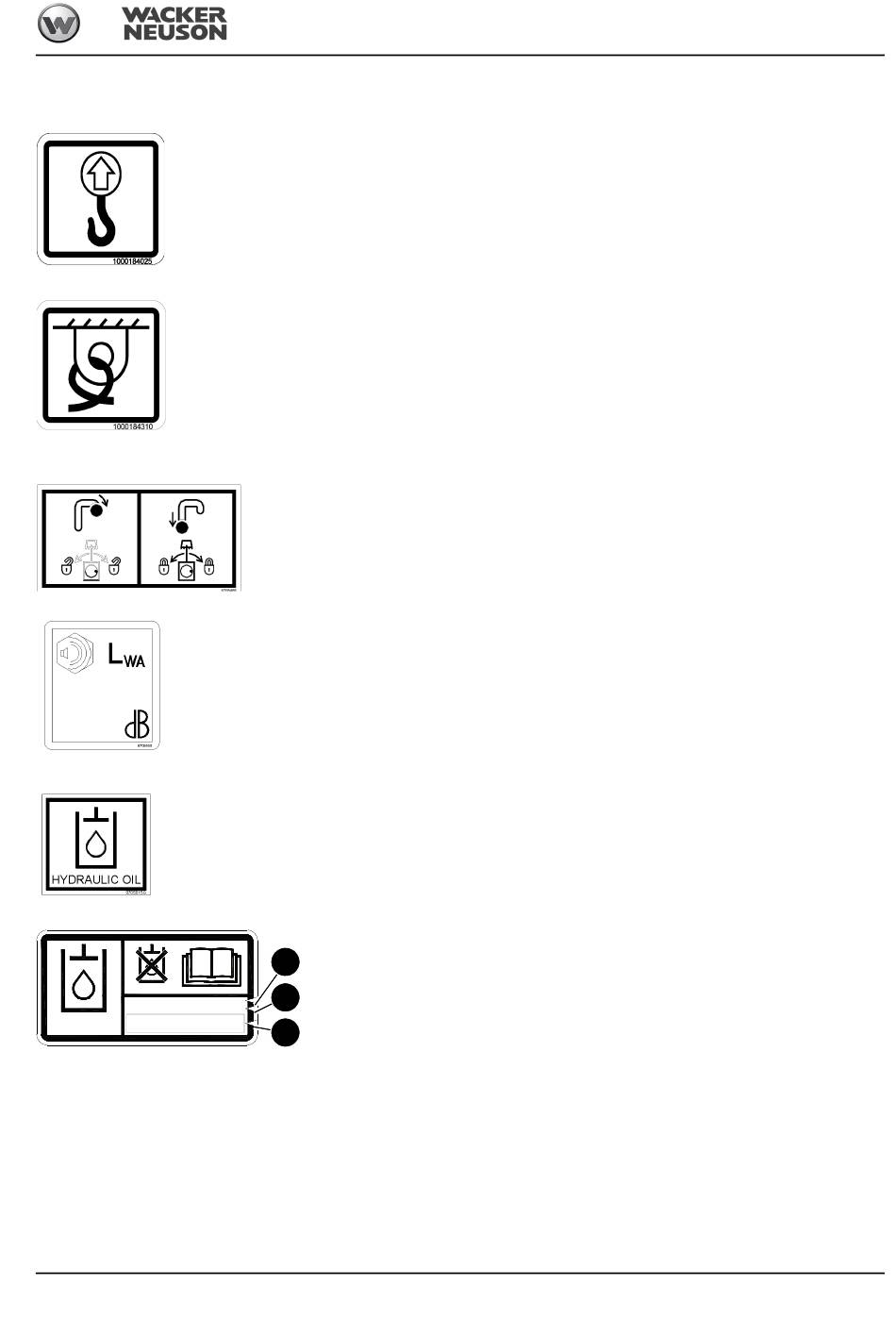

Fig. 4: Eye hooks
Fig. 5: Points for tying down the machine
Fig. 6: Swivel unit lock
93
Fig. 7: Noise level indication
Fig. 8: Hydraulic oil
BIO HYDRAULIC OIL
BP Biohyd SE-S 46 | 1000097823
Panolin HLP Synth 46 | 1000097826
BIO
HYDRAULIC OIL
Fig. 9: Biodegradable hydraulic oil
OM 803 us – Edition 3.7 * 803b110.fm
The following states signs and symbols that do not contain explanatory text and that are
not explained in the following chapters.
Meaning
Machine is raised by the eye hooks
– see chapter
Position
On either side of the stabilizer blade, and on either side of the boom
Meaning
Points for tying down the machine.
The mounting points are used for tying down the machine during loading and transporta-
tion
– see chapter
Position
On either side of the stabilizer blade, at the center of the undercarriage
Meaning
This label shows how to lock the upper carriage.
Position
On the front side of the engine cover
Meaning
Noise levels produced by the machine.
L = sound power level
WA
Other information
Position
On the front side of the engine cover
Meaning
The reservoir contains hydraulic oil.
Position
On the hydraulic oil reservoir
Meaning (option)
The reservoir contains biodegradable hydraulic oil.
1
This label is notched on the side depending on the biodegradable hydraulic oil used.
2
1 BP Biohyd SE-S 46
2 Panolin HLP Synth 46
3
1000252423
3 Other producer of biodegradable hydraulic oil
During operation with a zero-emission power unit, there must be no biodegradable hydrau-
lic oil in the excavator or power unit.
Position
Under the engine cover on the hydraulic oil reservoir
Lifting the machine on page 3-44
Tying down the machine on page 3-47.
– see chapter 6.8 Noise levels on page 6-6
Introduction
1-11
