Control Box 3S io
It is possible to access auto-programming mode at any time including when the auto-programming cycle has already been completed and
the display indicates "C1".
Auto-programming can be interrupted by:
• activating a safety input (photoelectric cells, etc.)
• the appearance of a technical fault (thermal protection, etc.)
• pressing a control button (control box interface, memorised remote control, wired control point, etc.).
In case of interruption, the display indicates "h0" and the control box returns to "Awaiting setting" mode.
In "Awaiting setting" mode, the radio controls operate and the gate moves very slowly. This mode must only be used during installation. Auto-programming
must be successfully performed before the gate can be used normally.
During auto-programming, if the gate is stationary, pressing "SET" will exit auto-programming mode.
Compliance with standards
In normal installations, auto-programming ensures compliance with standard EN 12453 - appendix A without additional adjustments.
For heavy gate leaves or if specific installation measurements apply, the impact force must be measured once auto-programming has been successfully
completed.
If the dynamic time Td is too great, reduce the motor torque (parameters P25 to P32).
If the dynamic force Fd is too great, reduce the speed (parameters P19 and P20).
The table below indicates the limits with which the installation complies once auto-programming has been successfully completed*:
Motorisation gate leaf length
Axovia MultiPro 1 m to 2.5 m
Axovia 220B 1 m to 2 m
Axovia 180B 1 m to 1.8 m
Ixengo 1 m to 2 m
2 m to 4 m
* for normal installation measurements; in case of doubt, Somfy recommends measuring the impact force once auto-programming has been successfully performed.

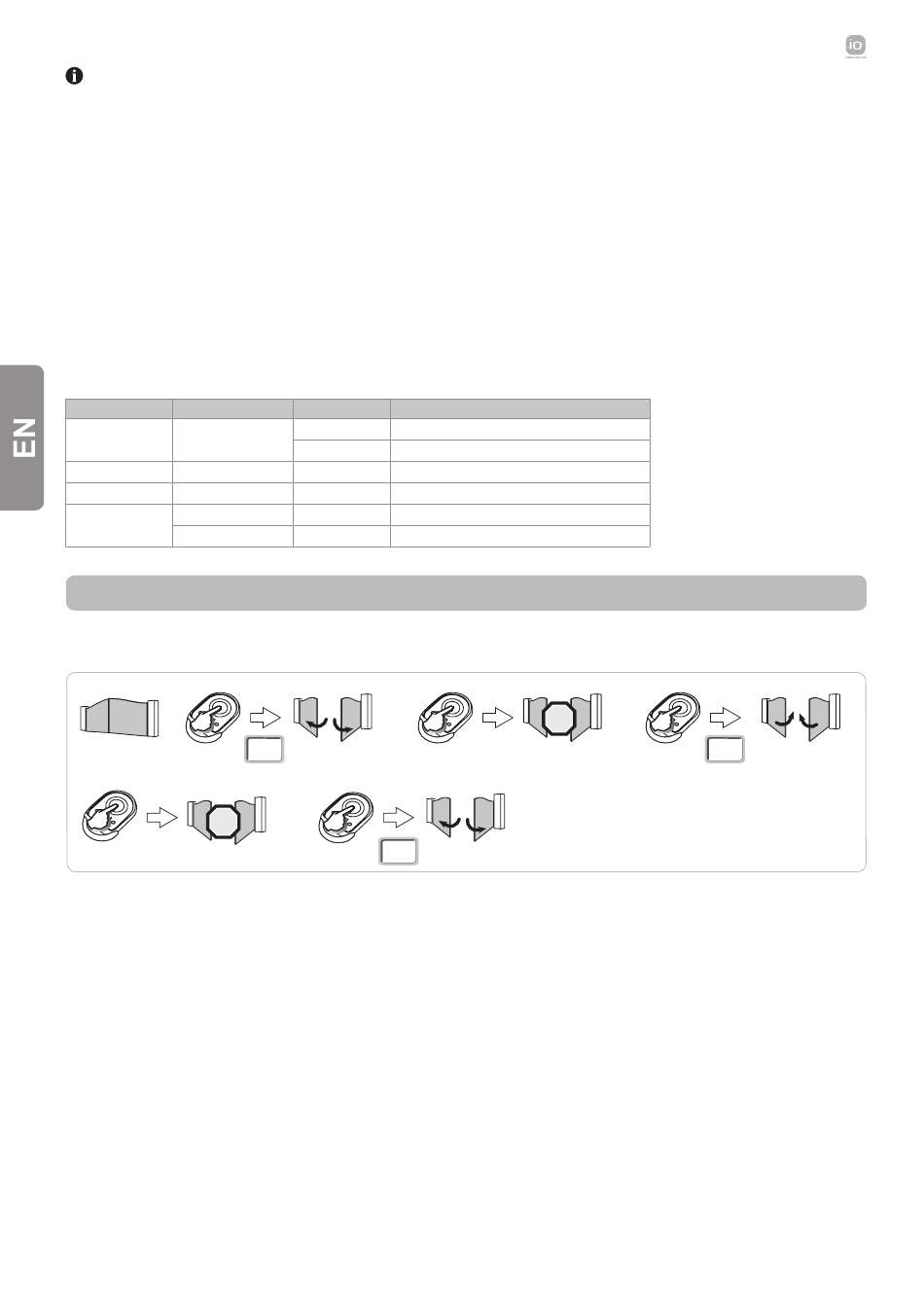

OpERATINg TEST

using Keygo io remote controls

Default sequential operating mode (P01=0)
STOP

Obstacle detection operation

Obstacle detection when opening = stop + partial reversal.
Obstacle detection when closing = stop + complete reopening.

Operation of the photoelectric cells

with the photoelectric cells connected to the dry/Cell contact (terminals 23-24) and Cell safety input parameter p07 = 1.
Cells obscured with gateopen = the gate cannot be moved until the operating mode changes to deadman operation (after 3 minutes).
Cells obscured when opening = the state of the cells is not taken into account and the gate continues to move.
Cells obscured when closing = the gate stops and reopens fully.

Anti-intrusion operation, wind resistance

(on Control Box 3S Axovia io models)
Maintains the gate in the closed or open position by reinjecting current in case of attempted intrusion or strong wind.

Specific operation

See the user booklet.
7
gate leaf weight Standard EN 12453 compliance (appendix A)
< 150 kg Compliant*
150 kg to 300 kg To be confirmed
< 200 kg Compliant*
< 200 kg To be confirmed
< 100 kg Compliant*
100 kg to 400 kg To be confirmed
C2
C2
STOP
C4
