Control Box 3S io

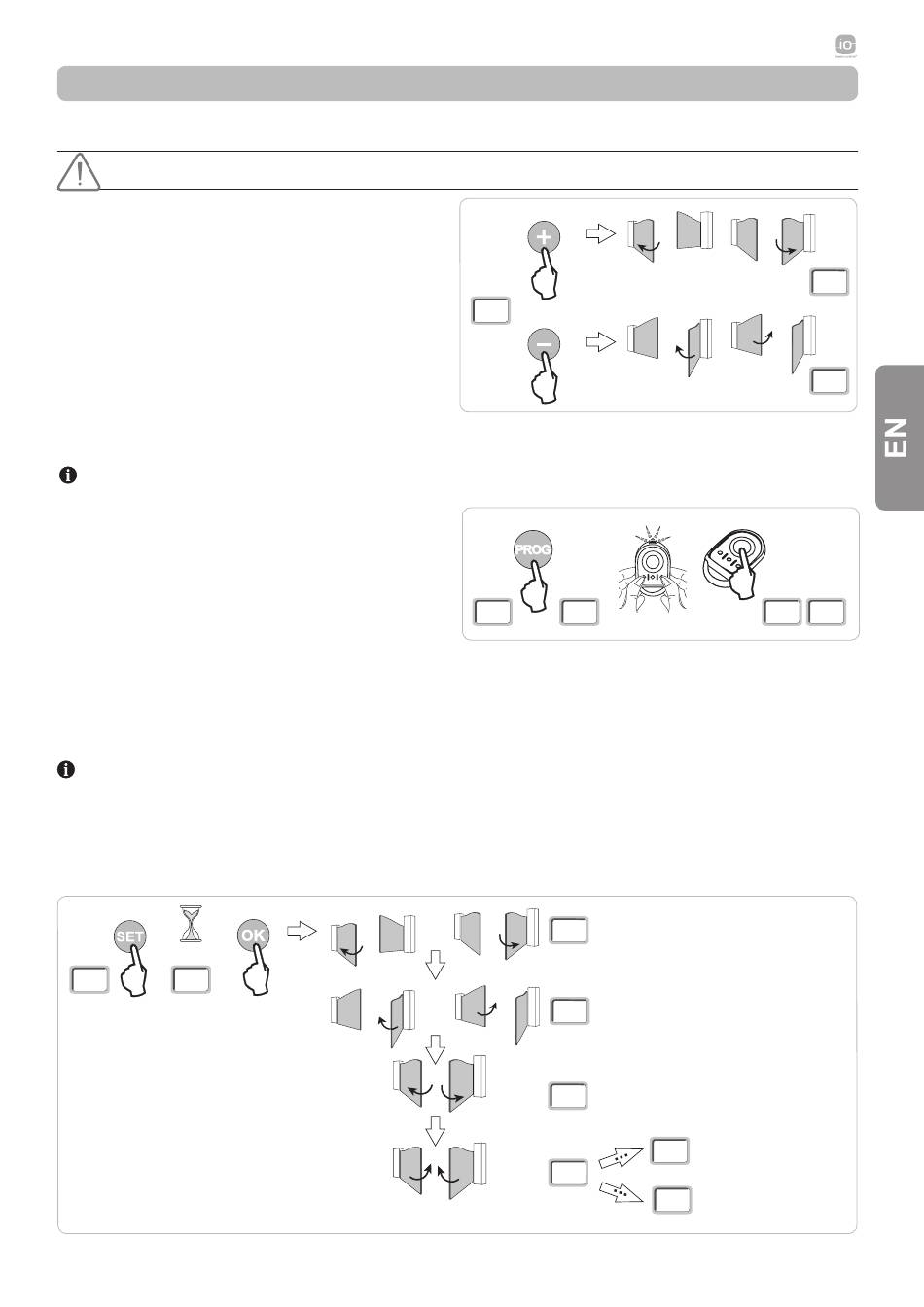

quICK COMMISSIONINg

Check the motor wiring and the opening direction of the gate leaves

During this operation, secure the area and prevent anyone from entering it.
Manually place the gate leaves in the intermediate position and lock the
motors.
Actuate the motors by pressing and holding the "+" or "-" button.
• "+" opens the gate leaf controlled by M1 then the gate leaf controlled
by M2.
• "-" closes the gate leaf controlled by M2 then the gate leaf controlled
by M1.
If the gate leaf movement controlled by M1 and/or M2 is not correct, reverse
the M1 wires on terminals 11 and 12 and/or the M2 wires on terminals 14
and 15.

Memorising the Keygo io remote controls for operation in complete opening mode

To memorise Keytis io type bidirectional remote controls, see pages 16 and 17.
If this procedure is carried out using a channel which has already been
memorised, this channel will be cleared.
[1]. Press and hold the "pROg" button (2 s) on the programming interface.
The screen displays "f0".
[2]. Press the outer left and right buttons on the remote control
together.
The remote control indicator light flashes.
[3]. Press the button of the remote control that will open the
gate fully.
The screen displays "Add".

Auto-programming

Auto-programming enables the travel, motor torques and gate leaf closing shift to be adjusted.
place the gate leaves in the intermediate position.
[1]. Press and hold the "SET" button (2 s).
release the button when the screen displays "h1".
[2]. Press "OK" to start auto-programming.
The gate performs two complete Opening and Closing cycles.
• If auto-programming is correct, the display indicates "C1".
• If auto-programming has not completed correctly, the display indicates "h0".
[1] [2]
STOP
2 s
h0 h1
2 s
STOP
Copyright © 2015 Somfy SAS. All rights reserved
STOP
then
STOP
then
STOP
STOP
STOP
h0 or
[1] [2]
2 s
h0 f0
h2
STOP
h4
STOP
h2
h4
C2
C4
[3]
Add h0
C1
Auto-programming correct
h0 Auto-programming incorrect
STOP
