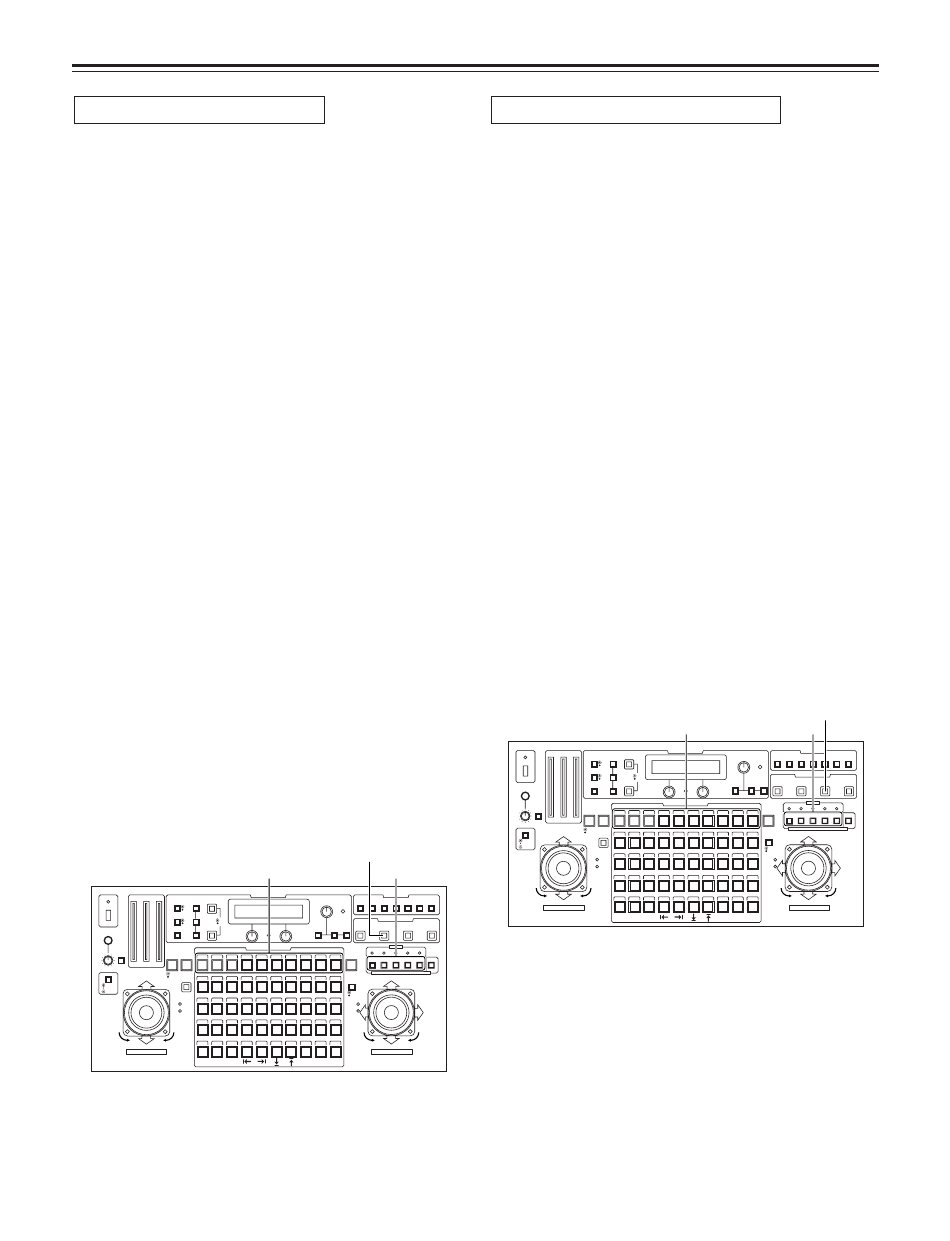

Operation
Recalling tracing memory data
1. Select
the
pan-tilt
CONTROL/PREVIEW MONITOR OUT SEL button.
2. Press the button in which the tracing memory data to be
recalled has been entered.
The pan-tilt head system is set to the start position
entered in the tracing memory.
3. After the pan-tilt head system has been set to the tracing
memory start position status and then stopped, press the
button in which the tracing memory data has been
entered again .
The pan-tilt head system now starts the operations
entered in the tracing memory.
<Notes>
O When the AW-PH350 is used as the pan-tilt head, no
operations will be acknowledged even if the button in
which the tracing memory data has been entered is
pressed before the head is set to the start position
status.
If, when a model other than the AW-PH350 is used as
the pan-tilt head, the button in which the tracing
memory data has been entered is pressed before the
head is set to the start position status, the operations
of the series of settings stored in the memory will be
performed again from the position where the button
was pressed.
Therefore, the button in which the tracing memory
data has been entered must be pressed after the pan-
tilt head system has been set to the tracing memory
start position status and stopped.
O Press the START/STOP button to suspend the recall
of the data from tracing memory at any time.
This recall can also be suspended as soon as the
pan, tilt, zoom or focus operation has been initiated.
O The buzzer sounds when tracing memory data recall
is started or suspended and when the data recall is
completed.
OPERATE
IRIS
ZOOM
FOCUS
OPEN
TELE
FAR
WHITE
AWC
GAIN
BAL
AUTO
ON
A
MANU
MODE
BAR
NG
B
OFF
CAM
OK
ABC
DATA SET
INCOM
ATW
TRACING/PRESET MEMORY
CALL
1
2
3
4
TR/PSET M.LOCK
CLOSE
WIDE
NEAR
LEVEL
TR
IRIS
TELE
PSET
MEMORY
11
12
13
14
AUTO
MANU
LOCK
EMPTY
21
22
23
24
IRIS
FOCUS
31
32
33
34
41
42
43
44
CLOSE
OPEN
NEAR
WIDE
FAR
ZOOM/FOCUS/IRIS
LIMIT
ON
head
system
using
START/STOP
2
1
CAMERA CONTROL
PAN/TILT SET
LAMP
DEF
WIP
H/F
EXT
ND
OPTION
LCD
CONTRAST
TRACING MEMORY
START
R/B
POINT
START/STOP
RESTORE
RESET
CAMERA
GAIN/PED
MENU
OK
CONTROL
TALLY
5
6
7
8
9
10
PRIORITY
1
2
3
4
5
AUX
CONTROL/PREVIEW MONITOR OUT SEL
15
16
17
18
19
20
UP
SPEED
LOW
FULL
HIGH
25
26
27
28
29
130
IRIS
FOCUS
L
R
35
36
37
38
39
40
45
46
47
48
49
50
CLOSE
OPEN
NEAR
DOWN
FAR
PAN/TILT/FOCUS/IRIS
LIMIT
OFF
Making changes to the tracing memory
the
1. Select
the
pan-tilt
CONTROL/PREVIEW MONITOR OUT SEL button.
2. Press the button in which the tracing memory data to be
changed has been entered, and call the start position of
the tracing memory.
3. Press the RESTORE button.
The RESTORE button's lamp flashes, and the start
position setting of the tracing memory can be changed.
<Note>
The change mode is canceled if the START/STOP
button is pressed at this point.
4. Press the RESTORE button again.
The pan-tilt head system starts performing the
operations entered in the tracing memory, and the
RESTORE button's lamp stops flashing and comes on.
As with the data entry process, buttons No. 11 through
No. 30 serve as a general guideline for the time.
5. The tracing memory operations are changed.
<Note>
Partial changes cannot be made to tracing memory
operations. Enter all the operations again starting from
the point where the change is made.
6. As soon as the lamp in button No. 11 goes off, the
buzzer sounds, and the tracing memory change is
completed.
IRIS
ZOOM
FOCUS
OPERATE
OPEN
TELE
FAR
WHITE
GAIN
BAL
AUTO
ON
A
MANU
MODE
BAR
B
OFF
CAM
DATA SET
INCOM
ATW
CALL
TR/PSET M.LOCK
1
CLOSE
WIDE
NEAR
LEVEL
IRIS
TR
PSET
TELE
11
MEMORY
AUTO
MANU
LOCK
EMPTY
21
IRIS
FOCUS
31
41
CLOSE
OPEN
NEAR
WIDE
FAR
ZOOM/FOCUS/IRIS
LIMIT
ON
33
head
system
using
2
CAMERA CONTROL
PAN/TILT SET
AWC
LAMP
DEF
WIP
LCD
CONTRAST
TRACING MEMORY
NG
OK
START
ABC
R/B
START/STOP
POINT
CAMERA
MENU
OK
GAIN/PED
CONTROL
TRACING/PRESET MEMORY
2
3
4
5
6
7
8
9
10
PRIORITY
1
2
CONTROL/PREVIEW MONITOR OUT SEL
12
13
14
15
16
17
18
19
20
SPEED
LOW
FULL
HIGH
22
23
24
25
26
27
28
29
130
IRIS
FOCUS
L
32
33
34
35
36
37
38
39
40
42
43
44
45
46
47
48
49
50
CLOSE
NEAR
PAN/TILT/FOCUS/IRIS
LIMIT
OFF
the
3•4
1
H/F
EXT
ND
OPTION
RESTORE
RESET
TALLY
3
4
5
AUX
UP
R
OPEN
DOWN
FAR
