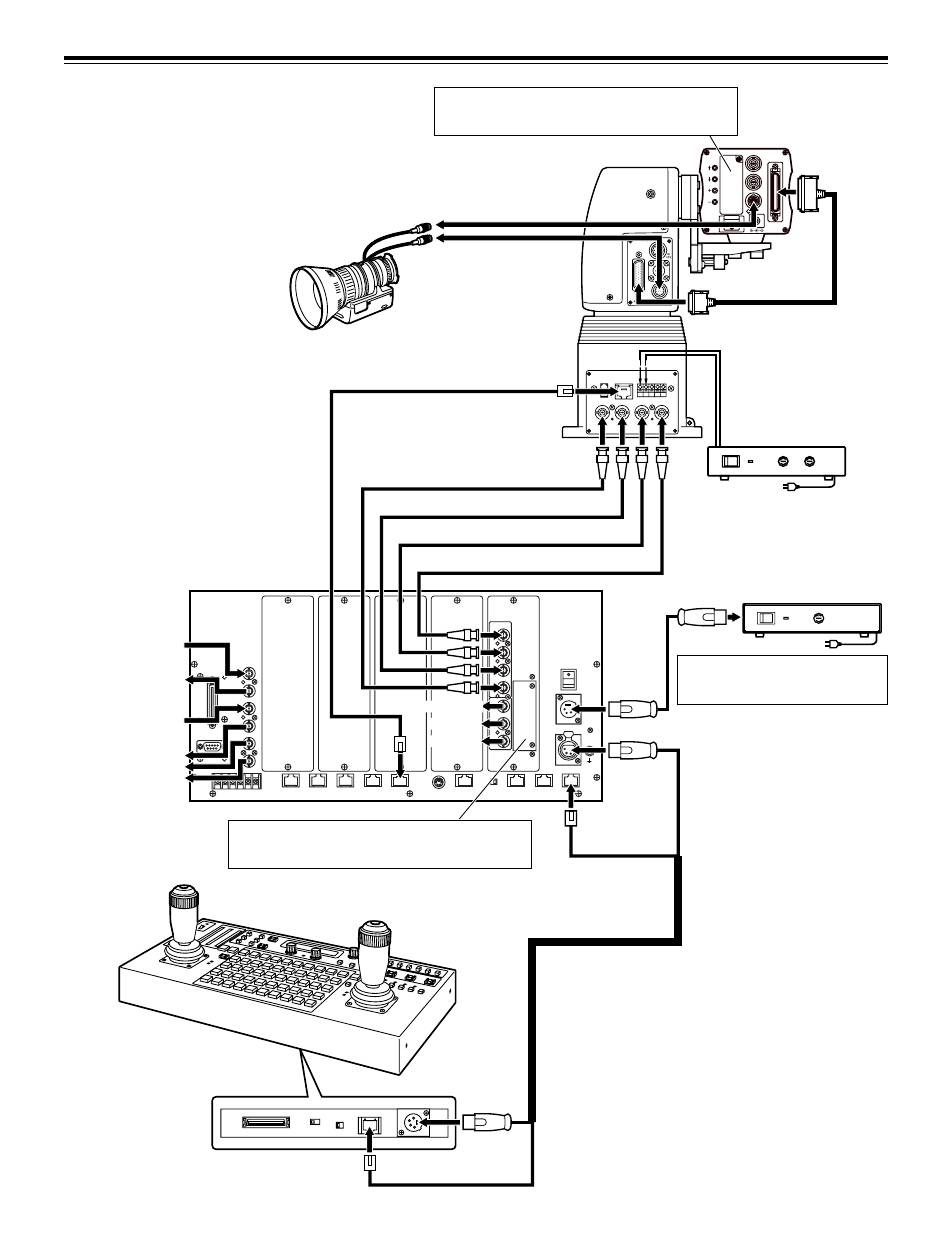

Connections
Main unit
G/L signal input
G/L through signal
output
AUX signal input
Video monitor output
When an optional card is to be installed in the multi-
function controller, the AW-PB302 RGB card (optional
accessory) must be installed in the convertible camera.
Control panel
When component signals are to be used as the video
signals, the AW-PB302 RGB card (optional accessory)
must be installed in the convertible camera.
Iris control
Zoom lens
Zoom/focus control
Pan-tilt head system control signals
G/L signal
Pb signal
Pr signal
Y/VIDEO signal
Y/VIDEO signal
Pr signal
Pb signal
Pan-tilt head:
AW-PH350
DC12V
CONTROL IN
IN
1394
IP/RP
G/L I N Pb OUT Pr /SDI
OUT
Connector cable
(accessory)
17
Convertible camera
Pan-tilt head cable:
AW-CA50T29
(for composite signal)
AW-CA50C29
(for component signals)
C S OP
AC adapter:
Y/VIDEO
AW-PS300
OUT
O I
AC adapter:
AW-PS505
FUSE
Use the AC adapter (AJ-B75) to install
additional three or more AW-PB605
video boards.
