Connections

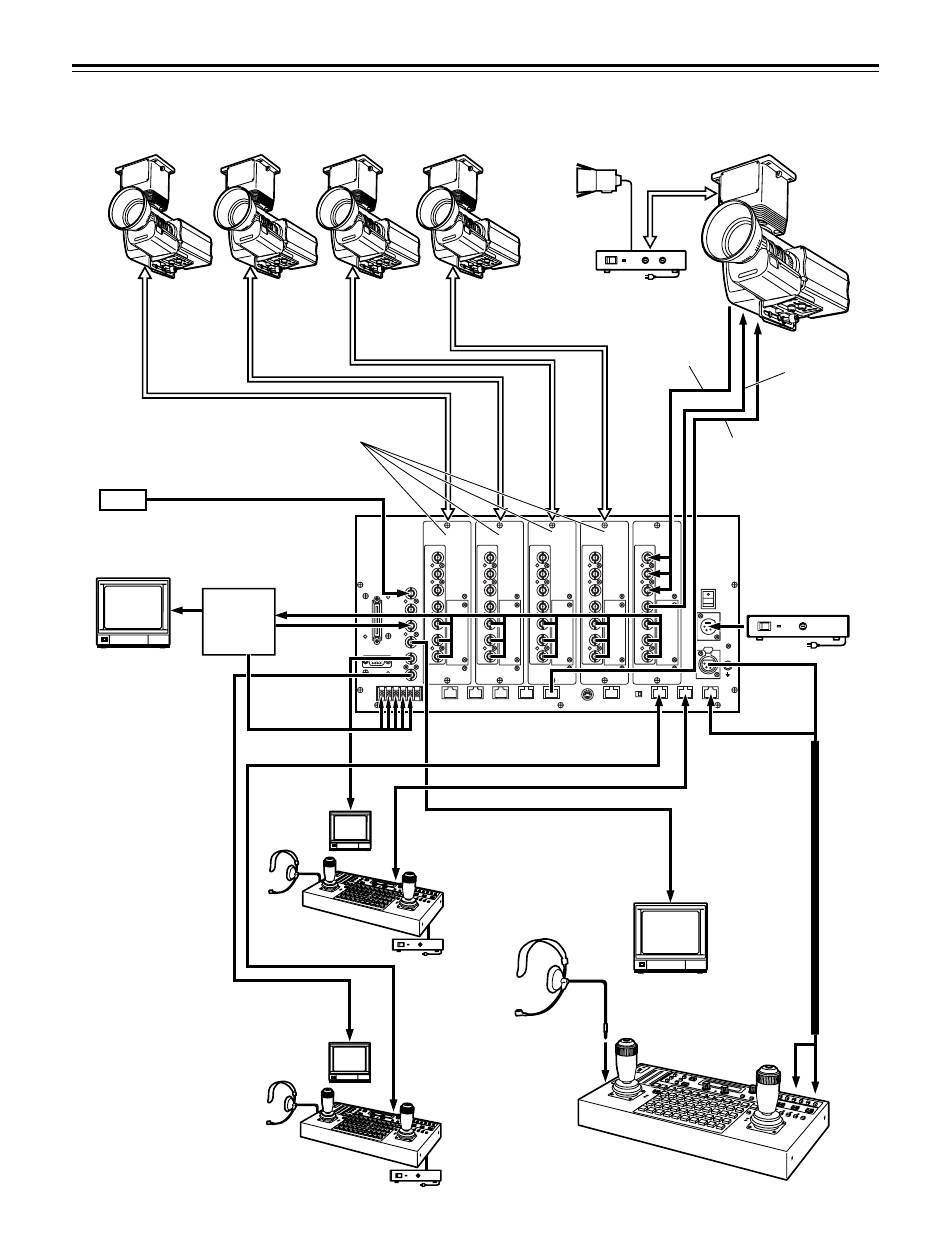

Example of system configuration
Genlock signal generator
Switcher, special
effects generator,
etc.
Preview color monitor
(75 Ω terminator)
Video board:
AW-PB605
VIDEO/Y
Pb
Pr
AUX
System
tally
Remote control panel:
AW-RP615
FUSE
AC adapter:
AW-PS505
FUSE
Halogen lamp
O I
AC adapter:
AW-PS300
Main unit
Inter-communications
headset
Preview color monitor
(75 Ω terminator)
Control panel
19
Pan-tilt head system
VIDEO/Y
G/L signal
Pb
Pr
Pan-tilt head system
control signal
AC adapter:
AW-PS505
FUSE
