1.2.3 BATTERY CONNECTION

• The battery shipped with the generator has been provided fully charged.
Caution must be taken when connecting the battery.
A battery may lose some of it's charge when not in use for prolonged
periods of time.
• Cut the tie wrap cable holding the RED and BLACK battery cables to
the stator.
• Connect the RED battery cable to the battery Positive terminal (+).
After making sure that the connection is tight, slip the rubber boot over
the terminal connection.
• Connect the BLACK battery cable to the battery Negative terminal (–).
Make sure the connection is tight.
• Double check all connections to ensure they are in the correct location
and secure. See Figure 3.

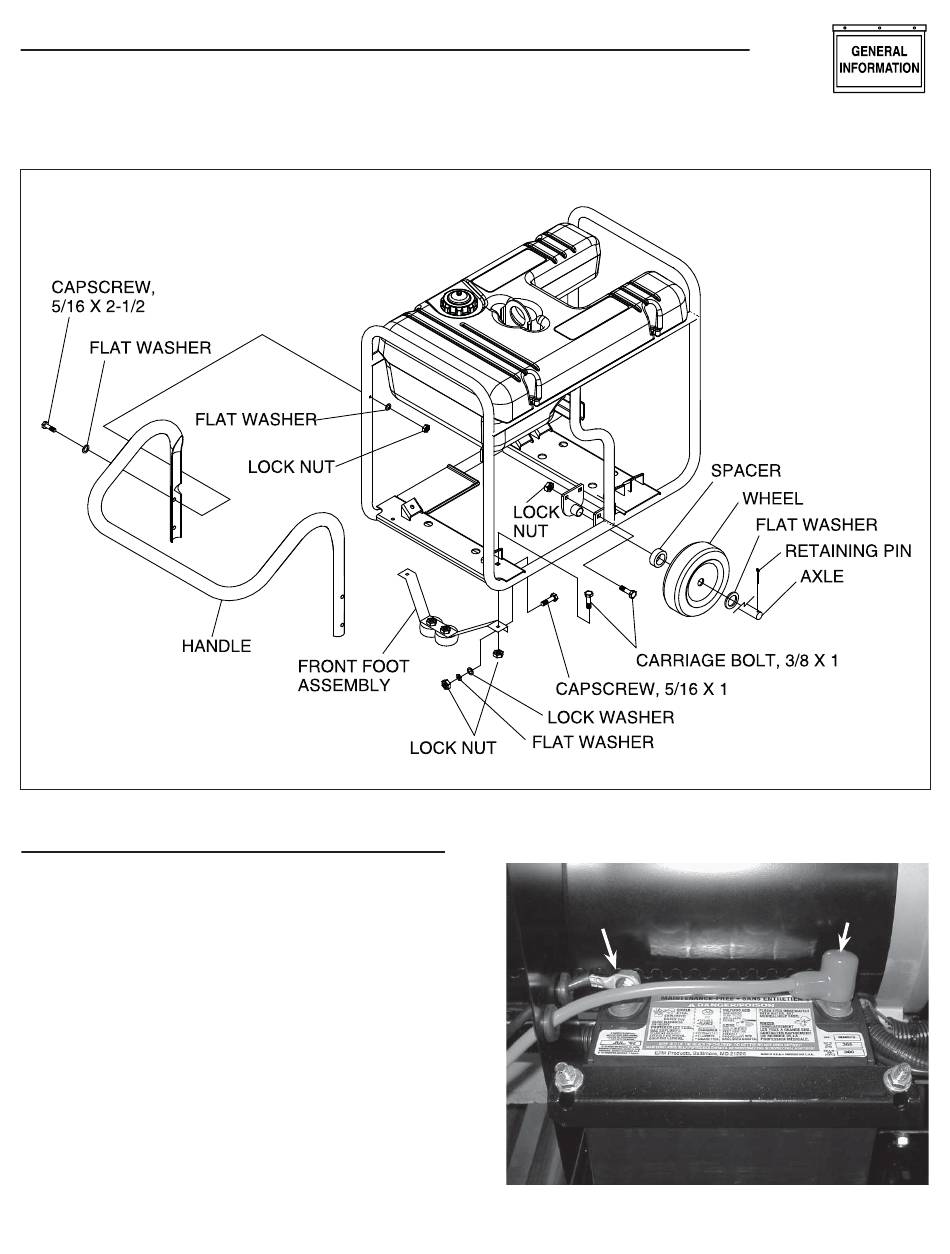

Figure 2 - Handle Assembly
NOTE:
Section 1 - General Information
Figure 3 - Battery Connections
Negative
Cable
Positive
Cable
