3/4 (19 mm) or Raised Panel
A raised panel design screwed or glued to a 1/4 (6 mm) thick backing, or a 3/4 (19 mm) routed board can be used. The raised
portion of the panel must be fabricated to permit clearances of at least 2 (5.1 cm) from the handle side for fingertip clearance.
Panels thicker than 1/4 (6 mm), up to 3/4 (19 mm) max., will require that the outer 5/16 (8 mm) of panel perimeter be no thicker
than 1/4 (6 mm).
Weight limitations for custom panels:
Fresh Food 10 lbs. (4.5 kg) max. for each door
Freezer Door 18 lbs. (8 kg) max.

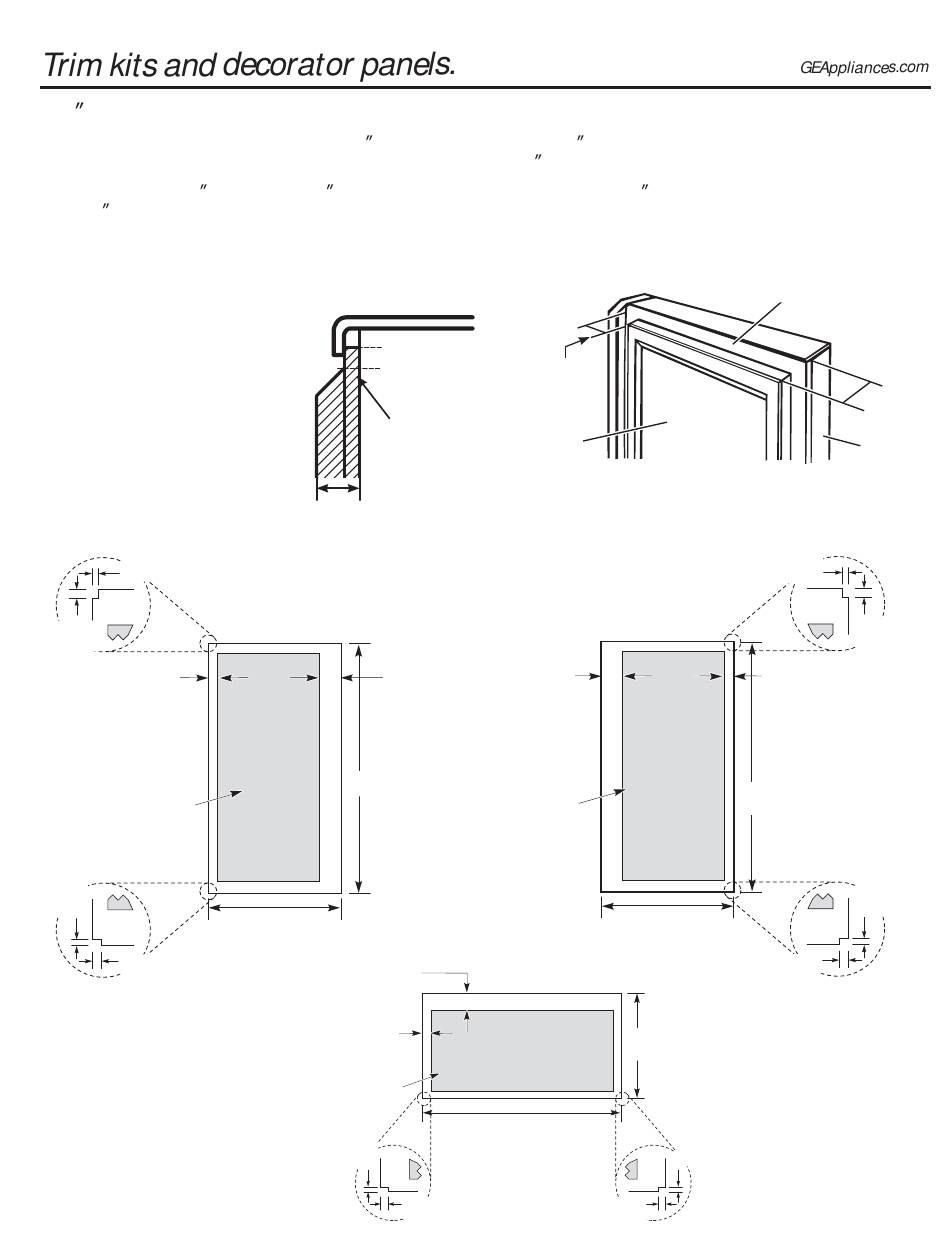

Dimensions for Custom Wood Panels
1/8"
(3 mm)
Left Fresh Food Door
1/4"
(6 mm)
5/16" (8 mm)
minimum at
1/4" (6 mm)
thickness
Top, left and
bottom
Raised portion
of panel
1/8"
(3 mm)
16 29/32" (42.9 cm)
1/4"
(6 mm)
Panels thicker than 1/4" (6 mm)
5/16" (8 mm)
1/4" (6 mm) max
3/4" (19 mm)
2" (51 mm)
minimum at
1/4" (6 mm)
thickness
Handle side
38 15/16"
(98.9 cm)
2" (51 mm) minimum at
1/4" (6 mm) thickness
Handle side
5/16" (8 mm) minimum at
1/4" (6 mm) thickness
Left, right and
Raised
bottom sides
portion
of panel
1/8"
(3 mm)
1/4"
(6 mm)
2" (5.1 cm)
Clearance
Handle Side
Appearance
Panel
Right Fresh Food Door
2" (51 mm)
minimum at
1/4" (6 mm)
thickness
Handle side
Raised portion
of panel
16 29/32" (42.9 cm)
Freezer Door
26 3/32"
(66.3 cm)
35 29/32" (91.2 cm)
1/4"
(6 mm)
1/4" (6 mm)
Thick Backing
1/8"
(3 mm)
5/16" (8 mm)
minimum at
1/4" (6 mm)
thickness
Top, right and
bottom
38 15/16"
(98.9 cm)
1/4"
(6 mm)
1/8"
(3 mm)
3/4"
(19 mm)
Refrigerator
Door
1/4"
(6 mm)
1/8"
(3 mm)
