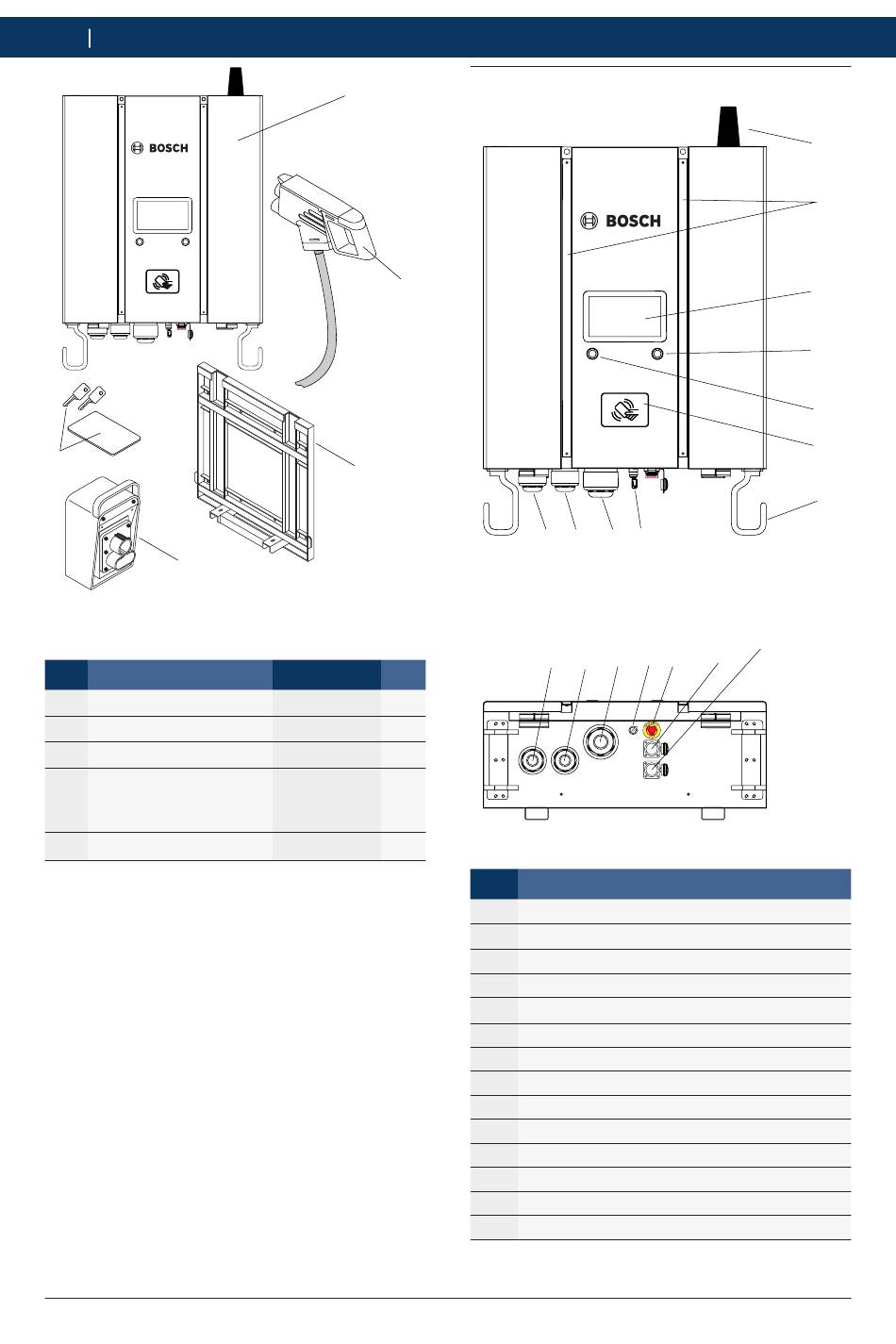

6 | EV 3000 | Product Description
5
4
Fig. 2:
Included items
Item Kit Component
1
Power Unit
2
Replacement CCS cable
3
Wall Mounting Bracket
4
Connector Dock
5
Accessory kit (RFID, key,
manual)
-
Pedestal (optional)
Tab. 1:
Items included
!
If the EV 3000 and the scope of delivery are
operated contrary to the way specified in
the operating instructions, the protection
provided by the EV 3000 and the supplied
accessories may be compromised.
|
SP0 150 2139
VER.00
1
2
3
Part number
Qty.
EV3000
1
1699503901
1
1699503900
1
1699503904
1
1699503902
1
1699503903
1
4.3
EV 3000 Ports and Controls
11
14
13
12
14
13
12
Ports and Controls
Fig. 3:
Item Description
1
Antenna
2
Indication Light
3
7" Information Screen
4
Right Button
5
Left Button
6
RFID Card Reader
7
CCS Connector Cable Holder
8
RJ45 Port
9
USB Port
10
Emergency Stop
11
Key Switch (Power On/Off)
12
AC Cable Inlet
13
Charging Cable Outlet
14
Charging Cable Outlet
Tab. 2:
Ports and Controls list
© Bosch Automotive Service Solutions Inc.
8
9
11
10
PUSH
1
2
3
4
5
6
7
