Adjusting the active movement

In order to achieve an even more effective, comfortable tilting of the saddle, the extent of the active movement can be adjusted on the
active models. This is achieved with the model 610 Ergolux active (2.0) by means of exchangeable elastomers.

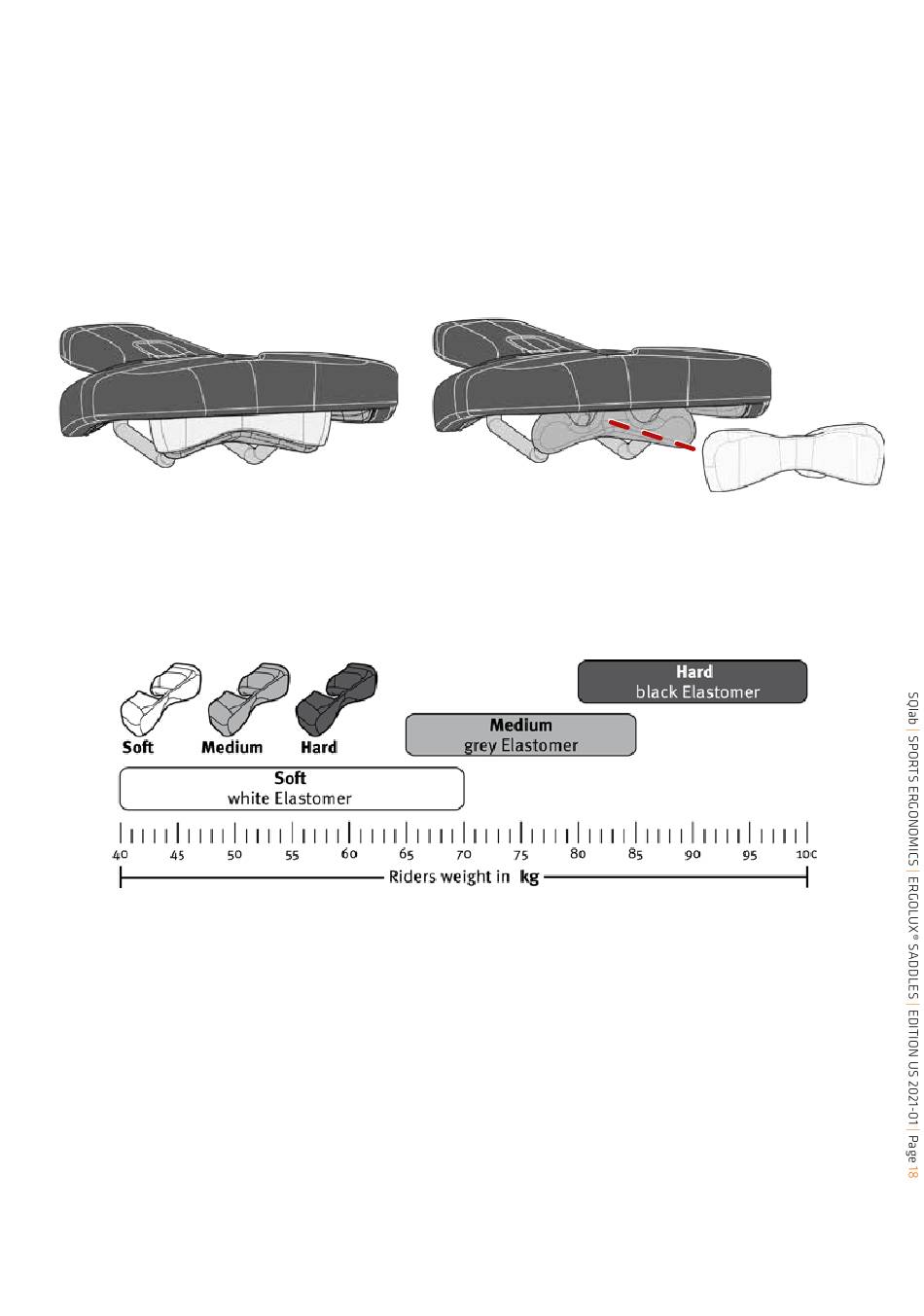

Elastomer configuration SQlab 610 ERGOLUX
Figure 2: SQlab 610 ERGOLUX active (2.0)
®
with inserted elastomer
The extent of the tilting movement of the SQlab 610 Ergolux active 2.0 can be adjusted by replacing the elastomer. The saddle is supplied
with 3 elastomers, which differ in hardness and corresponding colours and are selected according to the rider's weight.
The elastomers are not screwed or glued, but only clamped and can be pulled out backwards by hand.
active (2.0)
®
Figure 3: SQlab 610 ERGOLUX
with removed elastomer
active (2.0)
®
