Light Kit Assembly - Emerson LURAY ECO CF860B000 Mode D'emploi

Skip to Section 6.0 if not installing the
supplied light kit.

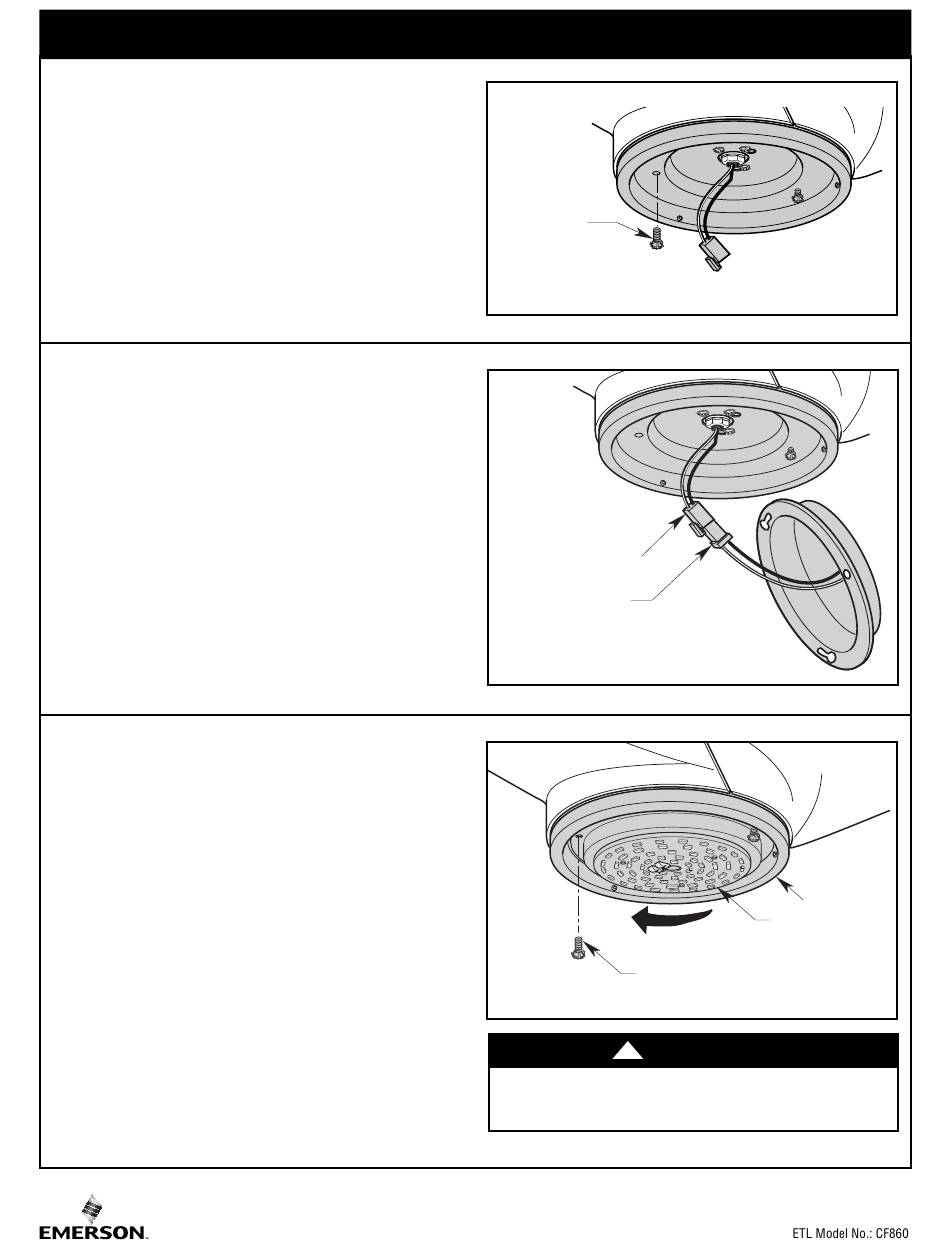

5.1
Remove one of the three screws in the Light Kit Adapter
and loosen the remaining two screws (Figure 17).
Retain the screw for future use.
5.2
Engage the fan motor 2-pin wire connector into the 2-
pin wire connector of the Light Kit Assembly (Figure 18).
The connection is complete when you hear a soft click.
5.3
Carefully tuck all the wires and connectors into the Light
Kit Assembly.
Position the Light Kit Assembly key hole slots onto the
two loosened screw heads. Rotate the Light Kit
Assembly clockwise to engage the two screw heads
(Figure 19). Verify that the wires and connectors are not
trapped between the Light Kit Assembly and the Light
Kit Adapter.
Reinstall the previously removed screw.
Retighten all three screws to securely attach the Light
Kit Assembly to the Light Kit Adapter.
A spare Light Kit Adapter #6-32 x .375" pan head screw
is in the parts bag, if needed.

5. Light Kit Assembly

12
REMOVE LIGHT
KIT ADAPTER PAN
HEAD SCREW
Figure 17
FAN MOTOR ASSEMBLY
2-PIN CONNECTOR
LIGHT KIT ASSEMBLY
2-PIN CONNECTOR
Figure 18
ROTATE CLOCKWISE
REINSTALL LIGHT KIT
ADAPTER PAN HEAD SCREW
Figure 19
WARNING
!
To avoid possible fire or shock, do not pinch wires
between the Light Kit Assembly and the Light Kit
Adapter.
LIGHT KIT
ADAPTER
LIGHT KIT
ASSEMBLY
