Installation

2.2. Mechanical Installation Series 20/30

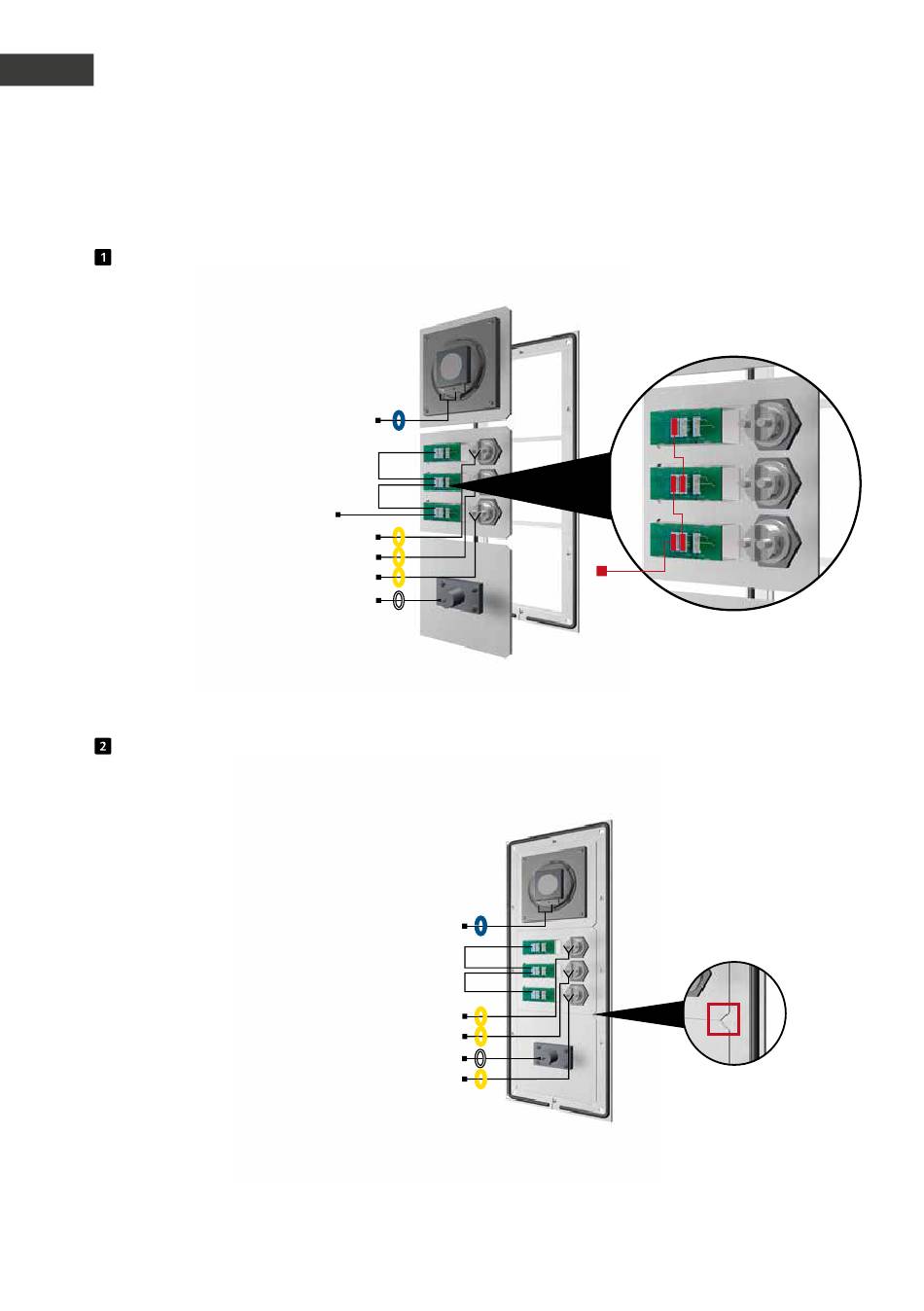

Insert function module into the front frame
Illumination 12 V=
Insert the modules on the reverse side of the frame.
Function modules inside front frame
When returning the modules, please maintain the anti-rotation locking and please also ensure that
module latches with an audible "click".
43
LP
Bridges
RT
T
RT
T
RT
T
Mik
LP
RT
RT
Mik
RT
Illumi-
nation 12 V=
12 V bridges to illuminate
the label areas
T
T
T
