4. ASSEMBLY INSTRUCTIONS

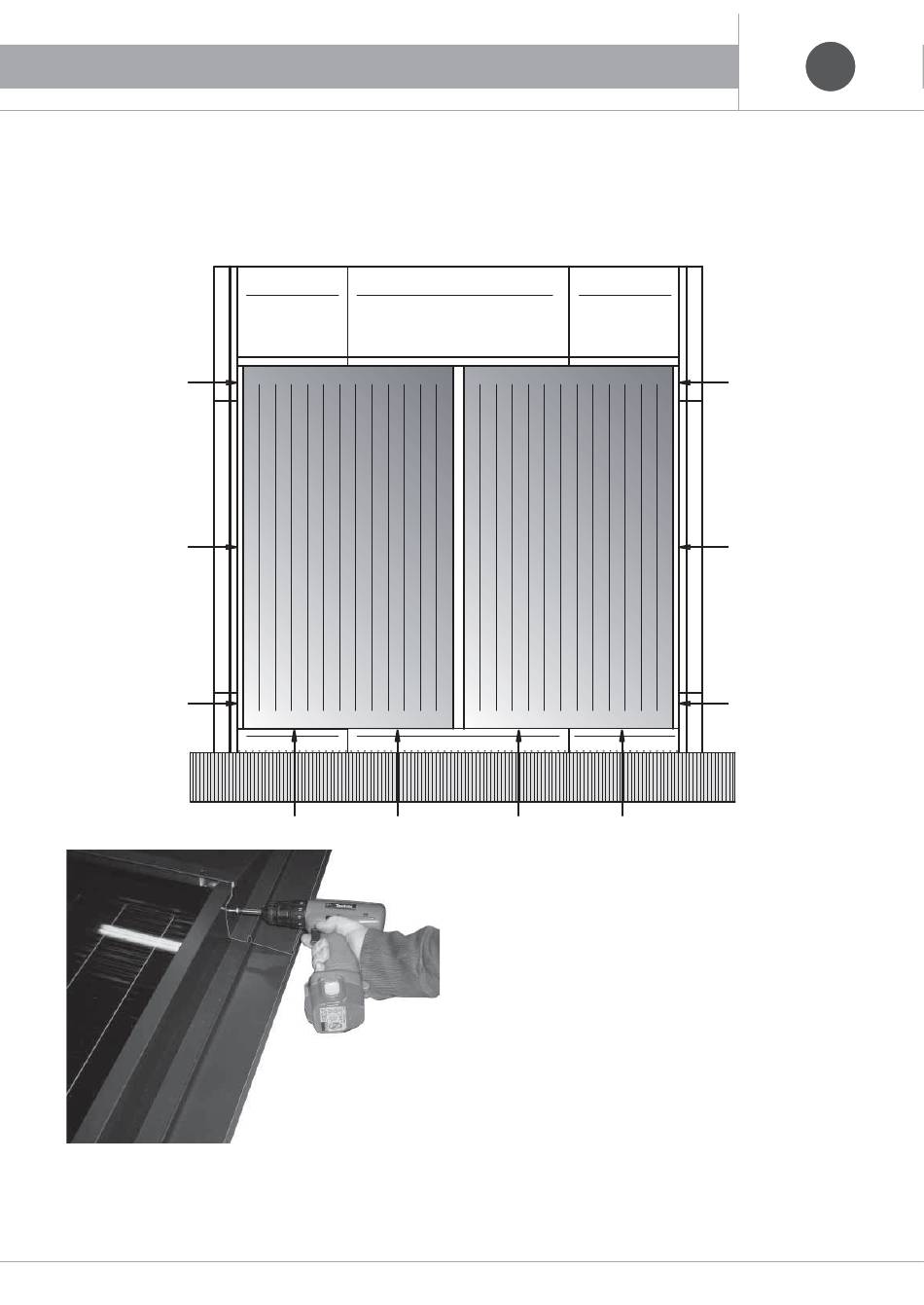

19) The ridge cap equipment should then be secured to the wooden pro-
file of the collector using the ten steel screws and washers provided
(eight in the basic kit and two in the extension kit). The lower, upper
and side corner pieces in particular should be secured in place (fig. 19
and 19a);
Fastening screws
Ridge cap equipment
Fig. 19
20) At this stage, reposition the parts of the roof, minimising the empty
spaces between the roofing and the ridge cap equipment.
