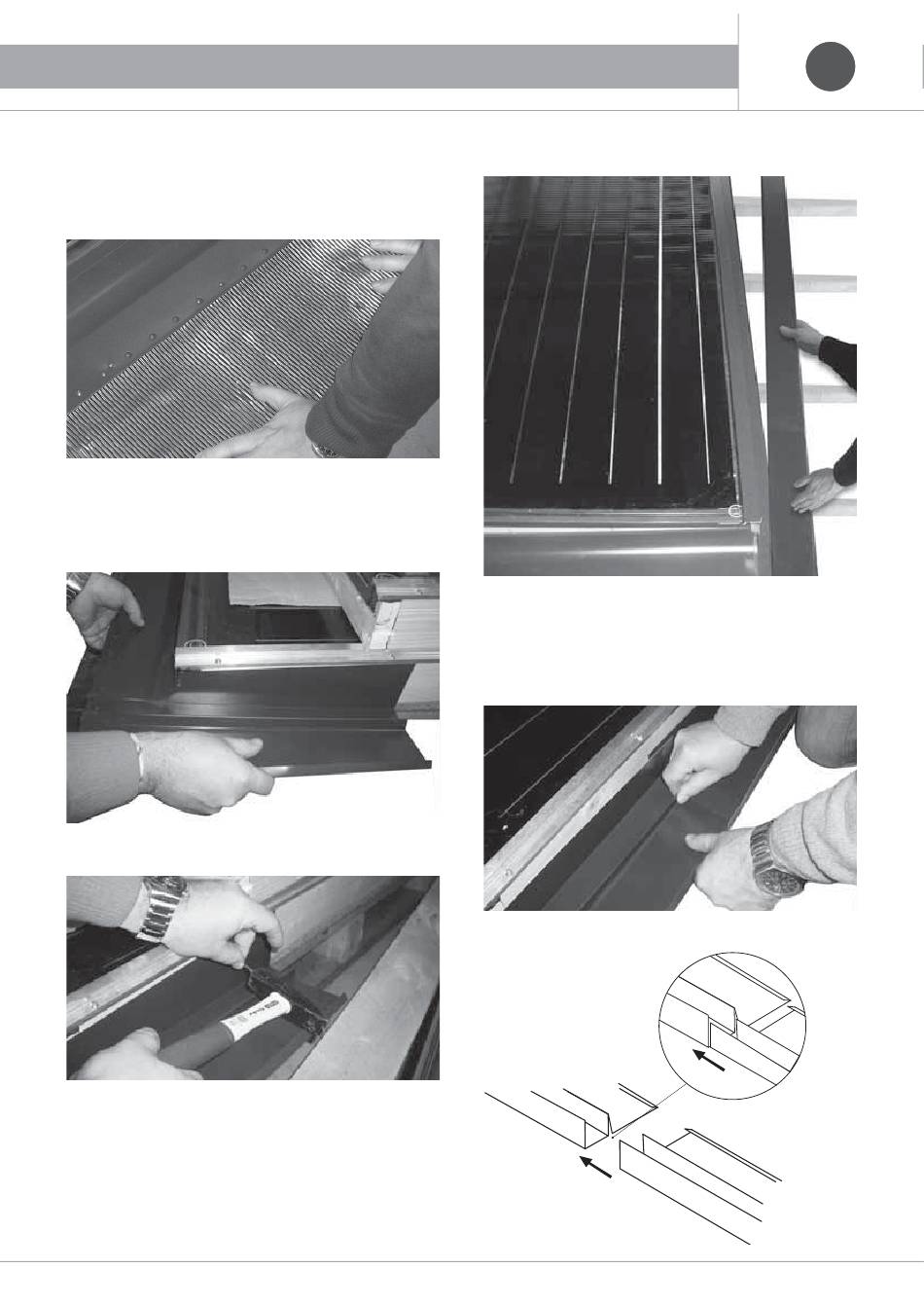

4. ASSEMBLY INSTRUCTIONS
12) Shape the lead sheet of the two lower corner pieces and of the
extension onto the roof so that there are no interruptions between
the sheet and the roofing (fig. 12);
Fig. 12
Make sure the two corner pieces rest against the aluminium profiles of
the collector side panels and then secure them to the wooden frame
using the nails provided (fig. 13 and 13a);
Fig. 13
Fig. 13a
14) Fit the left and right side corner pieces. So that they are aligned with
the upper edge of the wooden collector profile (fig. 14).
36
Fig. 14
These should be placed on top of the lower corner pieces you previously
fitted so that part X of the profile of the side corner pieces overlaps
the corresponding part Y of the profile of the lower corner pieces (fig.
14a and 14b);
Fig. 14a
X
Fig. 14b
GB GB
Y
