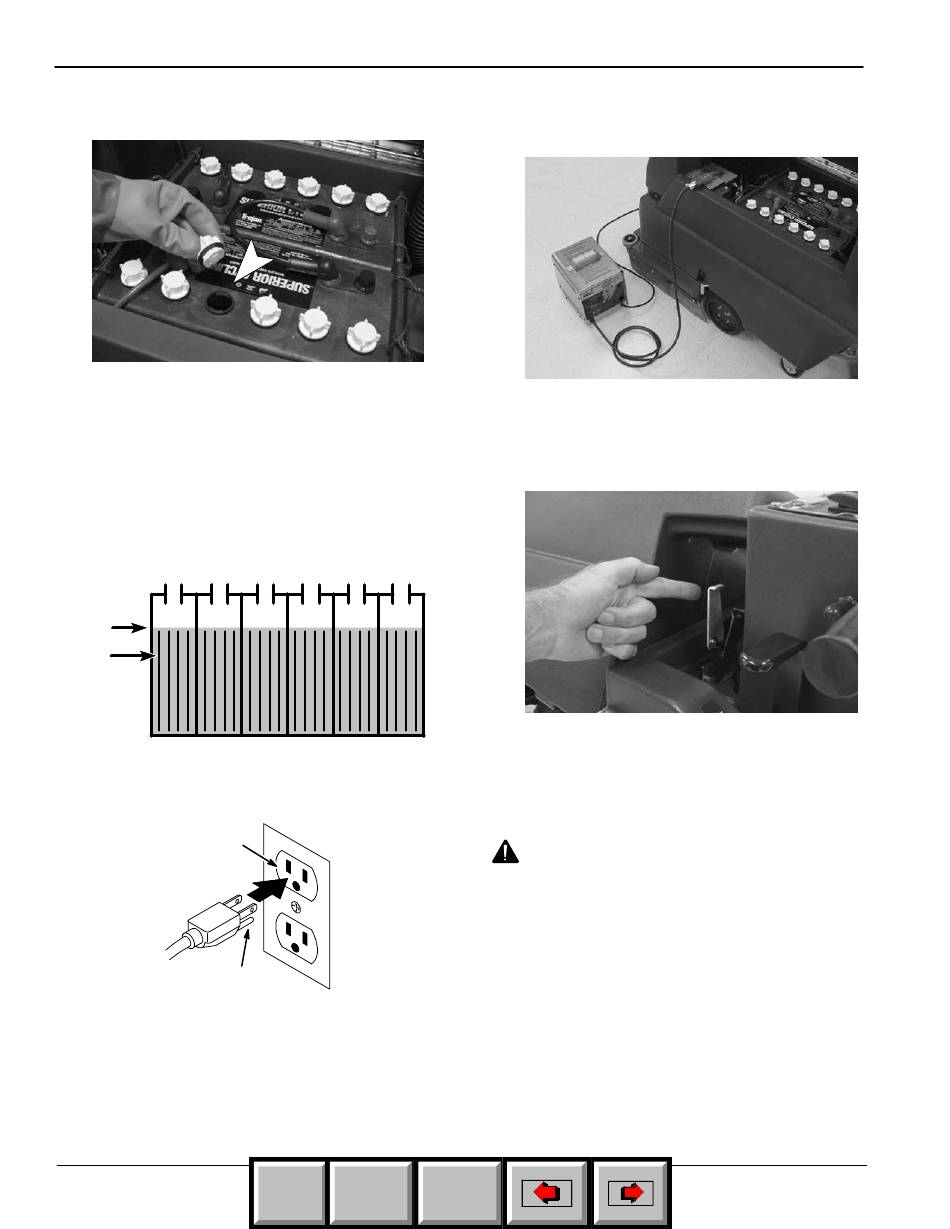

OPERATION
2. Before charging the batteries, check the
electrolyte level in each battery cell (Figure 26).
FOR SAFETY: When servicing machine, wear
protective gloves and eye protection when
handling batteries or battery cables. Avoid contact
with battery acid.
The electrolyte level (A) should slightly cover the
battery plates (B). Add distilled water as needed.
DO NOT OVERFILL, the fluid may expand and
overflow while charging. Replace cell caps before
charging (Figure 27).
A
B
3. Connect the charger's AC power supply cord to a
properly grounded receptacle (Figure 28).
Grounded
3 Hole Outlet
Ground Pin
16
FIG. 26
FIG. 27
FIG. 28
Home Find... Go To..
4. Plug charger's DC output connector to battery
connector located near battery compartment
(Figure 29).
FIG. 29
5. The charger will automatically begin charging and
shut off when fully charged.
6. Rest the recovery tank on the support stand to
promote ventilation during charging (Figure 30).
FIG. 30
ATTENTION: Do not disconnect the charger's DC
cord from the machine's receptacle when the
charger is operating. Arcing may result. If the
charger must be interrupted during charging,
disconnect the AC power supply cord first.
WARNING: Fire Or Explosion Hazard.
Batteries Emit Hydrogen Gas. Keep Sparks And
Open Flame Away. Keep Battery Compartment
Open When Charging.
