8. MAINTENANCE

Before any operations it's necessary to disconnect the
power supply.
If required ask to an electrician or to an expert
technician.
Every maintenance operations, cleaning or
reparation executed with the electrical system
under voltage, it could cause serious injuries
to people.
In case of extraordinary maintenance, or maintenance
operations that require part-removing, the operator
must be a qualified technician able to read schemes
and drawings.
It is suggest to register all maintenance operation
executed.
During maintenance keep particular attention
i
in order to avoid the introduction of small
external parts, that could compromise the
device safety.
During maintenance
i
personnel is not allowed.
Maintenance operations that are not described in
this manual must be made only by special personnel
authorized by Calpeda S.p.A.
For further technical information regarding the use
or the maintenance of the device, contact Calpeda
S.p.A.

9. DISPOSAL

OFF
Observe the local regulations and dispose of any
control gear accordingly. This product contains
electrical and electronic components and should be
disposed accordingly.
Separate the components using anti-cut water
resistant gloves. Is preferred to help to make a further
use or dismantling.
Observe the local regulations and dispose the device
accordingly with the international rules for environment
protection.

10. SPARE PARTS

10.1. Spare-parts request
In case of spare parts request, specify the code of the
control box.
The spare parts request shall be sent to CALPEDA
S.p.A. by phone, fax, e-mail.
M004_REV06_ - Operating Instructions
operations external
SYMBOLS CAPTION
TA Current transformer
FU Fuses
KM Pumps contactors
TR Transformer
QS Door lock master switch
A1 MPS3000 type circuit board
A2 Circuit board Interface
G Float switch
GMIN Minimum level float switch for pump stopping
GMAX Maximiun level float switch for alarm
SL Level probe
SLMIN Minimum level probe for pump stopping
SLMAX Maximiun level probe for alarm
SCOM Common level probe
CP Volt free contact
MP Thermal protector
RP Remote pump control
TS Analog sensor 4..20mA
MSP Volt free contact module
PS Pressure switch

11. ACCESSORIES

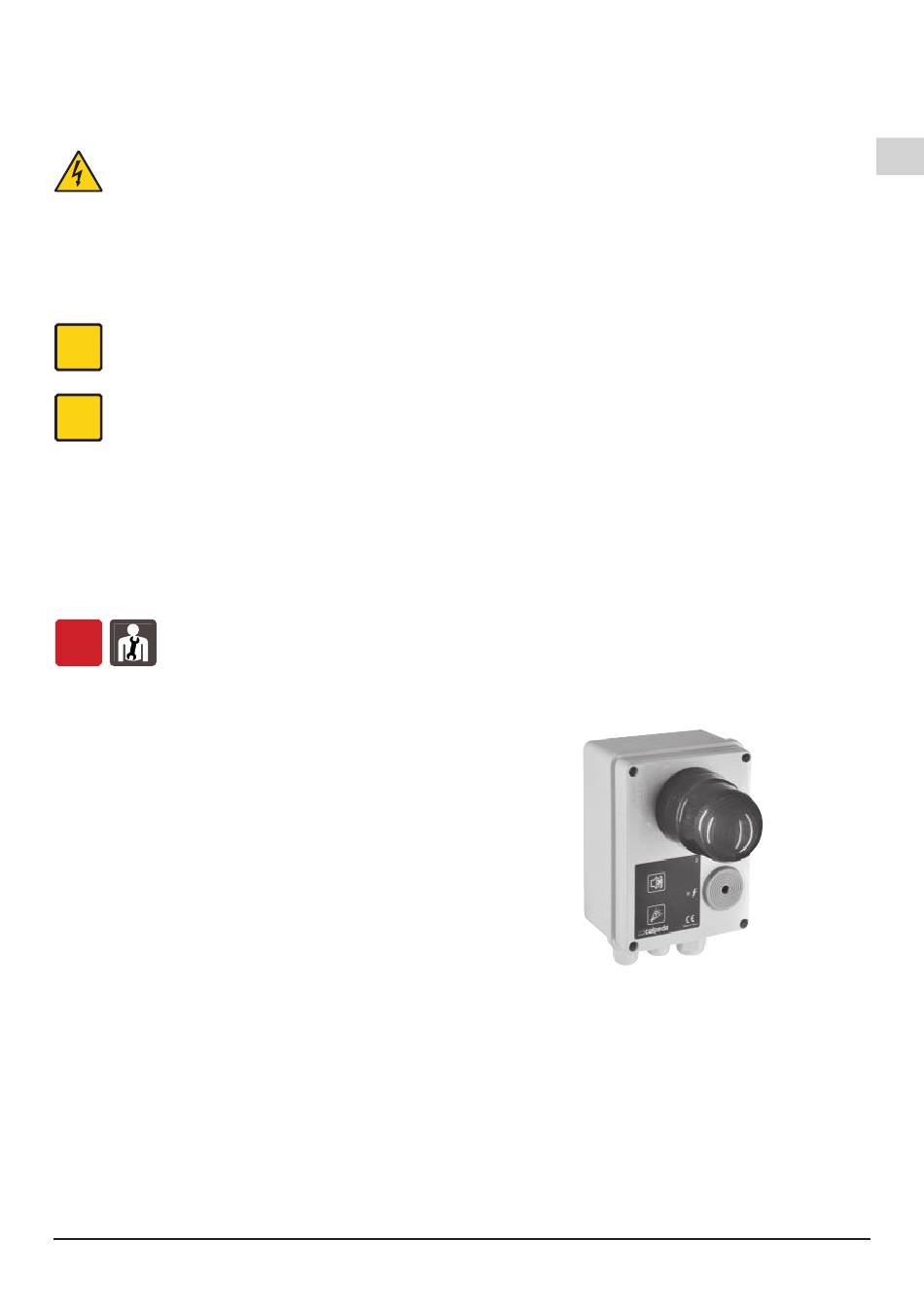

11.1. RA 100 Control panel for remote alarm.
Dimensions: 110x150x70
Power supply: 220-230 V single-phase
Signals all pump assembly malfunctions detected:
- No water intake.
- Assembly malfunction.
• 5-Watt flashing red light plus 75 dB - 3600 Hz
acoustic alarm, for use in areas of loud noise,
positioned in such a way as to be visible from a
distance.
The control panel is fitted to an energized panel led
and an alarm reset pushbutton.
Changes reserved.
GB
Page 25 / 92
