HANDLEBAR

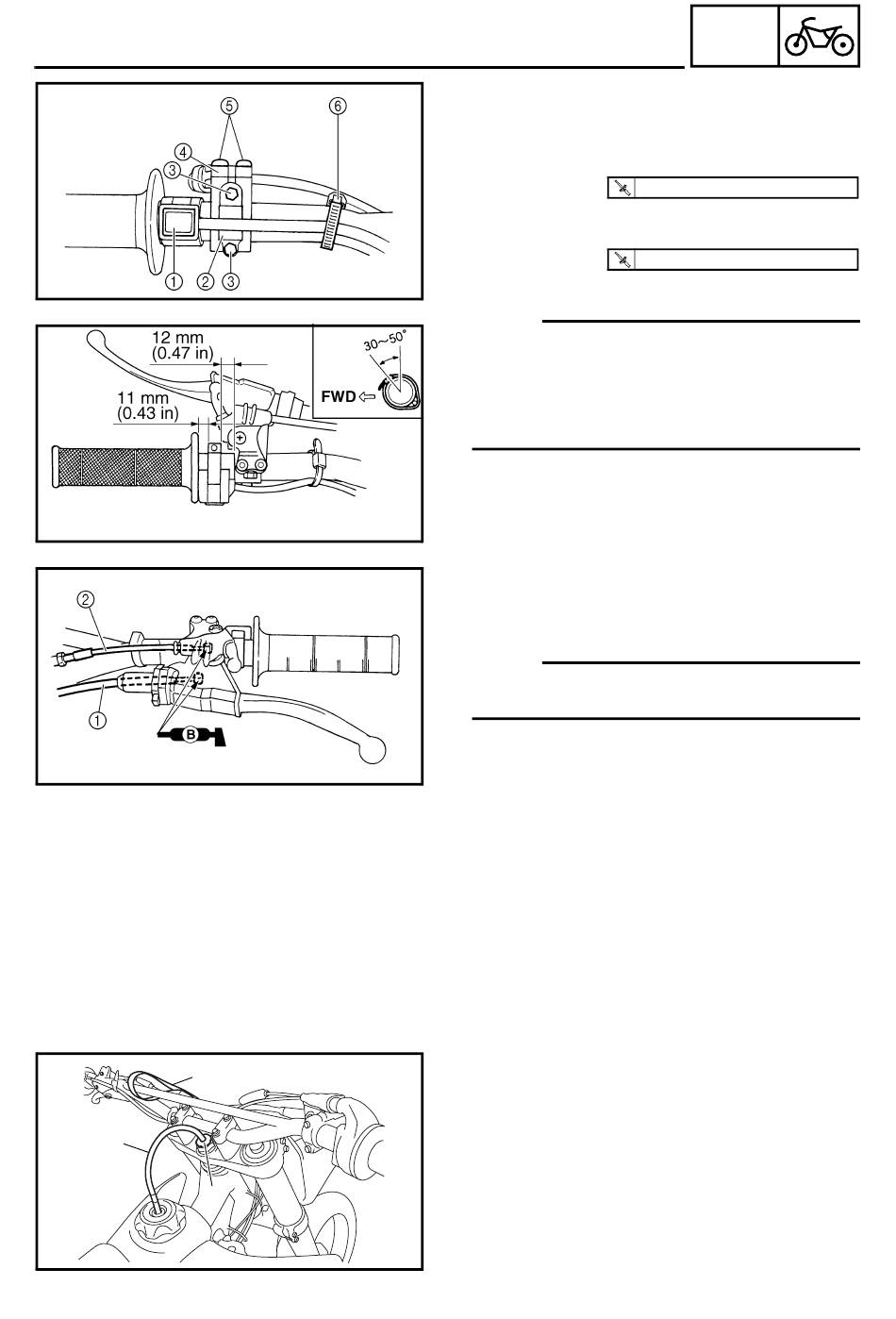

9. Install:
• Engine stop switch 1
• Clutch lever holder 2
• Bolt (clutch lever holder) 3
• Hot starter lever holder 4
• Bolt (hot starter lever holder) 5
• Clamp 6
NOTE:
• The engine stop switch, clutch lever holder
and clamp should be installed according to
the dimensions shown.
• Pass the engine stop switch lead in the mid-
dle of the clutch lever holder.
10. Install:
• Clutch cable 1
• Hot starter cable 2
NOTE:
Apply the lithium soap base grease on the
clutch cable end and hot starter cable end.
11. Adjust:
• Clutch lever free play
Refer to "CLUTCH ADJUSTMENT" sec-
tion in the CHAPTER 3.
• Hot starter lever free play
Refer
to
ADJUSTMENT" section in the CHAPTER
3.
12. Clamp the clamp portion a of the number
plate to the handlebar.
13. Insert the end of the fuel tank breather
hose 1 into the hole in the steering stem
cap 2.
5 - 47
CHAS
4 Nm (0.4 m · kg, 2.9 ft · lb)
4 Nm (0.4 m · kg, 2.9 ft · lb)
"HOT
STARTER
LEVER
