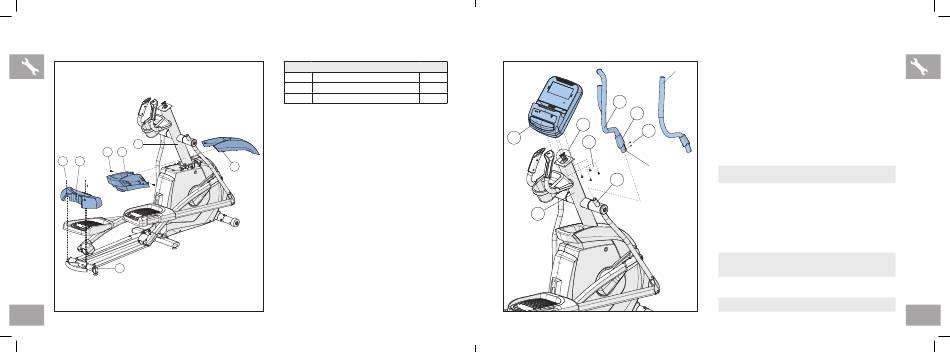

ASSEMBLY STEP 8
6
R 14
S 13
3
18
AFG14_3.3AE_5.3AE_7.3AE_OM_r1_4.indd 18-19
HARDWARE FOR STEP 8
PART TYPE
R SCREW
S SCREW
Open HARDWARE FOR STEP 7.
A
Slide TOP CAP REAR COVER (14) over
B
CONSOLE MAST (6) and attach using
2 SCREWS (R).
15 Slide TOP CAP FRONT COVER (15) over
C
CONSOLE MAST (6) and snap into place.
Slide REAR CAP (13) over REAR
D
STABILIZER (3) and attach using 3
SCREWS (S).
ASSEMBLY STEP 9
QTY
2
3
7
17
16
6
NOTE: All hardware for this step is pre-installed.
3.3AE HANDLEBAR
A Remove 4 PRE-INSTALLED BOLTS (16) from the
CONSOLE (17).
19
B Attach the CONSOLE CABLES (7) to the
CONSOLE (17).
18
C Carefully tuck the CONSOLE CABLES (7) into the
20
CONSOLE MAST (6) before attaching the CONSOLE.
Attach CONSOLE (17) to CONSOLE MAST (6) using
4 PRE-INSTALLED BOLTS (16).
5.3AE/7.3AE
NOTE: Do not to pinch any wires while attaching the console.
HANDLEBAR
11
D Slide the HANDLEBAR BOOT (18) halfway up
the UPPER HANDLEBAR (19). Slide the UPPER
HANDLEBAR (19) onto the LOWER HANDLEBAR (11)
making sure handlebars are joined together completely.
Secure the UPPER HANDLEBAR (19) to the LOWER
HANDLEBAR (11) using PRE-ATTACHED SET
SCREWS (20).
NOTE: Make sure upper handlebars are as far down as
possible. Handlebars can be damaged If not secured correctly.
E Repeat STEP D on other side.
ASSEMBLY COMPLETE!
19
