ULTRAFLEX

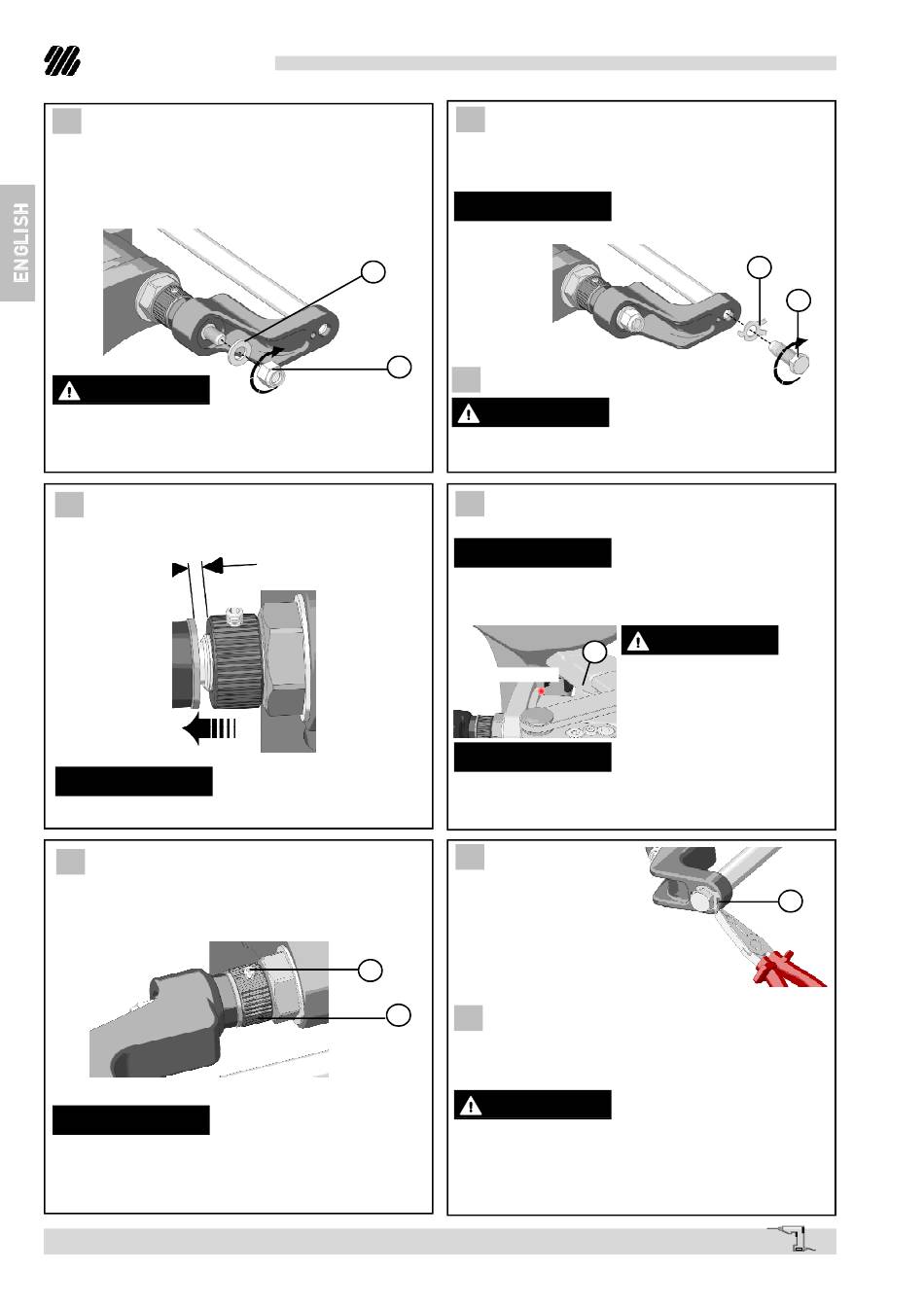

16 Insert the washers (13) on the two ends of the
tilt tube rod, grease the nut thread (14) with
some anti-seize grease type MOLYKOTE
similar one, screw them by using a 3/4" wrench
and tighten them with a torque of 70[Nm] (52[lb· ft]).
WARNING
If the self-locking nuts (14) are disassembled,
replace them. (Contact our technical assistance
service, see page 6).
19 Unscrew the adjustment collar (11) and bring
it into contact with the stainless washer, until the
clearance is eliminated,
NOTICE
Do not use any tool for this operation.
21 Tighten the set screw (10) on the adjustment
collar (11) by a 1/8" Allen wrench with a torque of
3[Nm] (2 [lb· ft]).
NOTICE
Check periodically the clearance absence between
the ring nut and the tilt tube otherwise eliminate
the clearance through the adjustment ring nut (11).
page 14
of 78 -
HYDRAULIC CYLINDER FOR OUTBOARD ENGINE
®
1000 or a
1 3
l
1 4
l
1 0
l
1 1
l
Installation and Maintenance Manual
17 Position the lock washers (15) and lock screw
(16) by using a 19mm wrench with a torque of 70[Nm]
(52 [lb· ft]) after greasing them with anti-seize grease
®
type MOLYKOTE
1000 or a similar one.
NOTICE
The lock washer tabs must be bent afterwards (see
point 22).
18 Check the correct tilting of the engine.
WARNING
If while tilting the engine is blocked, reduce the
overall dimensions of the spacers.
20 Check the correct cylinder installation by moving
manually the engine on the right and on the left.
NOTICE
The rotation must be as symmetric as possible
between port and starboard so that the steering
angle is the same on both sides.
17
The engine must stop through the
NO CONTACT
cylinder end stroke without
l
coming into contact with the
mechanical stop (17) on the
engine.
NOTICE
Otherwise it is necessary to modify the installation,
by changing the thickness of the spacers and by
repeating the procedure from point 13.
22 Bend the tabs of the
lock
washers
(15)
bringing
them
into
contact with the screw
head and taking care not
to damage the bull horns
while using the pliers.
23 Check again the correct engine movement
both during the right/left rotation and during the
tilting.
WARNING
In this phase clearance should be enough to avoid
frictions but it should not be excessive since it could
cause engine instability. In case of contact with the
transom, stop the installation and contact the
specialized staff.
