11.2 Capri ADE 4F

Typ Gewinde Größe
Type Thread size
Type Filetage
ISO NPT
ADE 4 12 M 12 1/4 "
ADE 4 16 M 16 3/8 "
ADE 4 16 M 16 3/8 "
ADE 4 16 M 16 3/8 "
ADE 4 20 M 20 1/2 "
ADE 4 20 M 20 1/2 "
ADE 4 20 M 20 1/2 "
ADE 4 20 M 20 1/2 "
ADE 4 25 M 25 3/4 "
ADE 4 25 M 25 3/4 "
ADE 4 25 M 25 3/4 "
ADE 4 32 M 32 1 "
ADE 4 32 M 32 1 "
ADE 4 40 M 40 1 1/4 "
ADE 4 40 M 40 1 1/4 "
ADE 4 50 M 50 1 1/2 "
ADE 4 50 M 50 2 "
Alle Maße in mm
26

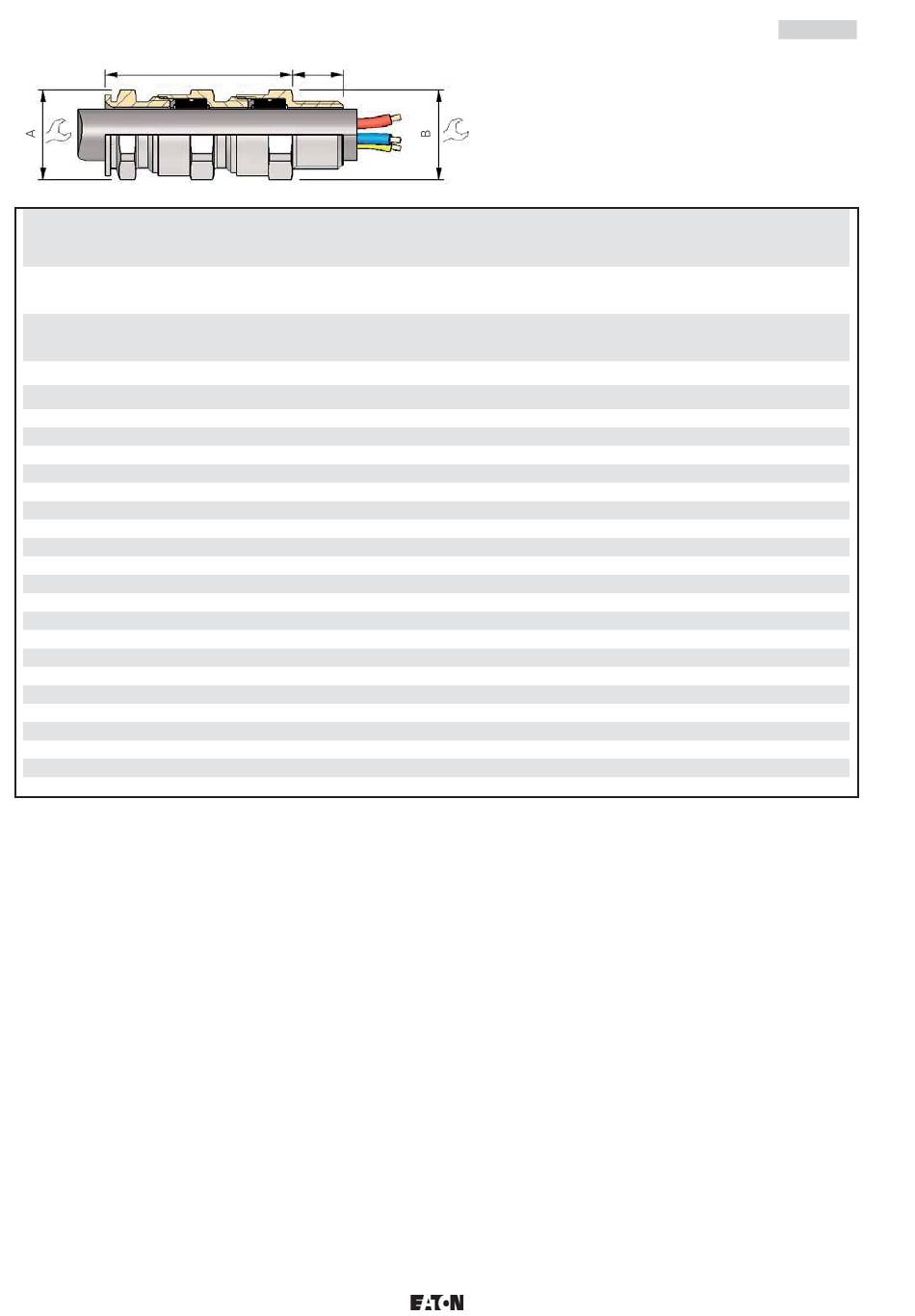

11.2 Capri ADE 4F
L
Leitungs-
durchmesser
(innerer Mantel)
Cable sealing
range
(inner sheath)
Plage de
serrage
(gaine intérieure)
min - max
N 025 4,5 - 8,0
N 038 2,8 - 5,5
N 038 4,5 - 8,0
N 038 7 ,0 - 12,0
N 050 2,8 - 5,5
N 050 4,5 - 8,0
N 050 7 ,0 - 12,0
N 050 10,0 - 15,5
N 075 7 ,0 - 12,0
N 075 10,0 - 15,5
N 075 13,5 - 20,5
N 100 13,5 - 21,0
N 100 18,0 - 26,0
N 125 18,0 - 27 ,5
N 125 23,0 - 34,0
N 150 23,0 - 34,0
N 200 29,0 - 41,0
All dimensions in mm
Leitungs-
durchmesser
(äußerer
Mantel)
Cable sealing
range
(outer sheath)
Plage de
serrage
(gaine extérieure)
min - max A B L
7 ,0 - 12,0 17 17 25,0
4,5 - 8,5 17 19 25,0
7 ,0 - 12,0 19 19 27 ,5
10,0 - 16,0 24 24 51,0
4,5 - 8,5 15 24 24,0
7 ,0 - 12,0 17 24 25,0
10,0 - 16,0 19 24 27 ,5
13,5 - 21,0 24 24 32,0
10,0 - 16,0 19 30 27 ,5
13,5 - 21,0 24 30 32,0
18,0 - 27 ,5 30 30 36,5
18,0 - 27 ,5 41 41 46,0
23,0 - 34,0 48 48 76,0
23,0 - 34,0 48 48 50,0
29,0 - 41,0 55 55 88,0
29,0 - 41,0 55 55 52,0
35,0 - 48,0 64 64 56,5
11.2 Capri ADE 4F
Größe Bestellnummer ADE 4F
Gland
Order No. ADE 4F
size
N° de
Référence ADE 1F2
plage
# ISO # NPT
4 CAP 846404 V 1 CAP 848404 V 1
4 CAP 846574 V 1 CAP 848574 V 1
5 CAP 846594 V 1 CAP 848594 V 1
6 CAP 846504 V 1 CAP 848504 V 1
3 CAP 846654 V 1 CAP 848664 V 1
4 CAP 846674 V 1 CAP 848674 V 1
5 CAP 846694 V 1 CAP 848694 V 1
6 CAP 846604 V 1 CAP 848604 V 1
5 CAP 846774 V 1 CAP 848774 V 1
6 CAP 846794 V 1 CAP 848794 V 1
7 CAP 846704 V 1 CAP 848704 V 1
8 CAP 846894 V 1 CAP 848894 V 1
9 CAP 846804 V 1 CAP 848804 V 1
9 CAP 846994 V 1 CAP 848994 V 1
10 CAP 846904 V 1 CAP 848904 V 1
10 CAP 847094 V 1 CAP 849094 V 1
11 CAP 847004 V 1 CAP 849004 V 1
Toutes les mesures en mm
D / GB / F
