Mounting a single luminaire
3.3

Mounting the ceiling fixture

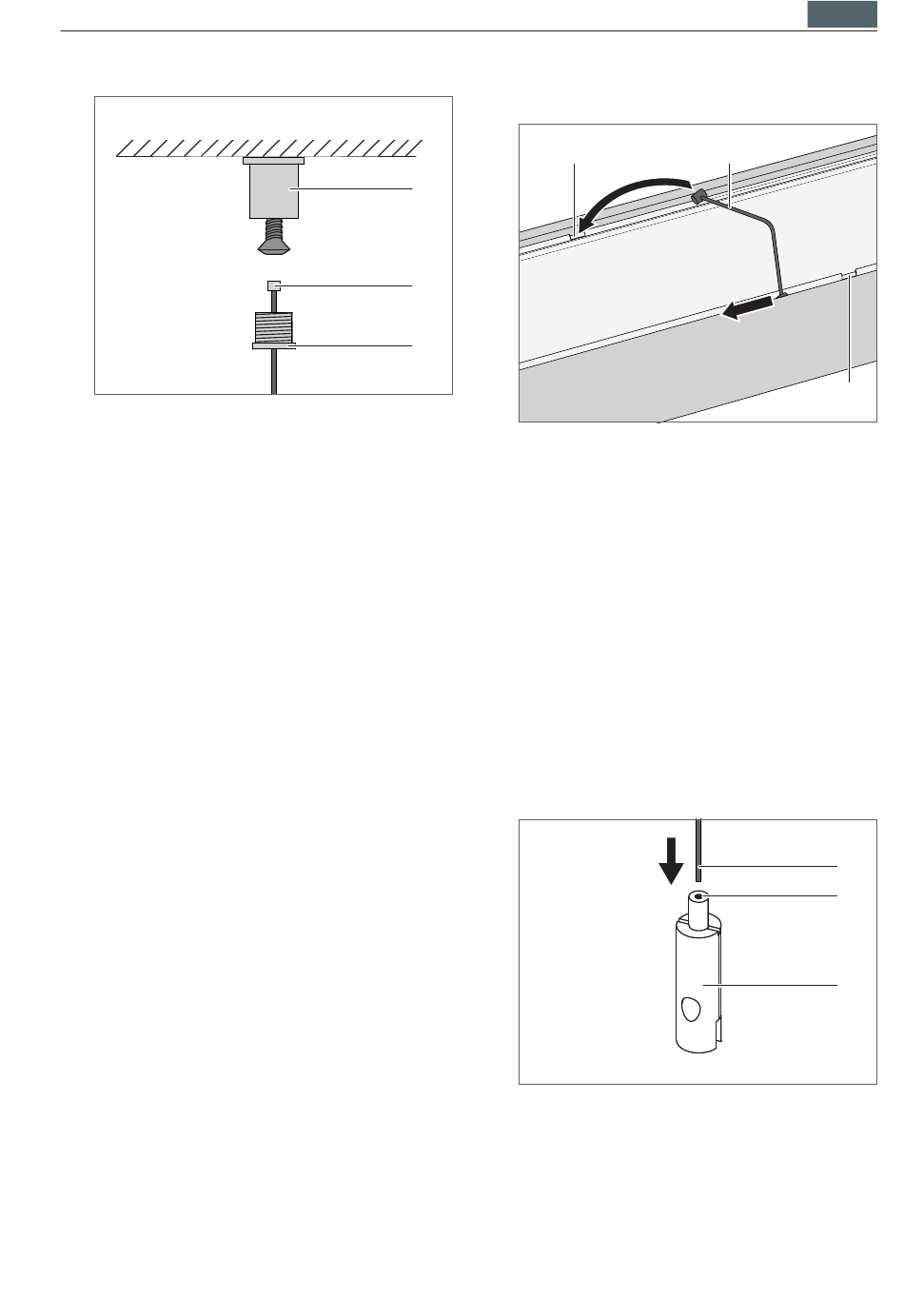

Fig. 2: Mounting ceiling fixture.
X Screw the sleeve A to the ceiling using
a suitable screw, see Fig. 2.
X Pass the wire rope B through the
thread C.
X Screw the thread in the sleeve.
X Mount the second ceiling fixture to the
ceiling by observing the distance a to
the previously mounted ceiling fixture,
see Tab. 2.
X For luminaire model ILP 6000/xxx/D:
Mount the third ceiling fixture to the
ceiling by observing the distance a to
the previously mounted ceiling fixture.
3.4 Hanging the wire ropes into
the luminaire
F
A
B
C
Fig. 3: Hanging wire rope into luminaire.
X Insert one end of the wire rope D into
the opening E on the top of the lumi-
naire, see Fig. 3.
X Move the wire rope towards the sec-
ond opening F.
X Insert the other end of the wire rope
into the opening F.
X Hang the other wire ropes into the
luminaire.
3.5 Mounting the wire rope
holder
Fig. 4: Mounting the wire rope holder.
X Guide the wire rope G through the
guide bushing H of the wire rope holder
I, see Fig. 4.
ENG
D
E
G
H
I
