INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS
ALL ROUGH-IN PLUMBING AND ELECTRICAL MUST BE COMPLETED
BEFORE THE DISHWASHER IS PLACED IN THE UNDERCOUNTER OPENING
ALL ELECTRICAL AND PLUMBING WORK MUST BE IN ACCORDANCE WITH LOCAL CODES
DISHWASHER SHOULD NOT BE INSTALLED IN AREA WHERE FREEZING OF WATER MAY OCCUR
TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, OR INJURY TO PERSONS, THE INSTALLER
MUST ENSURE THAT THE DISHWASHER IS COMPLETELY ENCLOSED AT THE TIME OF
INSTALLATION.

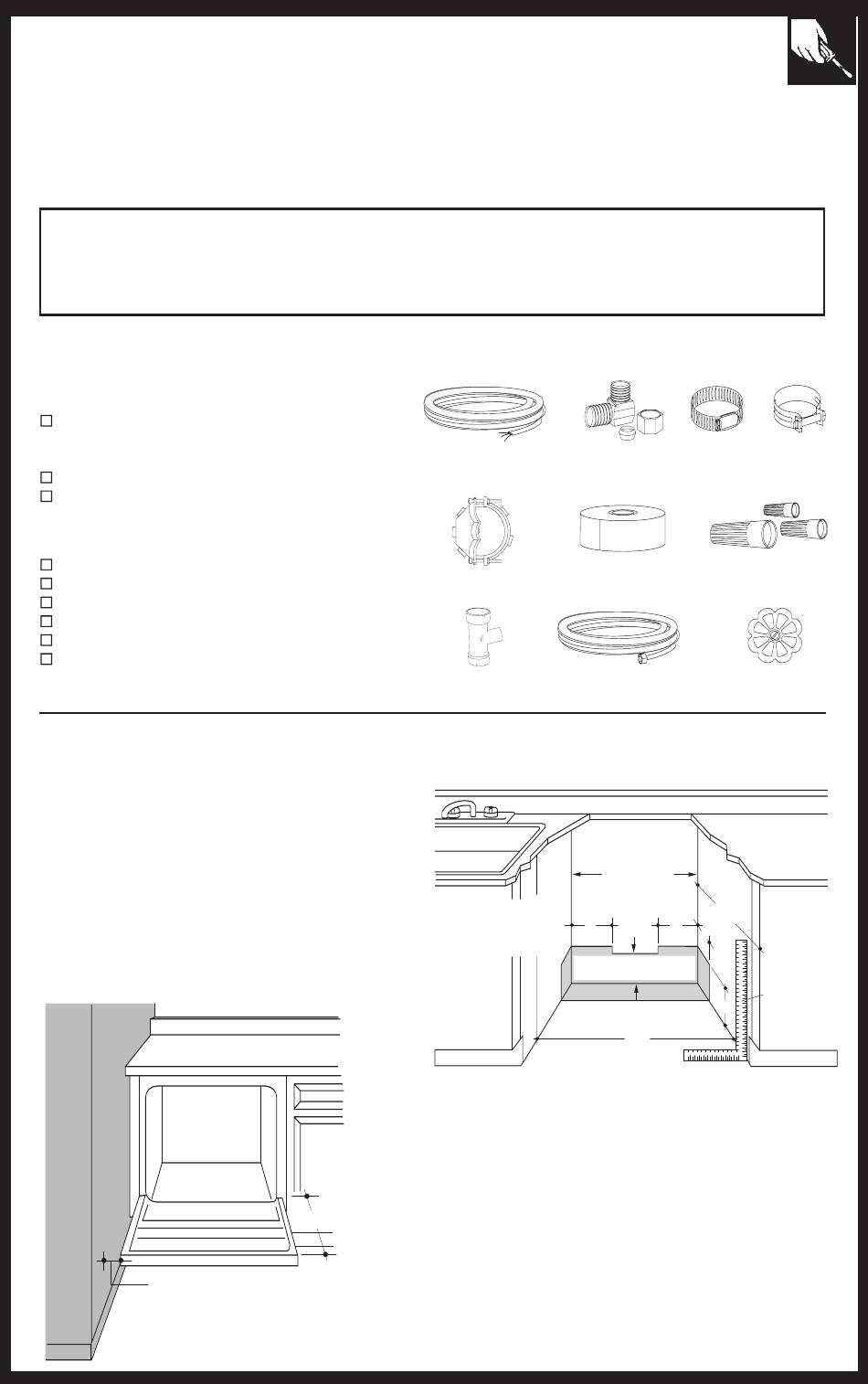

MATERIALS YOU WILL NEED (not supplied)
Materials required:
90°elbow
(3/8" NPT external thread on one end and
opposite end sized to fit water supply)
Thread seal tape
Wire nuts
For new installations only:
Waste tee for house plumbing, if applicable
Electrical cable or power cord, if applicable
Screw type hose clamps
Strain relief for electrical connection
Hand shut-off valve (optional)
Water line 3/8" min. copper or 1/2" min. plastic
• The touch cabinet opening must have a minimum
width of 24", and a minimum of 34" high from
floor to underside of the countertop. Figure A
• The back wall should be free of pipes or wires.
Figure A
• Adjacent cabinets should be square and plumb to
ensure a good fit. Figure A
• For corner installation, allow 2" min. clearance
between dishwasher and adjacent cabinet or wall
or other appliances. Figure B
Countertop
Dishwasher
Clearance for Door
Opening 2" Minimum
Figure B
BUILT-IN DISHWASHER BUILT-IN DISHWASHER
WARNING

PREPARE DISHWASHER ENCLOSURE

25"
Electrical Cable or
Power Cord
Strain Relief Thread Seal Tape
Waste Tee
34-1/2" ±1/4"
Underside of
5"
Countertop
to Floor
Plumbing and Electric Service
Must Enter Inside This Area
• Make sure the floor is level inside the opening and even
with the finished floor of the kitchen.
• The dishwasher must be installed no more than 10 feet
from sink for proper drainage.
• This dishwasher must be fully enclosed on the top, sides
and back.
• The dishwasher must not support any part of the
enclosure.
90°Elbow Screw Type Clamps
Wire Nuts
Hot Water LineWire Nuts
This Wall Area
must be Free of
Pipes or wires
24"
Min.
5"
4"
4"
6"
24"
Min.
Figure A
Cabinets Square
and Plumb
