2.1.5.01 Periodic sending with or without history logs

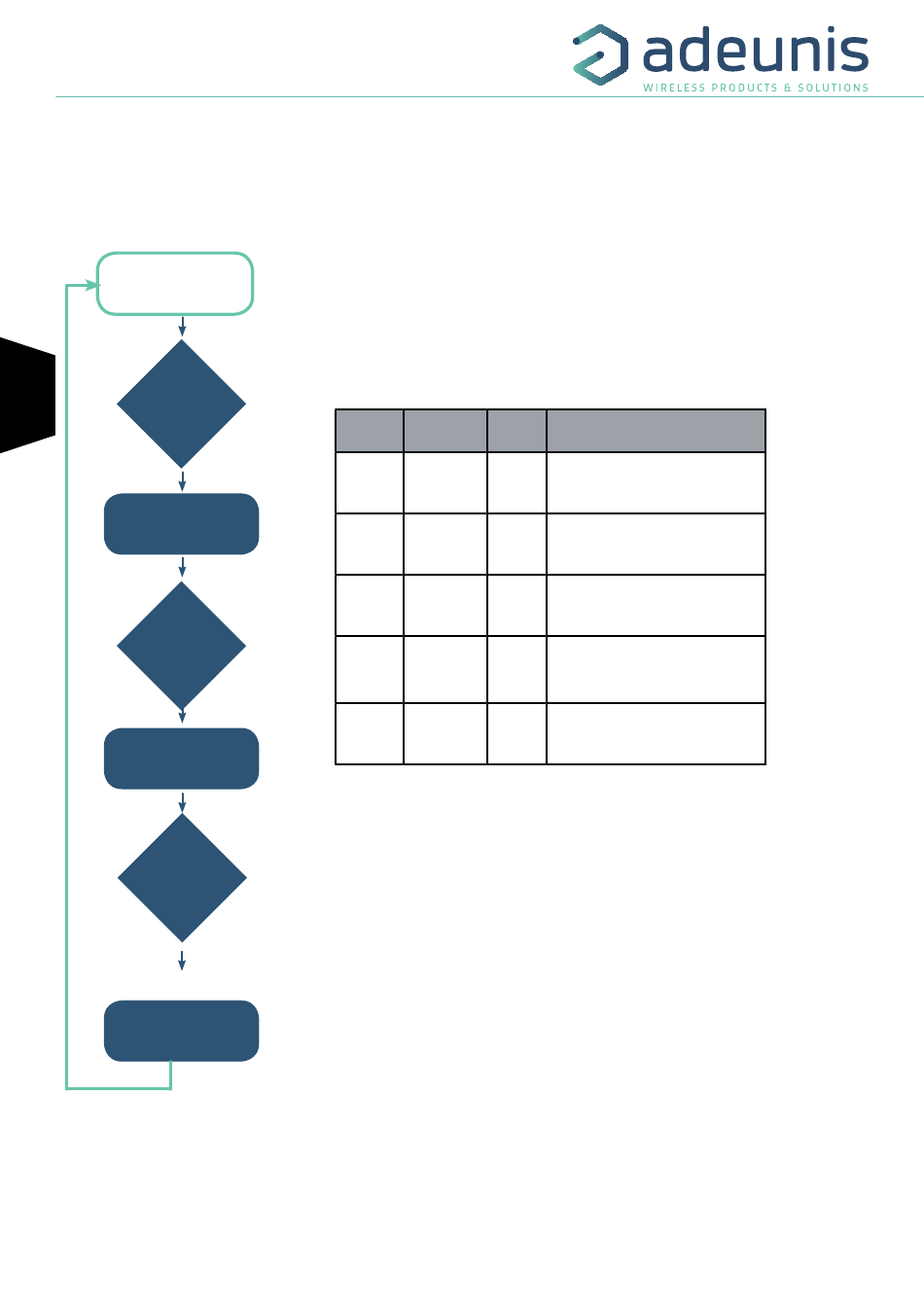

The device allows the measurement and the periodic sending of the sensor values according to the following diagram:
The device makes it possible to record the temperature and the humidity at a certain frequency, to store this information and then to send it
periodically.
FR
Product in standby
Period
EN
of acquisition
reached?
Measure luminosity &
presence
Number
of readings
reached
?
Backup
Number of
backups
reached?
Send frame 0x4E
The parameters associated with this operating mode are:
• Period of acquisition (S321)
• Backup period (S320)
• Period of transmission(S301)
The complete list of registers can be found in paragraph 3.4.
E.g.:
Register Value Value
encoding
S321 Decimal 5400
S320 Decimal 1
S301 Decimal 2
S330 Decimal 0
S340 Decimal 0
In this example:
• The device takes presence and luminosity every 2 hours and saves the information
• The device will make 4 backups and send them once a day
• The device is in pure periodic sending mode since the alarms have been disabled.
Be careful about backup and sending values that will also depend on the network used and its
bandwidth.
Note: for a transmission without history, it is sufficient to set the register 301 (transmission
period) to 1 so the device will send a frame to each backup.
DISTRIBUTED BY TEXIM EUROPE
Result
1 reading every 3 hours 5400 * 2sec
= 10800 sec = 3 hours
1 backup at each reading
Periodic mode with a period of 2
backup (2 * 3 hours) = every 6
hours
Presence alarm off
Luminosity alarm off
