5.3.1

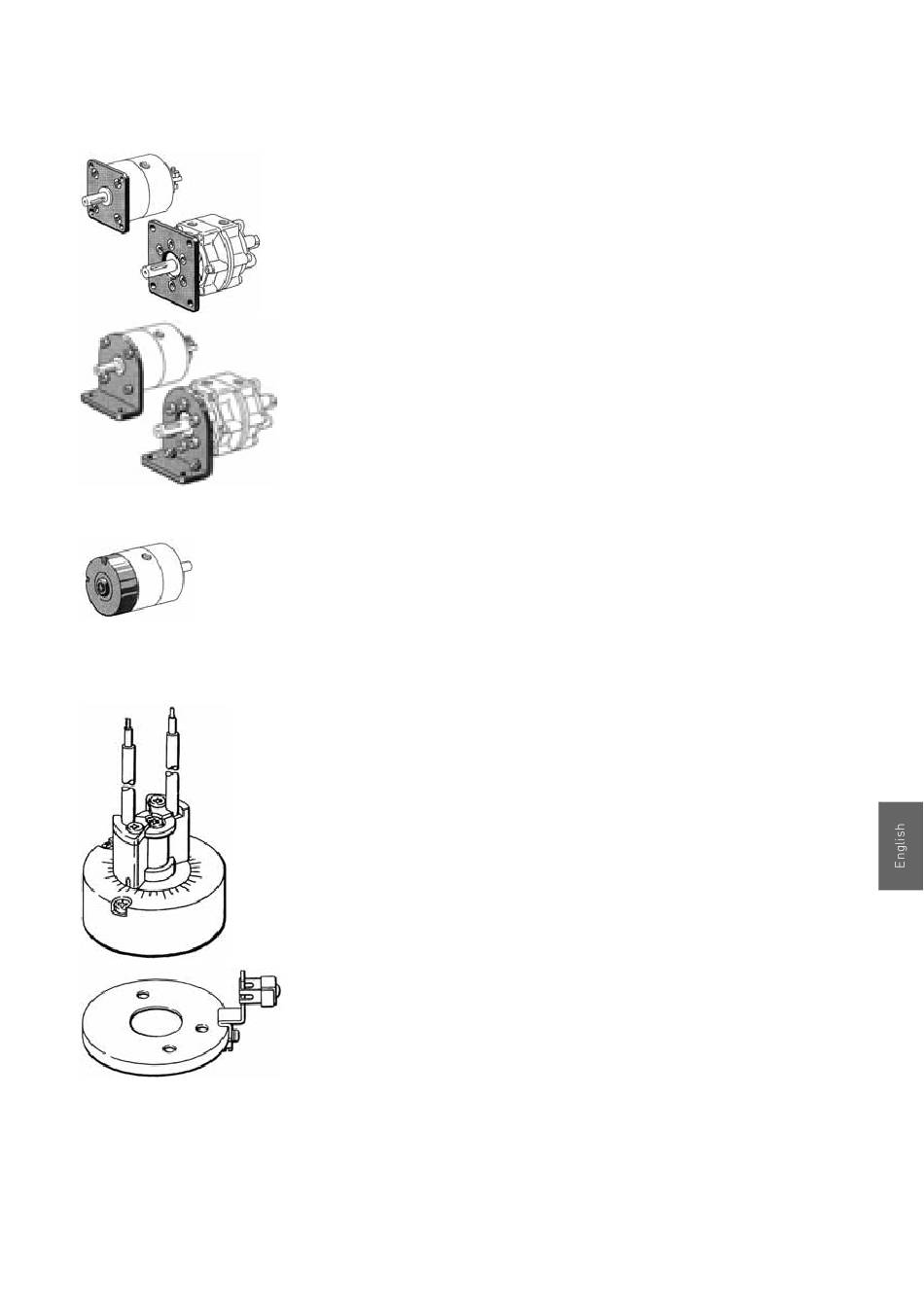

Flange mounting

Available in one size for each size of rotary actuator, series RAK.
See the product catalog. The flange mounting for size 2 and 3 can
be mounted in steps of 120
5.3.2 Foot mounting
Available in one size for each size of rotary actuator, series RAK.
See the product catalog. The foot mounting for size 2, 3, 6, 7 and 8
can be mounted in steps of 60
foot mounting for size 1, 4, and 5 can be mounted in steps of 90
from the reference position. Rotary actuators size 1, 6, 7, and 8 can
also be fitted with a foot mounting on the back end.
5.3.3

Protective cover

A protective cover in plastic is available as an accessory to
Drehantrieb size 2 to 5. It is used for protection of the adjustable
stop when the sensor unit (see below) is not used. See the product
catalog.
5.3.4 Sensor unit, for Drehantrieb size 1 to 5
Sensors are used to provide a signal to control units etc. when the
rotating axis reaches its set oscillation angle.
The sensor unit for Drehantrieb size 1 to 5 consists of a housing
that is fitted directly on the Drehantrieb housing to cover the
adjustable stop. The sensor unit has two adjustable sensors fitted;
one with left hand design (L) and one with right hand design (R), to
allow for indication at maximum oscillation angle. The sensors are
electronic of type CT-3 with a LED and PNP output.
5.3.5 Sensor with mounting details, for size 6 to 8
Sensors are used to provide a signal to control units etc. when the
rotating axis reaches its set oscillation angle.
The sensors for Drehantrieb size 6 to 8 are fitted on the
Drehantrieb housing with a separate sensor holder and a
mounting plate. Two sensors with sensor holder can be fitted on
each mounting plate, to allow for indication at maximum
oscillation angle. The sensors are electronic of type CT-3 with a
LED and PNP output.
