4. Mini Bio/Mini Bio Luxury boiler design (as a complete heating device)
58
4.C Platinum Bio v02 burner
Locally manufactured Platinum Bio v02 burner is a device dedicated
for solid fuel (wood pellets) combustion. The burner components in
contact with the flame are made of heat resistant steel. A selected
burner power is determined by the target Mini Bio/Mini Bio Luxury
boiler power. The following diagram (see 'Platinum Bio v02 burner
dimension diagram') and the following table (see 'Platinum Bio v02
burner dimension data') shows standard dimensions of Platinum
Bio v02 burner. The following table (see 'Platinum Bio v02 data she-
et') shows basic specification of Platinum Bio v02 burner.

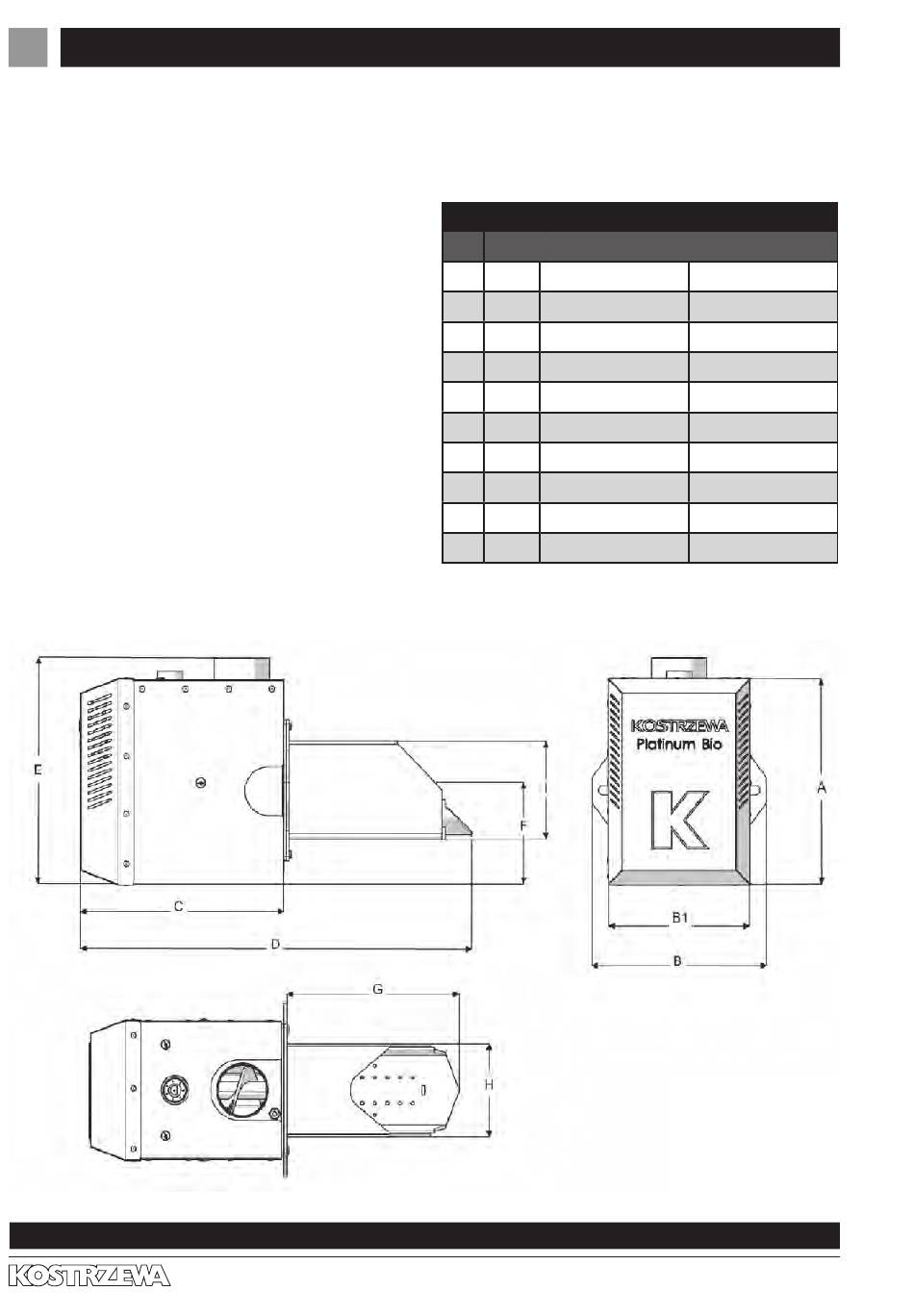

Platinum Bio v02 burner dimension diagram
Experts in heating
Platinum Bio v02 burner
dimension data
Table: Platinum Bio v02 burner dimension data
unit
A mm
B mm
B1 mm
C mm
D mm
E mm
F mm
G mm
H mm
I mm
Mini Bio and Mini Bio Luxury User Manual - ENGV 08.15
PB-16-v02 PB-24-v02
245 245
222 222
180 180
258 258
497 537
247 247
123 123
232 272
119 119
119 119
