Configure battery bank 3
Reset to factory settings
(see chapter 4.3)

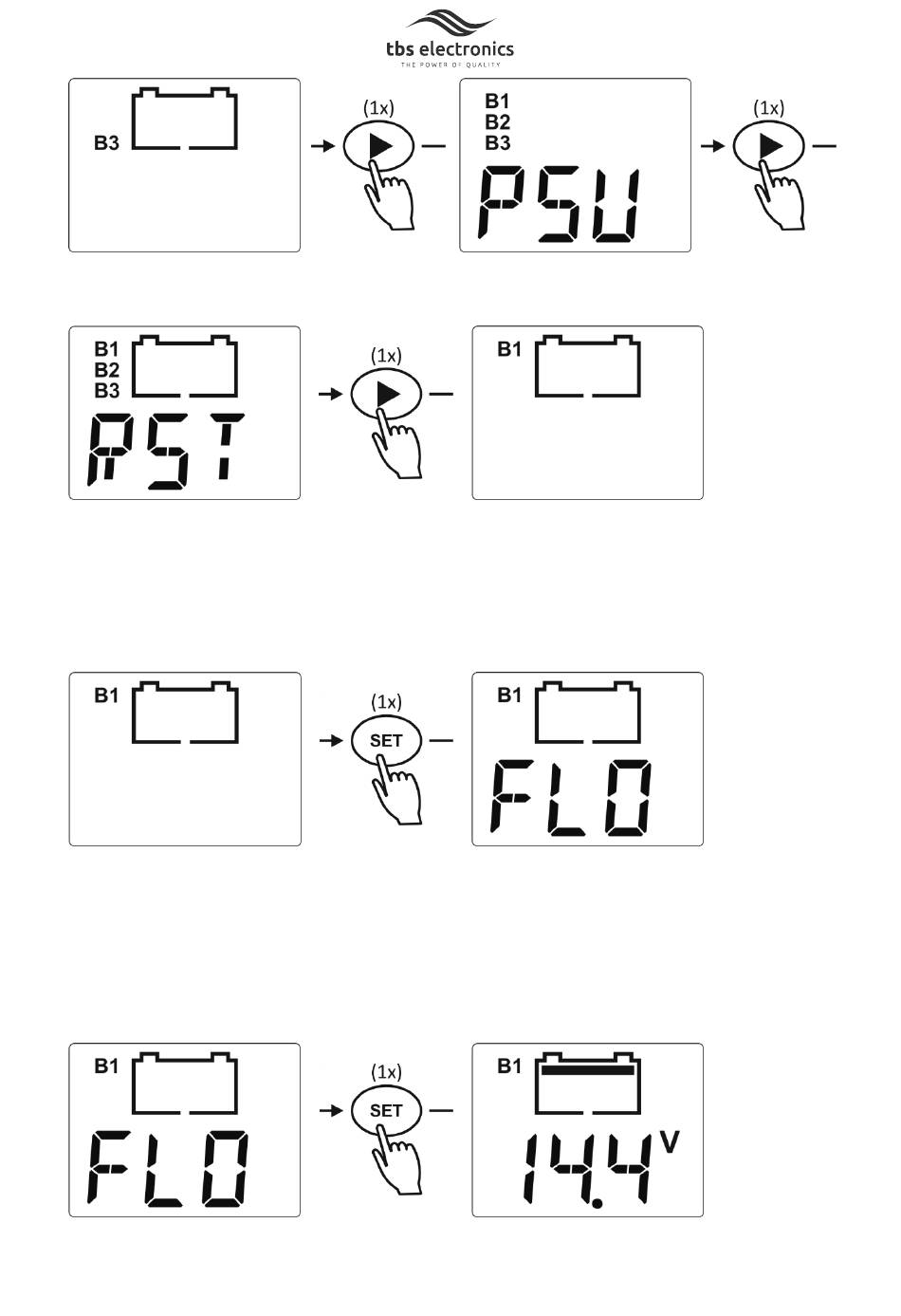

In this chapter we are focusing on setting up battery bank 1 using the OC
Once the desired setup section is selected, press the SET button to jump to the first setup
parameter in this section. This gives us the following screens:
Configure battery bank 1
The first setup parameter is the battery type. It will show the current battery type (Flooded
in this example), but by pressing the NEXT (>) button, each time a different battery type will
be shown. There are four options: GEL, AGM, FLO (flooded) and LIT (Lithium). Once you have
selected the desired value, press the SET button to jump to the next setup parameter. Please
see the next images:
Set battery type (Flooded)
Configure Power Supply
NEXT
mode (see chapter 4.2)
NEXT Configure battery bank 1
SET Set battery type (Flooded)
SET Set Absorption voltage
18
NEXT
2
12-60 model.
