ENG

6.8 Condensate in duct

1.
Verify humidifier capacity versus air volume.
2.
See section 6.1 in trouble-shooting section of this manual.
3.
Verify that hi-limit controller is working. Correct if necessary.
4.
Verify evaporation distance to obstructions or elbows. Correct if
necessary.
5.
Verify steam valve is not leaking. Correct if necessary.
6.
Uninsulated duct may be running through an area where ambient
temperature is below internal duct dew point. Insulate duct externally.
The ultimateSAM distributor itself requires no regular maintenance since its
design has no moving parts. It is recommended that the external surfaces
of the distributor should be inspected once a year. If there is evidence of a
steam leak at one of the static seals, contact CAREL.

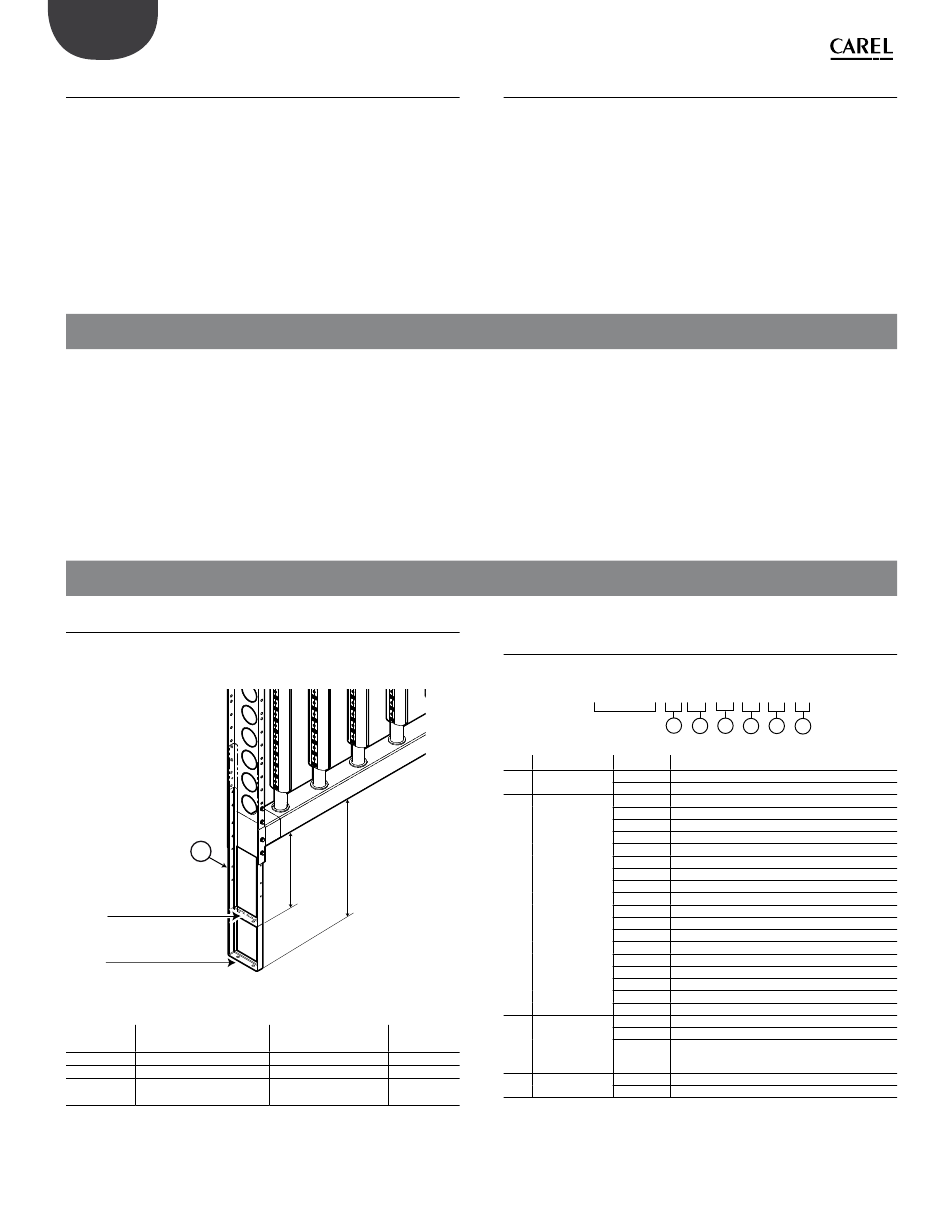

8.1 Adjustable feet Kit for SAB* / SAT*

Feet kit to increase the distance between the base of the ultimateSam and
the duct. Fig. 8.a shows the pedestal SAKS010000 in two different positions.
a
Optional pedestal
in minimized position
Optional pedestal
in standard position
kIT CODE
Description
SAKS010000 High adjustable feet kit
SAKS020000 Standard adjustable feet kit 236.6 mm (9.3in)
SAKS030000 Short adjustable feet kit
(version without frame)
Each kit contains 2 adjustable feet and 16 screws
"ultimateSAM - user" +03U0070EF - rel. 2.0 - 20150301

7. MAINTENANCE

8. SPARE PARTS

386.5 mm
(15.22 in)
236.6 mm
(9.31 in)
Fig. 8.a
Duct height
Weight
mm ( in)
kg (lbs)
386.5 mm (15.2in)
0.9 (2.0 lbs)
1 (2.0 lbs)
37.5mm (1.48in)
0.8 (1.8 lbs)

6.9 Steam leaks from P-traps

1.
Check that height of trap exceeds the static pressure of the duct/AHU,
especially if under negative pressure. Correct if necessary.
2.
Check valve sizing to maximum distributor capacity. Resize valve within
distributor capacity.
3.
Check that inlet steam pressure does not exceed the limits of the valve.
For optional equipment, such as valves, actuators, traps, and strainers,
follow the maintenance instructions in the user manuals that are provided
with each of these devices. These accessories should be inspected at least
once a year. For systems in which the inlet pressure to the control valve is
greater than 0.7 bar (10 psig), more frequent inspections of the valve may be
required. In addition, steam hoses should be inspected yearly for evidence
of cracking or hardening.
8.2 Horizontal manifold Kit (steam feed –
condensate drain) for SAB* / SAT*
*Note: Not available in North American market.
SAKM x x x x 0 0
Family prefix
Pos. Meaning
Type
Unit width mm
(in)
Upright Size &
Center distance
mm (in)
Insulation
Tab. 8.a
22
5
6
7
8
9
10
Option
Description
S
S = Steam feed (100x100 mm)
D
D = Condensate drain (70x70 mm)
A
A = 447 (18)
B
B = 599 (23.75)
C
C = 751 (29.75)
D
D = 903 (35.75)
E
E = 1055 (41.75)
F
F = 1207 (47.75)
G
G = 1359 (53.75)
H
H = 1511 (59.50)
I
I = 1663 (65.50)
J
J = 1815 (71.50)
K
K = 1967 (77.50)
L
L = 2119 (83.50)
M
M = 2271 (89.50)
N
N = 2423 (95.50)
O
O = 2575 (101.50)
P
P = 2727 (107.50)
Q
Q = 2879 (113.50)
R
R = 3031 (119.50)
S
S = 35 (1.50) - OD; 152 (6.00)
L
L = 45 (1.75) - OD; 152 (6.00)
H
H = 35 (1.50) - OD; 76 (3.00)
I
I = insulated
N
N = uninsulated no insert
Tab. 8.b
