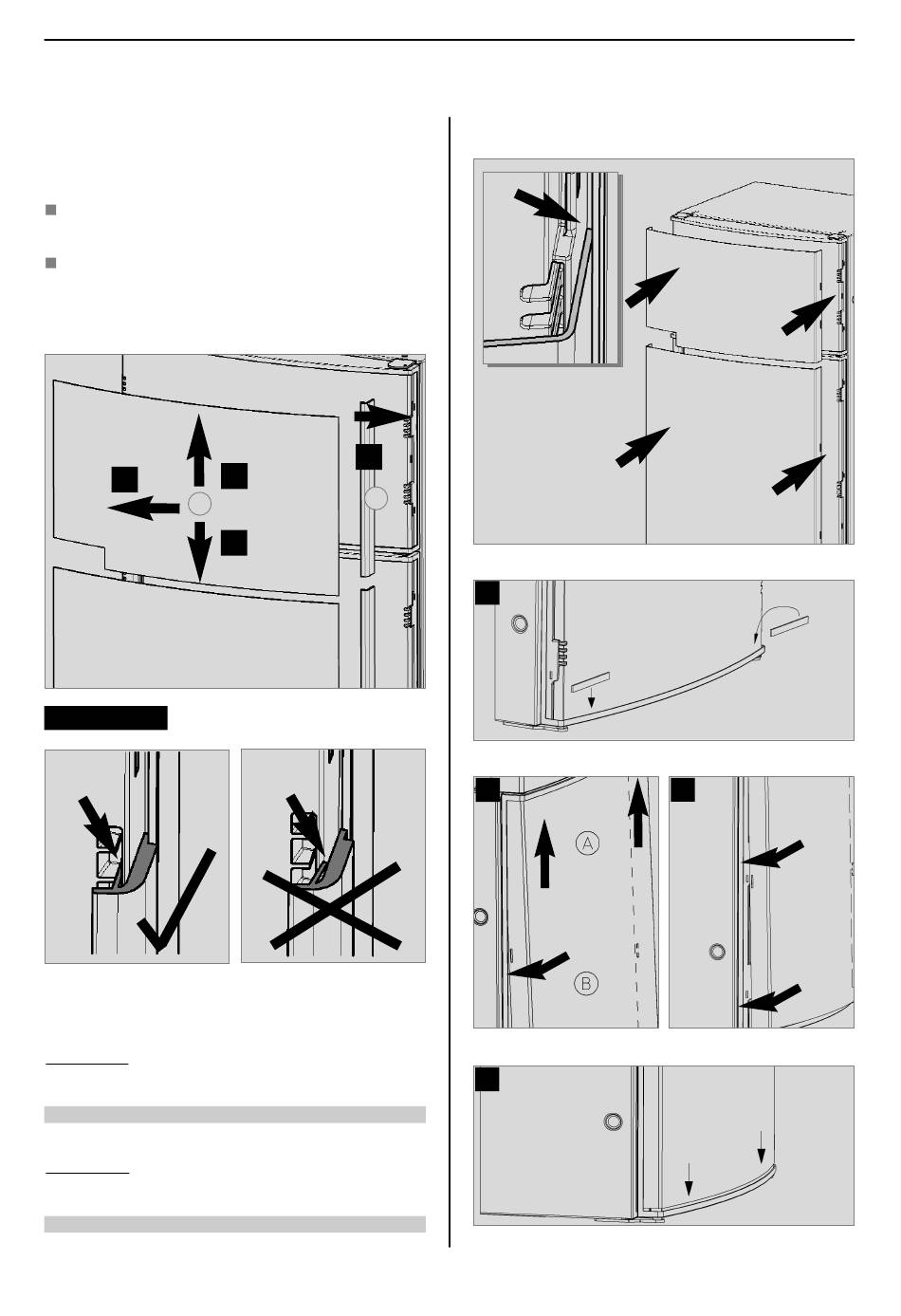

4.7 Insert the decor panel

Decor panel with frame
Remove the lateral ledge (1) from the door
(ledge is attached,
Shift decor panel (2) away from the door
and insert the new decor panel. Re-attach
ledge (1).
3
2
CAUTION!
Fig. 27
Decor panel dimensions (frame) :
Upper door
Height Width
300 +/- 1 mm 507,5 +/- 1 mm max. 1.7 mm
Lower door
Height Width
907,4 +/- 1 mm 507,5 +/- 1 mm max. 1.7 mm
not screwed).
4
2
1
1
Fig. 26
Fig. 28
Thickness
Thickness
Frameless decor panel
1
2
4
16
3
Fig. 31
Fig. 29
Fig. 30
Fig. 32
Fig. 33
