The ventilation grilles must have an open
cross-section of at least 400cm². This is
achieved by using the Dometic LS 300 absor-
ber ventilation and
which has been tested and approved for this
purpose.

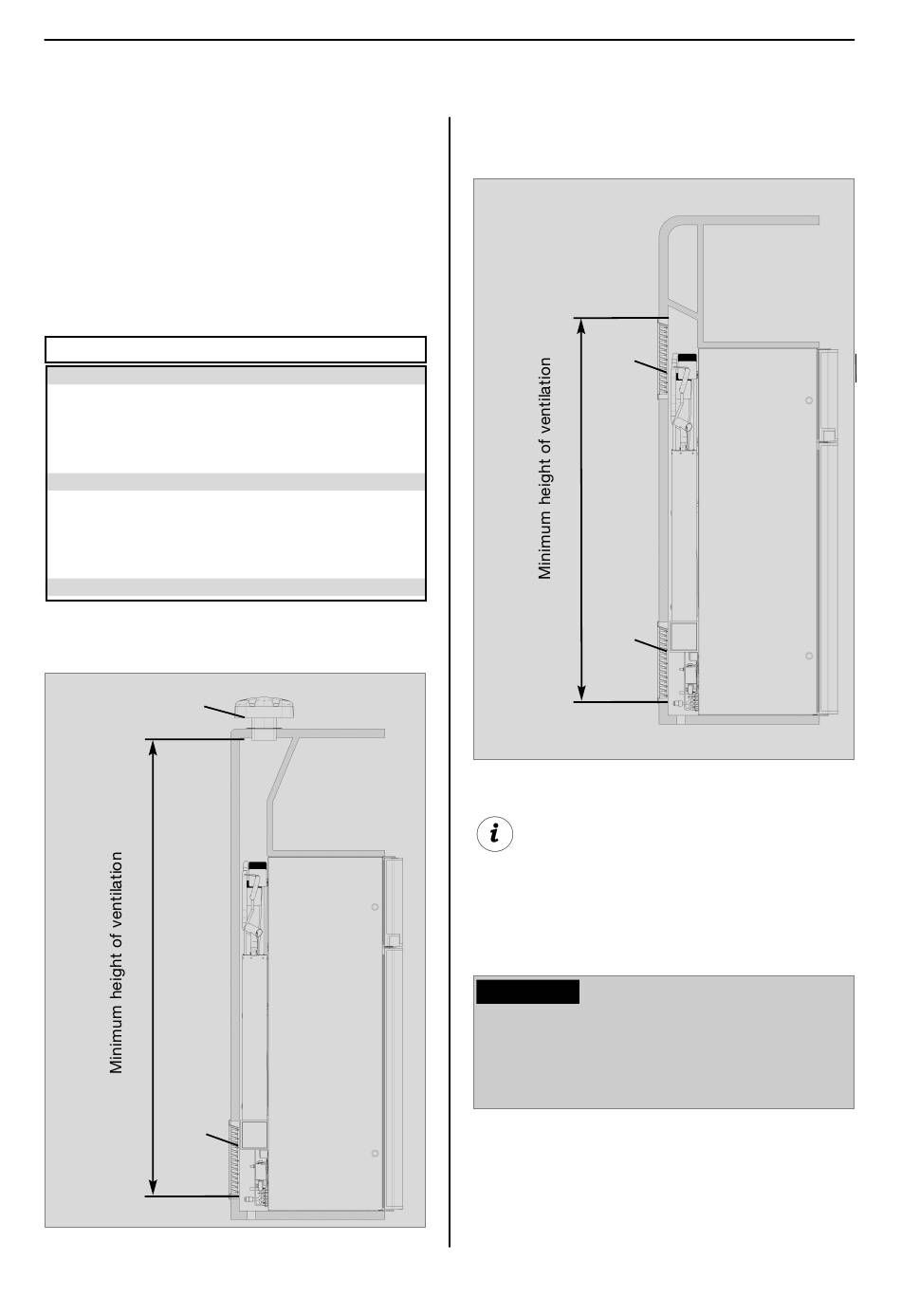

4.3.2 Height of ventilation

Minimum height of ventilation H
1.
Roof exhaust R500
Lower vent grille LS300
2.
Upper vent grille LS300
Lower vent grille LS300
Installation of roof exhaust R500 and lower
ventilation grille LS300.
R500
H
LS300
air extraction system
☺ ☺ ☺ ☺ ☺ ☺
☺ ☺ ☺ ☺ ☺ ☺
1250 mm
☺ ☺ ☺ ☺
☺ ☺ ☺ ☺
1400 mm
Fig. 13
Installation of lower and upper ventilation
grilles LS300.
LS300
H
LS300
Correct mounting of the lower ventilation gril-
le facilitates access to the connections and
functional parts during maintenance.
CAUTION!
An installation other than described will
reduce the cooling capacity and jeopardi-
se the manufacturer's warranty/product
liability.
13
Installation
Fig. 14
