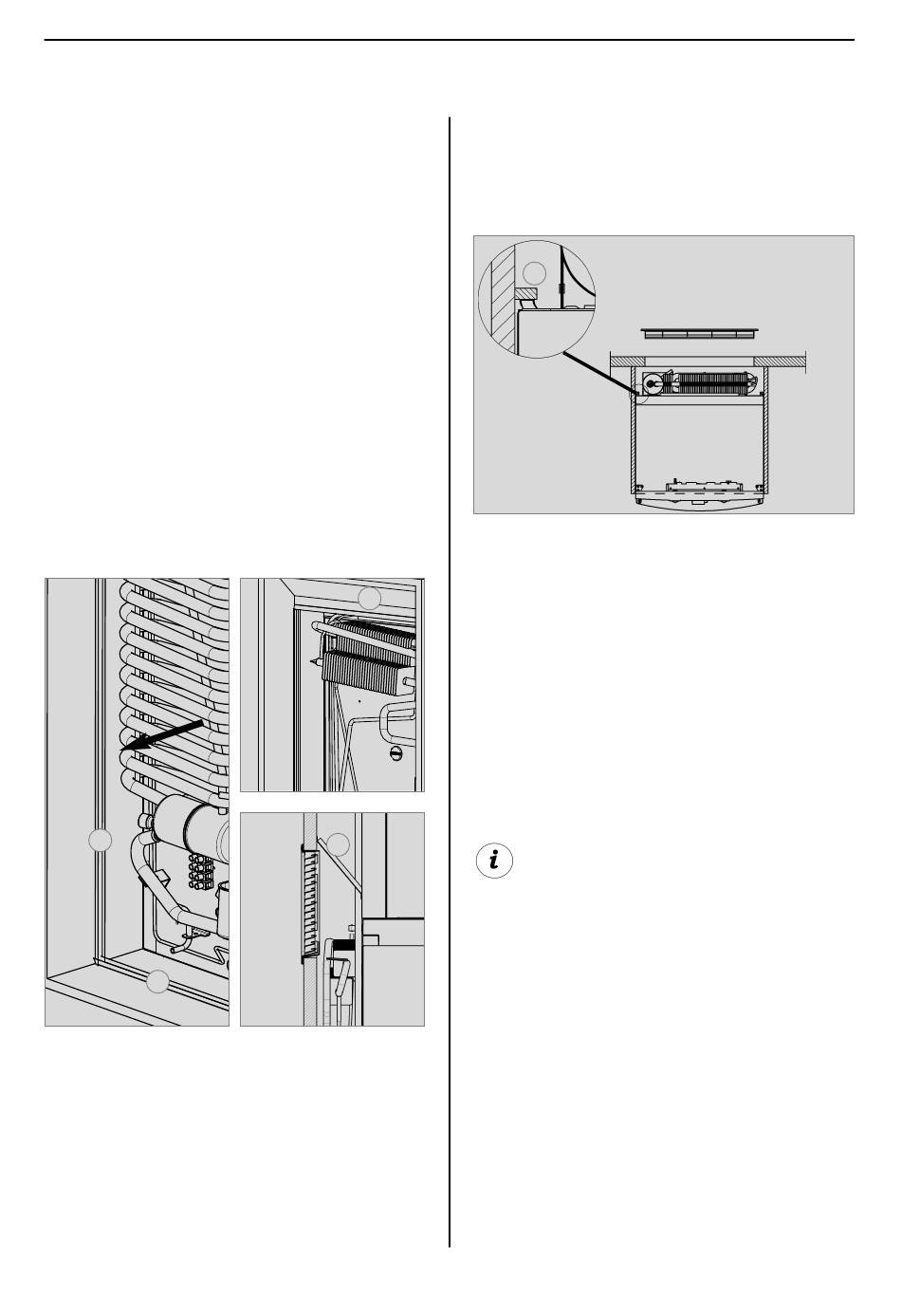

Proposal 1
The lip seals (1) are installed at the bottom and
on each side in the installation recess (Fig. 7-
9). A heat deflector plate (2) is installed in the
installation recess above the refrigerator. Affix
this plate to the caravan wall, do NOT
attach to the refrigerator !
Insert deflector plate in such a way that the hot
air escapes through the air vent grille into the
open air.
The refrigerator is later pushed into the instal-
lation recess from the front. Ensure that the
seals abut the case evenly.
This installation option facilitates the removal
and installation of the appliance for servicing.
1
1
Fig. 7
Proposal 2
Fasten the sealing lips to a stop bar on the
rear side (1), e.g. by gluing.
The cavity in-between the outer vehicle wall
2
and refrigerator is completely isolated from the
vehicle interior. Intrusion of exhaust fumes into
the living space is prevented. Fumes will esca-
pe through the upper ventilation grille to the
outside.
The draught-proof installation does not requi-
re a special exhaust gas duct to be used. .
Abb. 8
2
Deviations require the consent of the
manufacturer!
Fig. 9
11
1
Installation
Fig. 10
