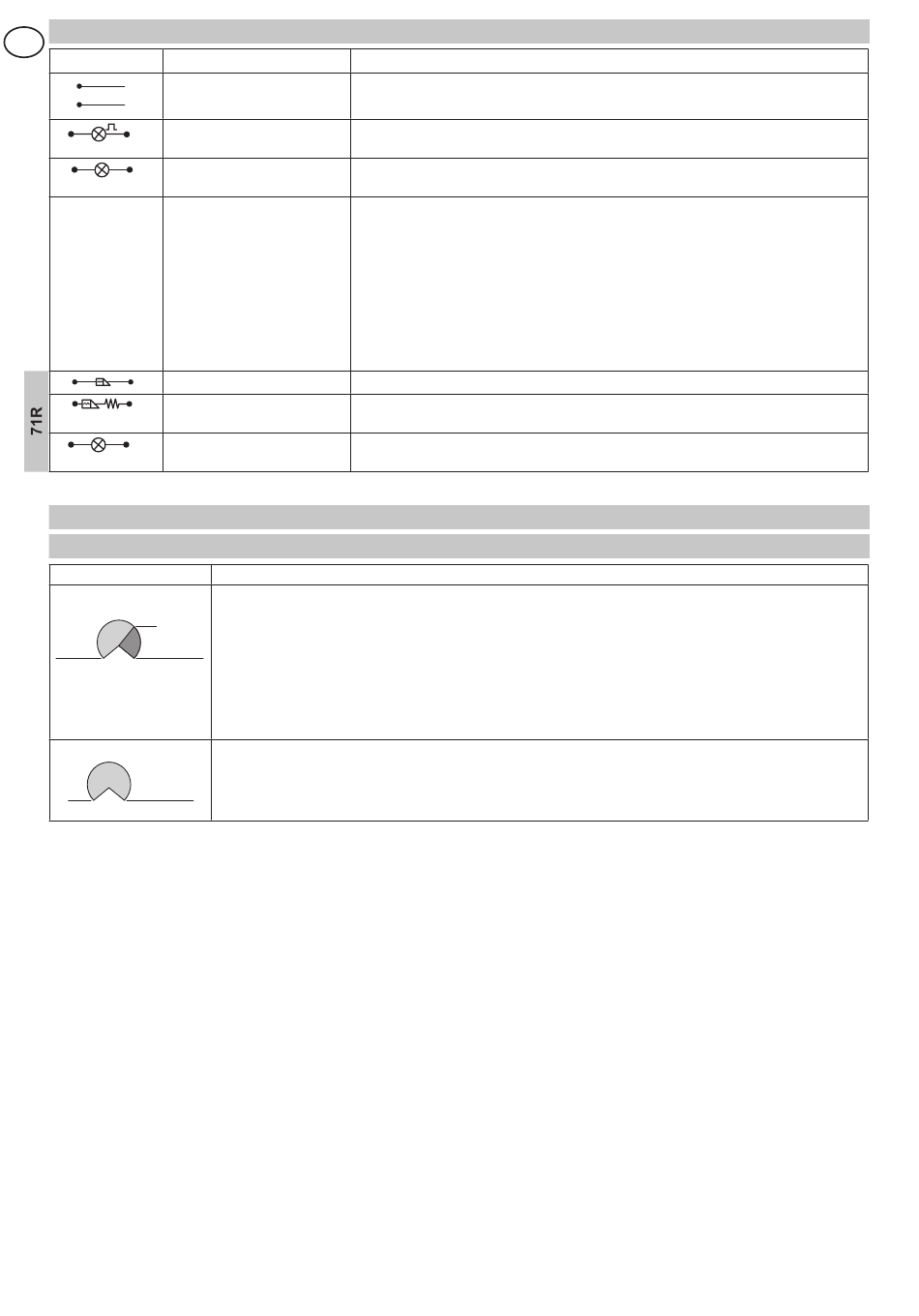

4.2 Output and accessories
GB
Output
1 +
0 -
0 14
BAT
0 15
0 15
8,2 Ω / 5 W
1 13
5. SETTINGS
5.1 Trimmer
Output
TC
120 s
MIN=0 s MAX=disabled
R1
MIN MAX=disabled
GLOBE - IP1839
Value
Accessories power supply. External accessories power supply output.
24 V= / 0,3 A (nominal)
24 V= / 0,5 A (peak)
24 V= / 30 W max. Flashing light (LAMPH). It is activated both on opening and on closing.
24 V= / 25 W Courtesy light. It is activated for 3 minutes on every opening and closing com-
mand.
Battery operation. An optional battery kit is available (BATK1). With power supply
on, the batteries are kept charged. Without power supply, the panel is powered
by the batteries until power returns or until battery power falls below the safety
threshold. In this latter case, the control panel goes off.
Attention: to allow recharging, the batteries kit must always be connected to the
control panel. Periodically, verify the battery efficiency.
Note: the operating temperature of the rechargeable batteries is +5°C/+40°C
approximately. To ensure proper battery operation rooms should be air-
conditioned.
24 V= / 1,2 A max Electric lock. It is avtivated at each opening command given from closed door.
12 V / 15 W Electric lock. With a 12 V electric lock, connect the 8,2 Ω / 5 W resistor. It is
activated at each opening command given from closed door.
24 V= / 3 W Open door light (analogic output). Light comes on and only goes off when door
is closed.
Automatic closing time. From 0 to 120 s, with TC<MAX.
With TC=MAX automatic closing is disabled.
The count starts with door stopped for time set with TC.
After the intervention of a safety (1-8), the countdown begins with the open door and lasts for the whole
time set with TC.
With TC=MAX or contact 1-9 open, automatic closing is disabled.
If disabled with 1-9, automatic closing is re-enabled, once the contact 1-9 has been closed again, only
after a control 1-5 or a remote control.
Obstacle thrust adjustment. The control panel is equipped with a safety device that stops the opening
operation and stops and inverts the closing operation in the presence of an obstacle.
With R1=MIN there is maximum obstacle sensitivity (minimum thrust).
With R1=MAX the detection function is deactivated (maximum thrust).
Description
Description
