ASSEMBLY
INSTALLING END CAPS

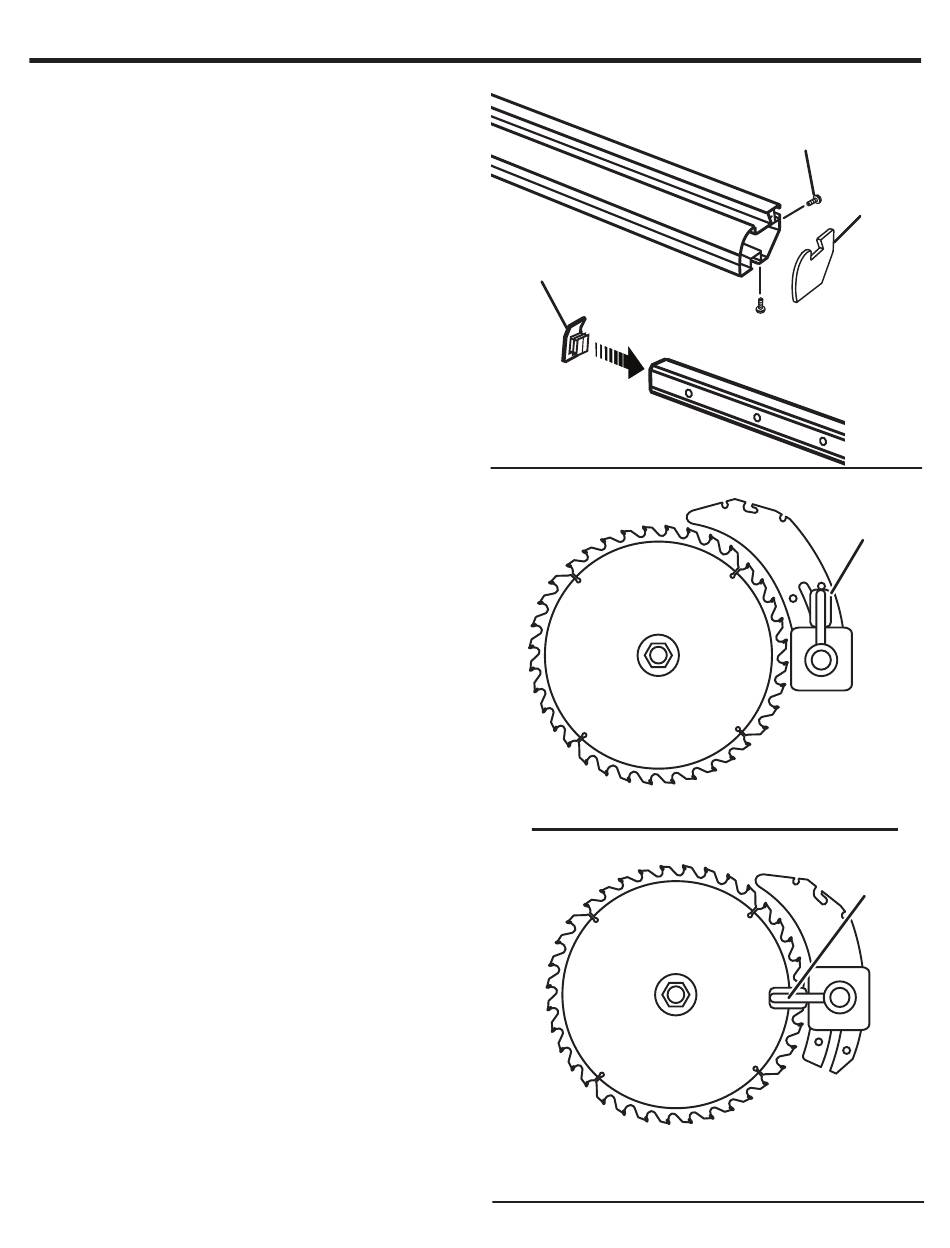

See Figure 35.
Align the end caps of the front rail to the end of the rail.

Secure using self-tapping pan head screw (M4) in each

hole using a Phillips screwdriver.
Push rear rail end caps into position at each end of the

rail.
TO CHANGE RIVING KNIFE POSITIONS
See Figure 36.
This saw is shipped with a riving knife that should be placed
in the "down" position for non-through cutting and must be
placed in the "up" position for all other cutting operations.
 Unplug the saw.
To place in the "up" position for all through cutting:
 Remove the throat plate.
 Raise the saw blade by turning the height adjusting
handwheel clockwise.
 Unlock the release lever by pulling it up.
 Grasp the riving knife and pull it towards the right side of
the saw to release the riving knife from the spring-loaded
riving clamp.
 Pull the riving knife up until the internal pins are engaged
and the riving knife is above the saw blade.
 Lock the release lever by pushing the lever down.
 Reinstall the throat plate.
To place riving knife in "down" position for all non-
through cutting:
 Remove the throat plate.
 Raise the saw blade by turning the height adjusting
handwheel clockwise.
 Unlock the release lever by pulling it up.
 Push the riving knife down until it is below the saw blade.
 Lock the release lever by pushing the lever down.
 Reinstall the throat plate.
REAR RAIL
END CAP
IN "UP" POSITION FOR THROUGH CUTTING
IN "DOWN" POSITION FOR NON-THROUGH CUTTING
25 - English
SCREWS
FRONT RAIL
END CAP
Fig. 35
RELEASE
LEVER
(UNLOCKED)
RELEASE
LEVER
(LOCKED)
Fig. 36
